Introduction
In modern packaging, seal integrity, hygiene, and speed are crucial. The Sonic Industries FR900 Horizontal Continuous Band Sealer (SS Horizontal) provides a reliable and high-performance solution for industrial sealing.
Its stainless steel construction ensures corrosion resistance, cleanliness, and durability, making it suitable for food, pharma, cosmetic, and chemical applications. The FR900 SS Horizontal Sealer delivers airtight, leak-proof, and uniform seals for plastic, laminated, and foil pouches, helping manufacturers improve product quality and shelf life.
Key Features
-
Heavy-Duty Stainless Steel Horizontal Body: Corrosion-resistant, hygienic, and durable.
-
Continuous Band Sealing: Ideal for high-volume production lines.
-
Adjustable Temperature Control: Seal different pouch materials and thicknesses.
-
Variable Conveyor Speed: Control pouch transport for consistent sealing.
-
Leak-Proof Seals: Ensures airtight packaging every time.
-
Compact & Robust Design: Fits into industrial production floors efficiently.
-
User-Friendly Interface: Easy to operate with minimal training.
-
Low Maintenance: Designed for long-term industrial usage.

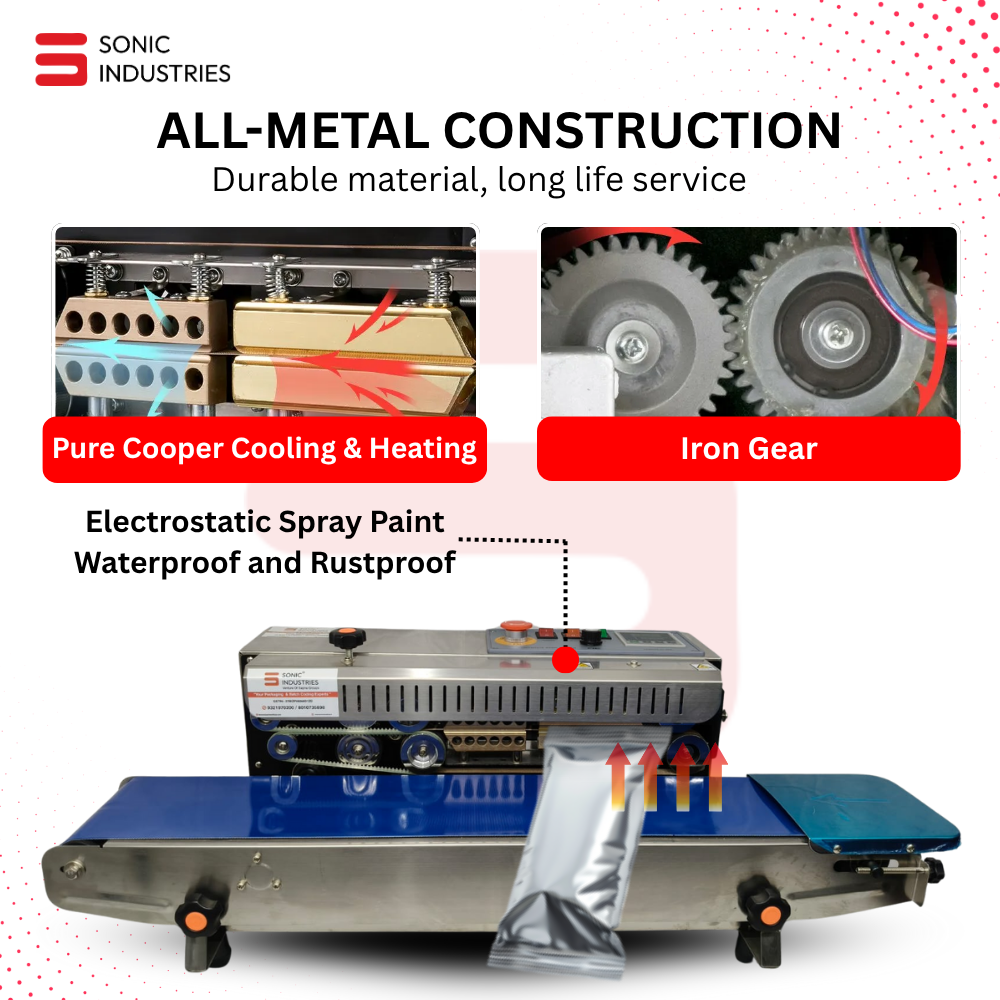

Construction & Material
-
Frame: Heavy-duty stainless steel horizontal body for hygiene and durability.
-
Conveyor: Industrial-grade belt with smooth rollers.
-
Sealing Element: Teflon-coated rollers and heat-resistant belts.
-
Control Panel: Simple interface for adjusting temperature and conveyor speed.
Working Principle
-
Place a filled pouch on the conveyor belt.
-
Adjust the temperature and speed according to pouch type.
-
Heated sealing bands press the pouch mouth to form a uniform, airtight seal.
-
Conveyor moves the sealed pouch forward for collection.
-
Result: Professional-grade sealing for high-volume production.
Applications
-
Food Industry: Snacks, dry fruits, grains, coffee, tea, flour, and spices.
-
Pharmaceuticals: Tablets, capsules, powders, and herbal supplements.
-
Cosmetics: Creams, gels, lotions, and sachets.
-
Chemical Industry: Fertilizers, agrochemicals, detergents, and powders.
-
Other Industrial Use: Any pouches requiring continuous, high-quality sealing.
Operational Advantages
-
High Efficiency: Continuous sealing supports fast production rates.
-
Durable Construction: Stainless steel ensures corrosion resistance and longevity.
-
Versatile: Seals multiple pouch types and thicknesses.
-
Leak-Proof: Maintains product integrity.
-
Reduced Labor: Minimal operator involvement needed.
-
Professional Finish: Uniform seals improve packaging aesthetics.
Maintenance & Safety
Maintenance:
-
Wipe conveyor and sealing belts regularly.
-
Inspect and lubricate moving parts monthly.
-
Ensure heating elements are clean and calibrated.
Safety:
-
Overheat protection.
-
Emergency stop switch.
-
Insulated heating elements.
-
Stable SS frame prevents vibrations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FR900 Heavy Duty SS Horizontal Band Sealer |
| Body Material | Stainless Steel (SS) Horizontal |
| Sealing Width | 6–12 mm |
| Sealing Speed | 0–12 m/min (adjustable) |
| Temperature Range | 0–300°C adjustable |
| Voltage | 220V / 50Hz |
| Power | 650–800W |
| Conveyor Load | Up to 3 kg |
| Pouch Material | Plastic, Laminated, Foil |
| Orientation | Horizontal |
| Machine Weight | 30 kg |
| Dimensions | 850 x 400 x 360 mm |

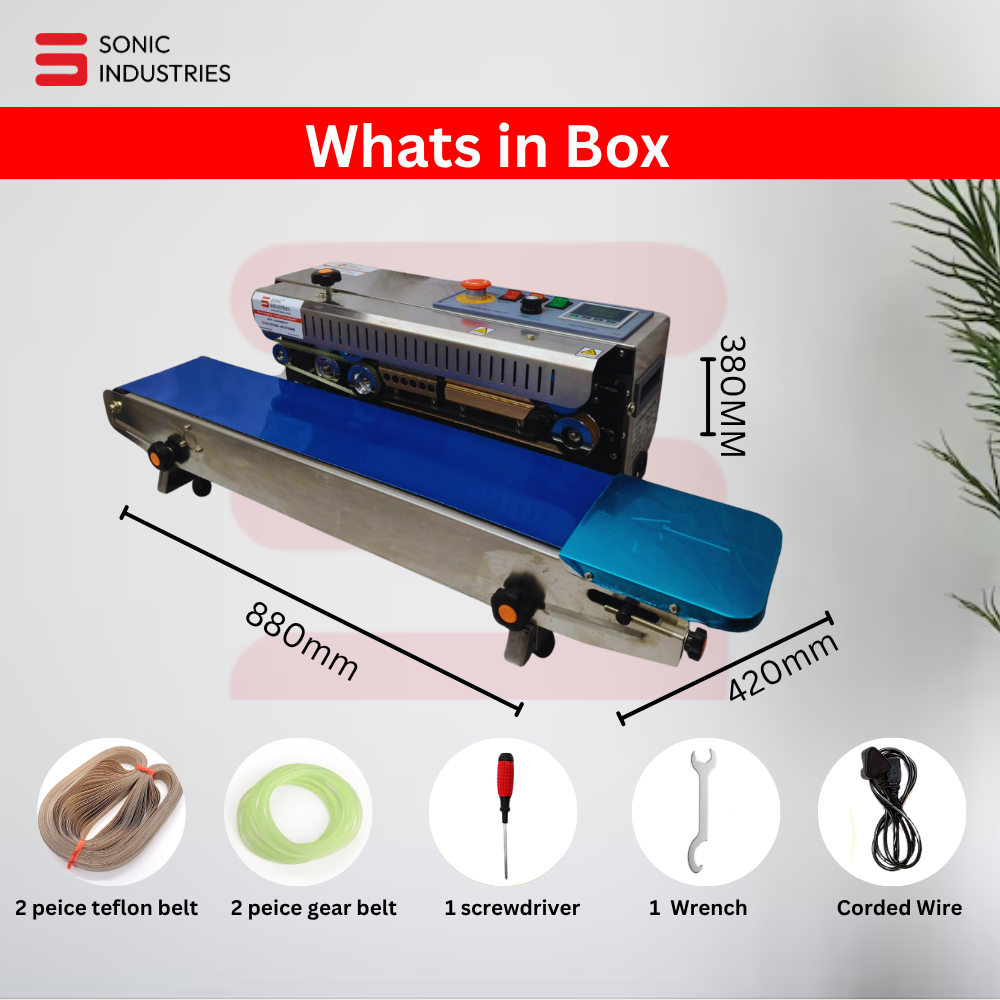

What’s in the Box
-
FR900 SS Horizontal Continuous Band Sealer
-
Conveyor Belt Assembly
-
Power Cable
-
User Manual
-
Basic Tool Kit
Why Choose Sonic Industries
-
Industry-leading engineering and durability.
-
Trusted supplier for food, pharma, cosmetic, and chemical industries.
-
Minimal maintenance, high uptime, and robust construction.
-
Expert after-sales support and spare parts availability.
Conclusion
The Sonic Industries FR900 Heavy Duty Continuous Band Sealer (SS Horizontal) is perfect for businesses seeking high-volume, hygienic, and professional sealing solutions. Its stainless steel construction, continuous operation, adjustable settings, and leak-proof seals make it an ideal investment for factories in multiple sectors.
Frequently Asked Questions (FAQs)
Q1. What types of pouches can the FR900 SS seal?
Plastic, laminated, and foil pouches of varying thicknesses.
Q2. Is it suitable for food packaging?
Yes, the SS body ensures hygienic operation for food-grade products.
Q3. Can I adjust temperature and conveyor speed?
Yes, fully adjustable for precise control over sealing quality.
Q4. Is it built for high-volume continuous operations?
Yes, it’s designed for heavy-duty industrial usage.
Q5. What is the sealing width range?
6–12 mm.
Q6. Which industries benefit from this machine?
Food, pharmaceuticals, cosmetics, chemicals, and agro-products.
Q7. How durable is the stainless steel body?
Corrosion-resistant and built for long-term industrial performance.
Q8. Is it easy to operate?
Yes, minimal training is required.
