Introduction

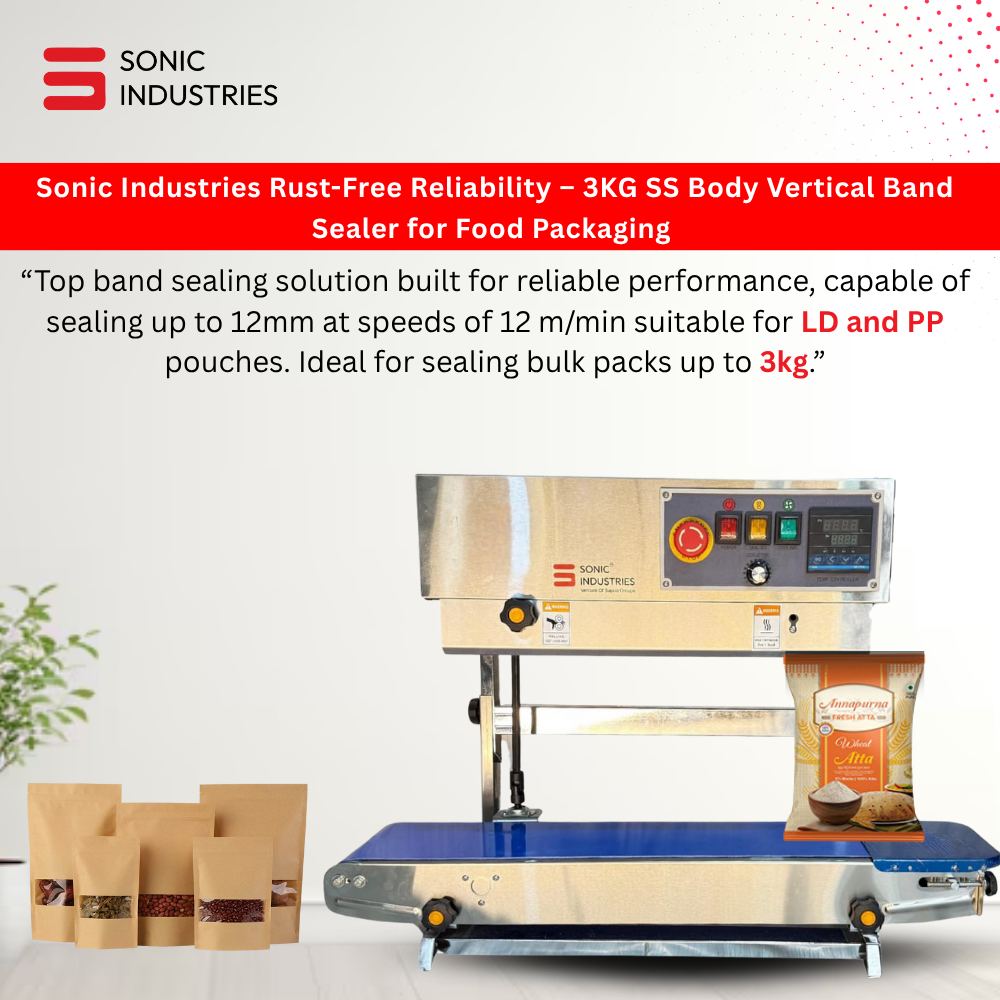

In today’s fast-paced manufacturing world, efficient and consistent packaging is vital for product preservation, shelf appeal, and distribution efficiency. The Sonic Industries FR 900 Vertical Band Sealer stands as one of the most reliable solutions for vertical sealing operations. Designed to seal various pouch types — including polyethylene, laminated, and foil pouches — it’s a versatile and powerful choice for businesses that demand high output and professional sealing quality.
Whether you’re packaging spices, powders, snacks, or liquids, this model provides the perfect sealing experience. Its vertical orientation ensures the contents remain stable during the process, preventing spillage and ensuring a perfect seal every time.

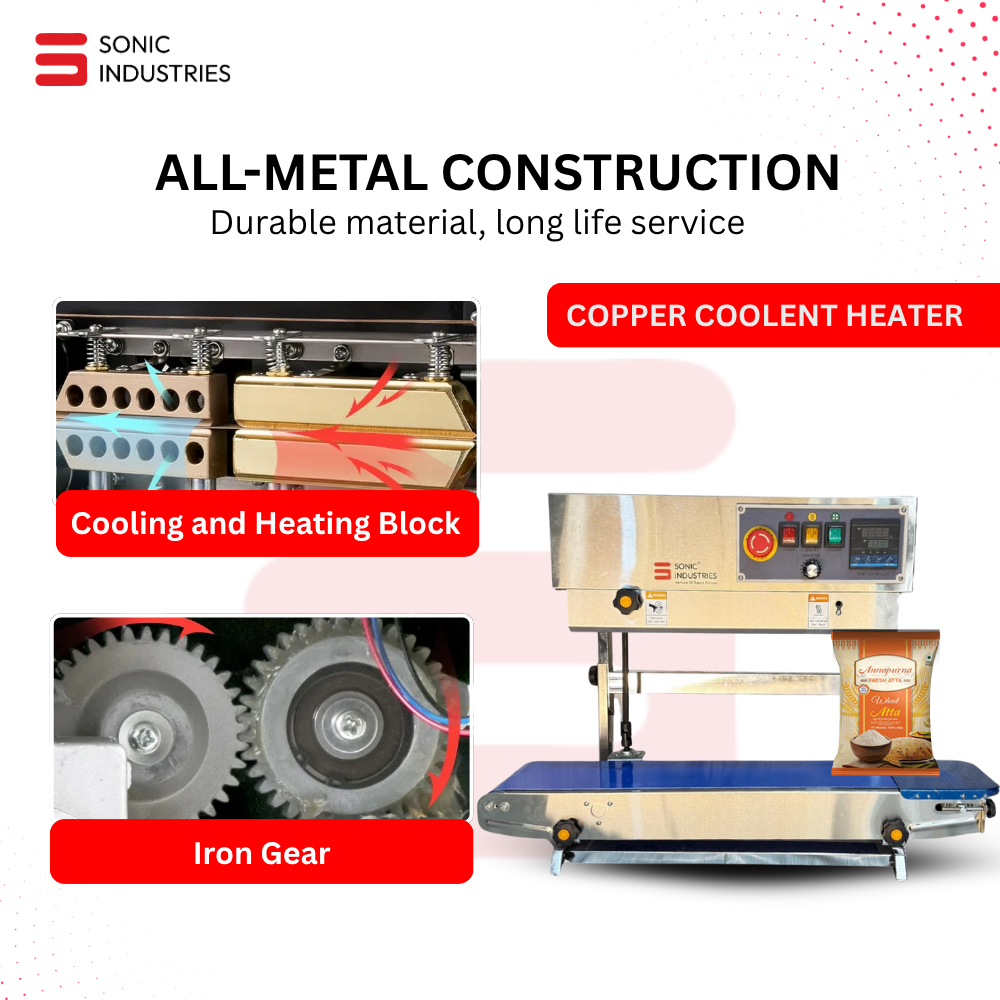

Design & Build Quality

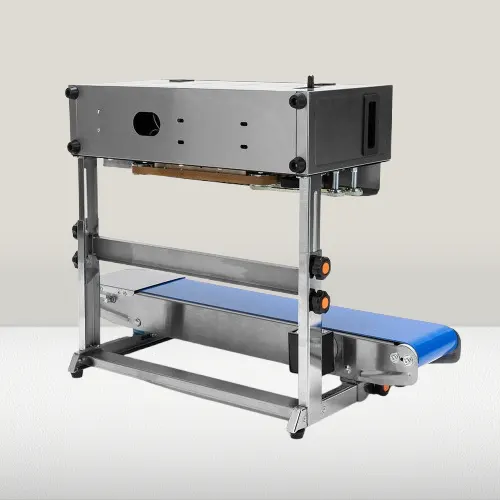

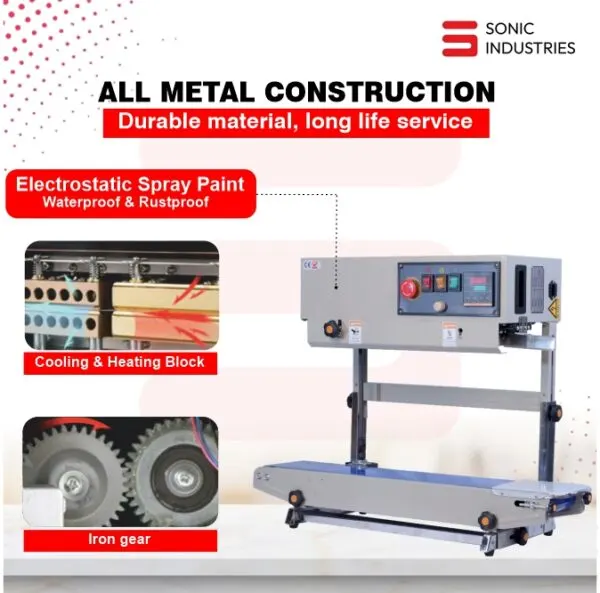

Built with industrial-grade metal housing, the FR 900 ensures durability and performance even under continuous operation. Its compact structure accommodates small workspaces while delivering commercial-grade results.
Key structural elements include:
-
Reinforced conveyor platform for stability.
-
Precision-engineered sealing belts for smooth, frictionless sealing.
-
High-efficiency heating elements for consistent temperature.
-
Sturdy vertical alignment mechanism that ensures pouch stability.
This model is ideal for vertical sealing where the product cannot lie flat — such as liquids, viscous substances, or free-flowing powders.

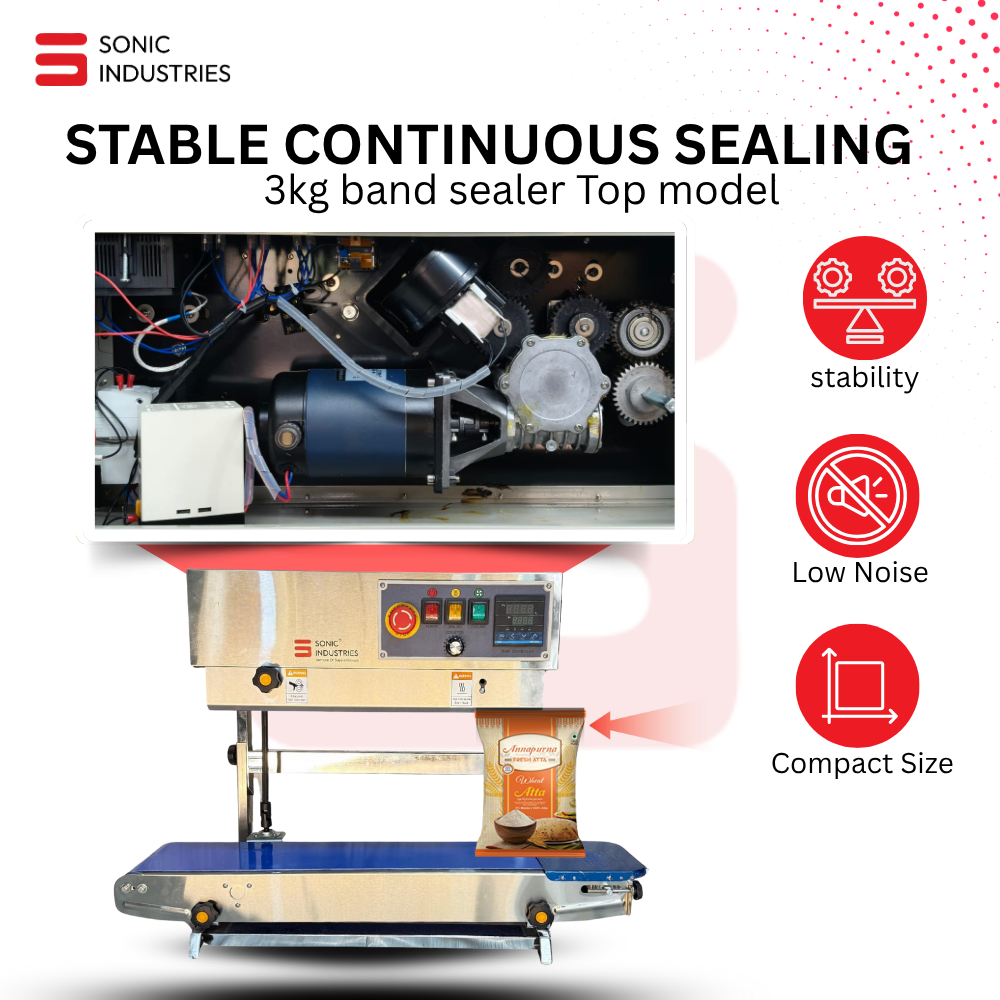

Working Principle
The working mechanism of the FR 900 Vertical Band Sealer is both efficient and simple:
-
The filled pouches are placed vertically on the moving conveyor.
-
The machine applies controlled heat through Teflon-coated sealing bands.
-
Pressure is applied to melt and fuse the pouch layers together.
-
The sealed pouch is then released from the conveyor, ready for packing or shipment.
This process delivers strong, uniform, and tamper-proof seals, ideal for professional packaging requirements.
Key Features
-
Continuous Vertical Sealing: Perfect for sealing pouches containing liquids or powders.
-
Adjustable Temperature Control: Ideal for various pouch materials like LDPE, HDPE, and laminates.
-
Variable Conveyor Speed: Maintains efficiency across different pouch sizes and thicknesses.
-
Compact & Portable Design: Easy to install and relocate in production setups.
-
Energy Efficient: Designed to optimize power consumption.
-
Low Maintenance: Teflon-coated belts minimize residue and wear.
-
Safety Features: Overheat protection and power surge safeguards included.
-
Professional Sealing Finish: Clean, smooth, and uniform seal edges enhance brand presentation.
Technical Benefits
-
Improved Shelf Life: Airtight seals prevent moisture, air, and contaminants.
-
Increased Productivity: Continuous operation enhances output capacity.
-
Material Compatibility: Works with multiple pouch types and materials.
-
Low Downtime: Easy maintenance ensures uninterrupted operation.
-
Cost Savings: Reduces manual labor and packaging errors.
-
Precision Temperature Control: Prevents burn marks and seal inconsistencies.
Applications
The FR 900 Top Model Vertical Band Sealer is widely used across multiple sectors, including:
-
Food Industry: Packaging spices, grains, snacks, coffee, and sauces.
-
Pharmaceutical Industry: Sealing medicinal powders and liquid syrups.
-
Chemical Industry: Packaging detergents, fertilizers, adhesives, and more.
-
Agriculture: Suitable for seed, pesticide, and nutrient packaging.
-
Cosmetics: For lotions, gels, and creams in laminated or foil pouches.
Its versatility and durable construction make it a must-have for small, medium, and large production units.

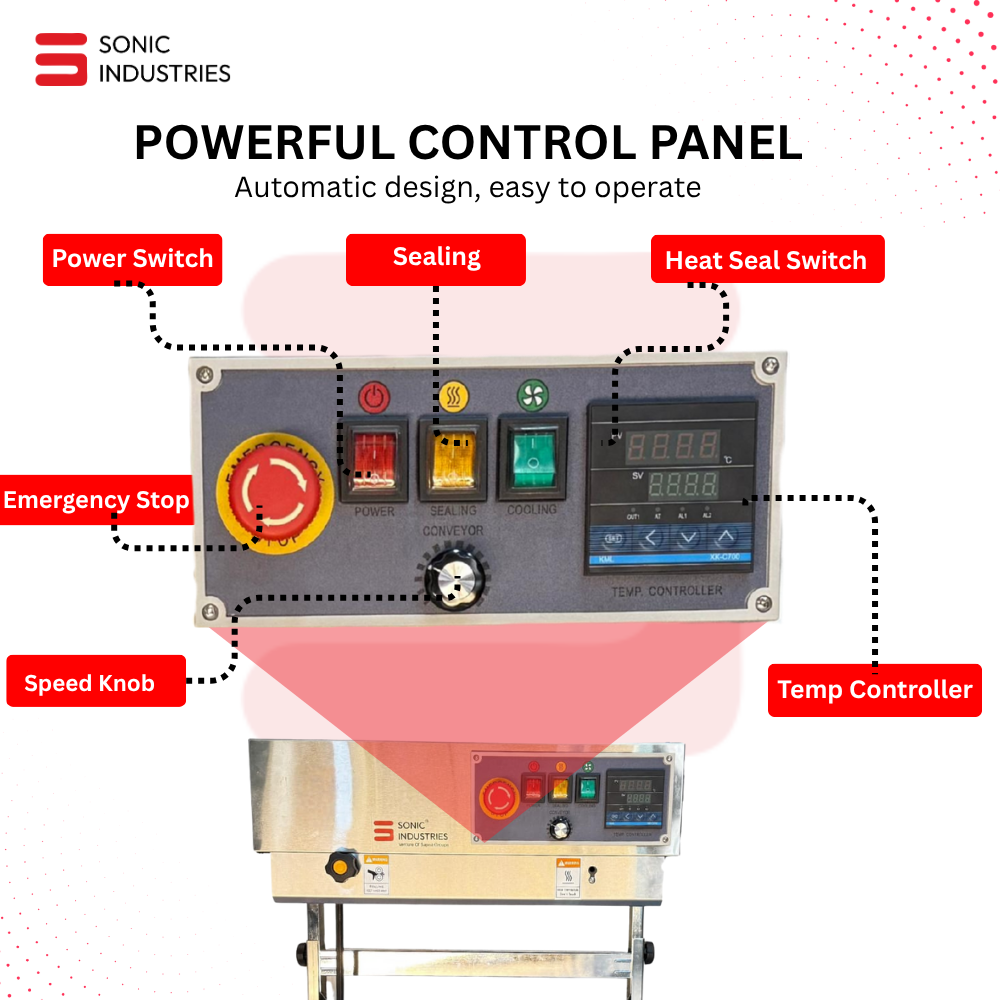

Control and Operation
The control panel is designed for user-friendliness and precision.
Operators can easily:
-
Adjust temperature for specific pouch types.
-
Set conveyor speed according to pouch load.
-
Monitor sealing quality with indicator lights.
-
Start or stop the sealing process with one-touch control.
No complex setup or calibration is required — it’s truly a plug-and-play machine.
Technical Specifications
| Specification | Details |
|---|---|

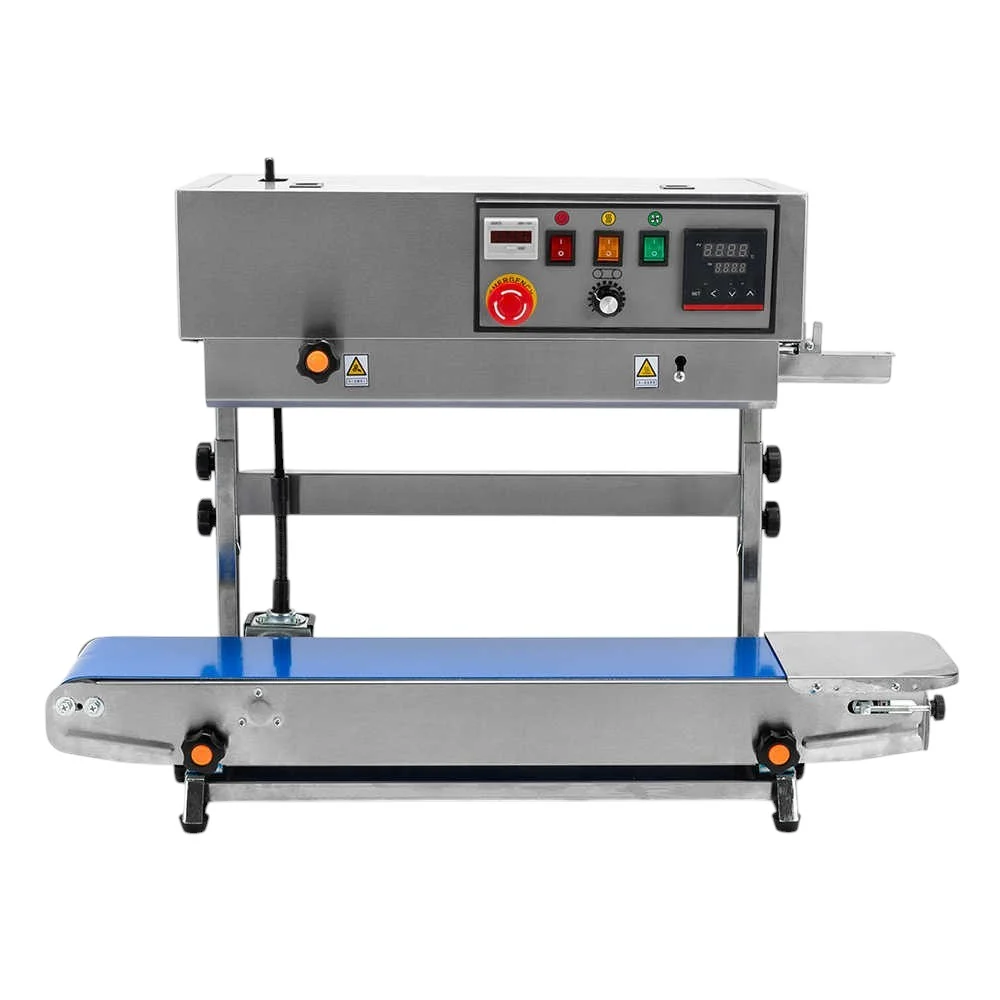

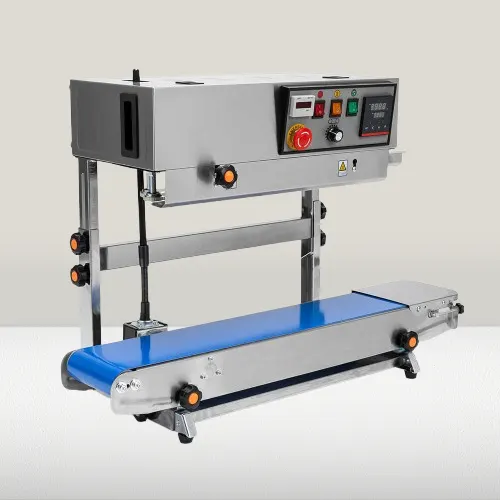

| Model | FR 900 Vertical Band Sealer |
| Orientation | Vertical |
| Sealing Speed | 0–12 meters/min (Adjustable) |
| Sealing Width | 8mm – 10mm |
| Temperature Range | 0–300°C |
| Voltage | 220V / 50Hz |
| Power Consumption | Approx. 650W – 800W |
| Body Material | Mild Steel / Powder Coated |
| Conveyor Load Capacity | Up to 3 kg |
| Dimensions (LxWxH) | 840 × 380 × 450 mm |
| Weight | Approx. 30 kg |
| Pouch Material | LDPE, HDPE, Foil Laminates, Multi-Layer Films |
Maintenance & Safety Guidelines
Maintaining your FR 900 Band Sealer ensures long-term reliability:
-
Keep sealing belts clean and residue-free.
-
Inspect the heating elements periodically.
-
Avoid overloading the conveyor.
-
Calibrate temperature sensors monthly.
-
Ensure ventilation during operation.
Safety features such as emergency stop, overheat protection, and auto-cut thermal control safeguard both the operator and machine.
Advantages of Vertical Sealing
Vertical sealing machines like the FR 900 are especially beneficial for sealing:
-
Liquid-based products: Prevent leakage during sealing.
-
Free-flowing powders: Maintain uniform filling and shape.
-
Heavier pouches: Prevent distortion during sealing.
The vertical orientation ensures precision sealing while keeping the product stable and clean.
Why Choose Sonic Industries
Sonic Industries has built a reputation for quality, durability, and innovation in packaging machinery. Every unit is tested under real-world industrial conditions before dispatch, ensuring you receive a machine ready for production.
With nationwide support, readily available spares, and customization options, Sonic Industries is your trusted partner in efficient packaging automation.

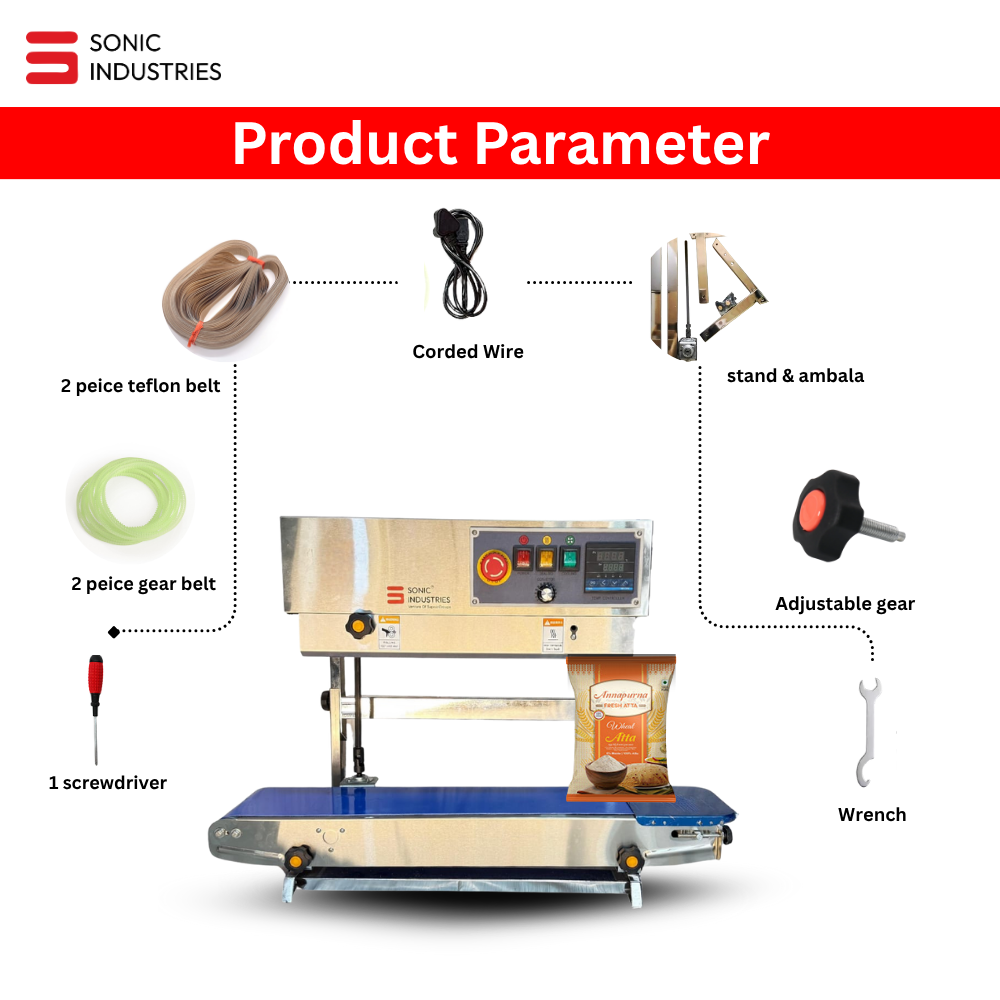

What’s in the Box
-
FR 900 Top Model Vertical Band Sealer
-
Power Cable
-
Conveyor Belt
-
Spare Teflon Sealing Belt
-
Tool Kit
-
User Manual
Frequently Asked Questions (FAQs)
Q1. What is the use of the FR 900 Vertical Band Sealer?
It’s designed for continuous sealing of filled pouches, especially those containing liquids, powders, or semi-solids.
Q2. Can this machine seal laminated or foil pouches?
Yes, it can seal various materials including laminated, aluminum foil, and polyethylene pouches.
Q3. What is the difference between vertical and horizontal sealing?
Vertical sealing is best for liquid or powder pouches, while horizontal is ideal for solid, flat items.
Q4. How many pouches can it seal per minute?
Depending on size and material, it can seal up to 12 meters of pouches per minute.
Q5. Is the FR 900 model suitable for continuous operation?
Yes, it’s built for 24/7 use with proper maintenance and ventilation.
Q6. What is the maximum pouch load on the conveyor?
It supports up to 5 kilograms per batch, depending on pouch dimensions.
Q7. Does Sonic Industries provide installation or training?
Yes, Sonic provides both online and in-person setup guidance for easy installation.
Q8. Can I adjust the sealing temperature and speed?
Yes, both parameters are fully adjustable via the control panel.
