25kg Continuous Vertical Band Sealer – Heavy-Duty Vertical Pouch Sealing Machine for Bulk Packaging | Sonic Industries
Introduction

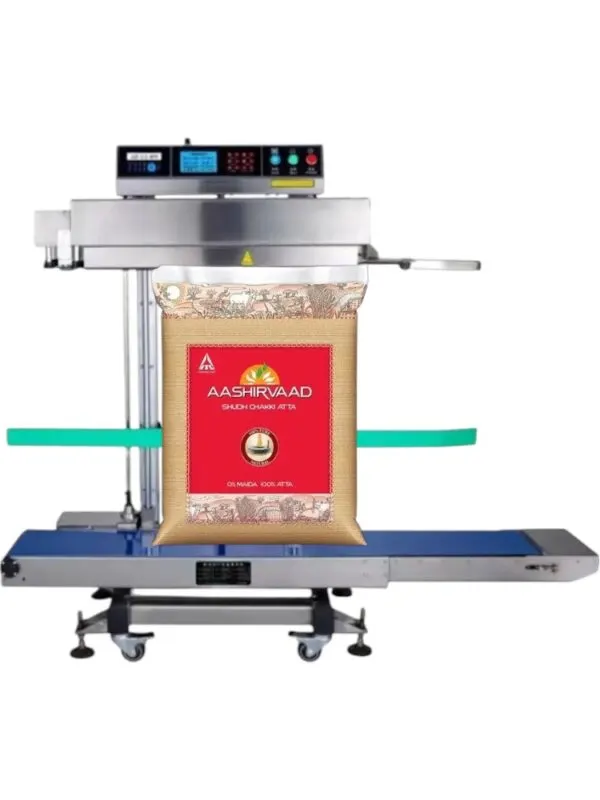

When packaging operations demand speed, precision, and the ability to seal large and heavy pouches, only an industrial-grade solution will do. Meet the 25kg Continuous Vertical Band Sealer from Sonic Industries—a high-performance sealing machine designed specifically for sealing bulk vertical pouches weighing up to 25 kilograms.
Built with rugged engineering, high-torque conveyor systems, and heat precision technology, this machine is tailored for industries that deal with fertilizers, chemicals, agro products, and other heavy-duty items. Whether you are a fertilizer manufacturer, chemical repacker, or grains exporter, the 25kg Continuous Vertical Band Sealer is the final word in durability and performance.
Key Highlights
1. Heavy Pouch Handling – Up to 25kg
Capable of sealing industrial and commercial bags up to 25kg, ideal for bulk packaging of raw materials and processed goods.
2. Heavy-Duty Conveyor System
Powered by high-capacity motors and reinforced belts, the machine ensures smooth movement of bulky and large pouches without tilting or slipping.
3. Vertical Sealing Design
The vertical configuration is essential for powdery, granular, or semi-liquid contents, ensuring leakage-free sealing and better pouch positioning.
4. High-Temperature PID Controller
Digital temperature control allows accurate and consistent heat application suitable for sealing thick or multilayer pouches.
5. Optional Nitrogen Flushing
Built-in provisions allow for integrated nitrogen flushing, extending product shelf life for sensitive items such as agrochemicals or food grains.
6. Batch Coding Integration
Supports TIJ printers, emboss coders, or ink rollers to enable inline printing of Batch No, MRP, Expiry, etc.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 25kg Continuous Vertical Band Sealer |
| Orientation | Vertical |
| Maximum Pouch Load | 25kg |
| Conveyor Capacity | Up to 60kg (cumulative) |
| Conveyor Motor | High-torque motor (0.5–1 HP) |
| Sealing Speed | 0–12 m/min (adjustable) |
| Sealing Width | 10mm / 12mm / 15mm |
| Temperature Range | 0–300°C (PID Digital Control) |
| Film Compatibility | HDPE, LDPE, PP, PE, PET-Poly, Foil Laminates, Kraft Paper |
| Voltage | 220V / 440V AC, 50Hz |
| Power Consumption | 1.2kW – 1.5kW |
| Machine Dimensions (L×W×H) | Approx. 1300mm x 600mm x 1450mm |
| Machine Weight | 120–150 kg approx. |
| Material Construction | MS Powder-Coated / SS-304 (Optional) |
| Batch Coding | Optional TIJ, Ink Roller, or Emboss |
| Nitrogen Flushing | Optional Attachment |
| Adjustable Head Height | Yes |
| Footprint | Free-standing, heavy-duty base |
Top Applications
1. Agriculture & Agro-Chemical Industry
-
Seeds, grains, fertilizers, soil additives, micronutrients
-
Urea, DAP, NPK blends, bio-fertilizers
2. Chemical Industry
-
Powder chemicals, detergents, cement, silica, pigments
-
Paint powder, gypsum, dolomite, minerals
3. Industrial Raw Materials
-
Resin granules, plastic powders, cementitious goods
-
Bentonite, activated carbon, aluminum silicate
4. Food & Beverage Bulk Packs
-
Rice, atta, wheat, maize, pulses in large export pouches
-
Coffee beans, salt, sugar, spices in export quantities

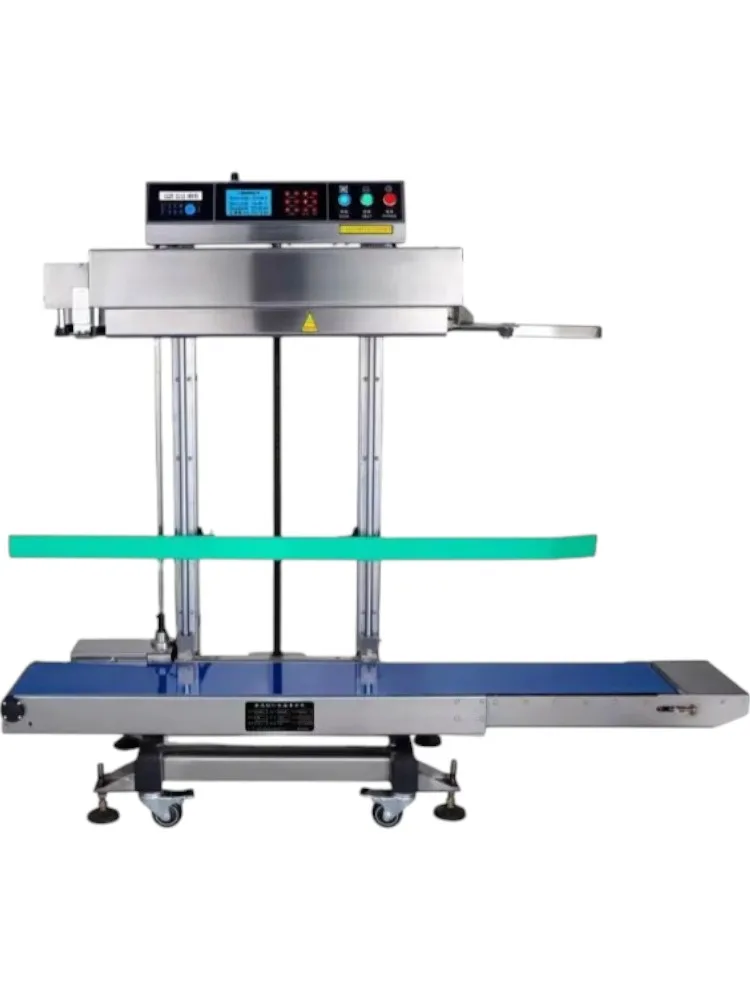

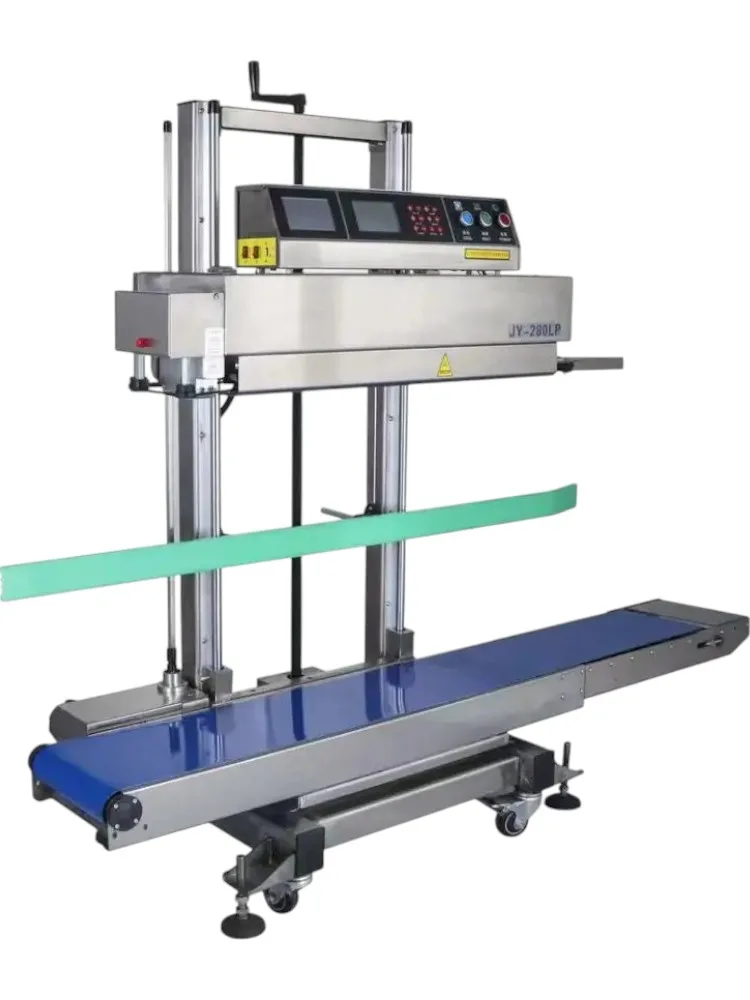

Machine Design Overview
| Section | Description |
|---|---|
| Conveyor Section | Reinforced with metal slats/rubber belts for supporting up to 25kg bags |
| Vertical Sealing Head | Mounted on an adjustable pillar, seal head can be raised/lowered as required |
| Heating Elements | Dual-side heating system with PID-controlled ceramic heaters |
| Cooling Mechanism | Air-cooled sealing area with metallic heat dissipators |
| Control Panel | User-friendly panel with PID display, conveyor control, and temperature knobs |
| Batch Coding Slot | Mount point for optional emboss / TIJ coder |
| Nitrogen Flush Point | Optional nozzle integration (regulator controlled) |
Features & Benefits
| Feature | Benefit |
|---|---|
| 25kg Load Capacity | Supports bulk packaging without pouch failure or slipping |
| Industrial Conveyor Motor | Handles sustained operations without overheating |
| PID Temperature Control | Maintains consistent seal strength across large pouches |
| Film Versatility | Seals multilayer industrial pouches (HDPE, laminated, foil) |
| Height Adjustable Seal Head | Accommodates various pouch sizes and bag heights |
| Optional Gas Flushing | Ideal for food and chemical stability, extends shelf life |
| Compatible With Coders | Inline date, MRP, and batch printing improves traceability |
| Rugged MS/SS Body | Built for industrial wear and tear, with optional SS for hygiene |
| Maintenance Friendly | Easy access panels and replaceable parts |
Operating Instructions
-
Setup & Power On
Place the machine on a level surface. Connect power (single-phase or 3-phase depending on model). -
Adjust Sealing Head Height
Set the sealing head based on the height of the pouch (adjustable with lock knob). -
Set Temperature and Speed
Use the PID controller to set temperature (180–250°C typical) and conveyor speed. -
Place Pouch on Conveyor
Load a 25kg bag vertically on the conveyor with its open mouth aligned with the sealing jaws. -
Sealing Begins
Conveyor drives the pouch through the heated jaws, fusing the seal with uniform pressure. -
Batch Coding
Optional coding system prints details during the sealing pass. -
Output Collection
Sealed pouches exit the machine ready for shipping, storage, or secondary packaging.
Safety & Best Practices
-
Do not exceed 25kg pouch load to avoid conveyor strain
-
Always power off before maintenance
-
Ensure proper grounding for safe electrical operation
-
Keep sealing area clean to avoid contamination or seal failure
-
Use appropriate PPE when operating high-heat applications
Customization Options
| Option | Availability |
|---|---|
| Body Type | MS Powder-Coated (Standard), SS-304 (Optional) |
| Coding System | Emboss / Ink Roller / TIJ Printer |
| Nitrogen Flushing | Yes (With regulator and food-grade nozzle) |
| Sealing Width | 10mm / 12mm / 15mm |
| Motor Type | Single Phase / Three Phase (Optional) |
| Pouch Guide Systems | Roller Support Arms / Adjustable Side Rails |
Troubleshooting Common Issues
| Issue | Likely Cause | Solution |
|---|---|---|
| Seal not formed properly | Low temp or poor pressure | Increase temperature or check pressure belts |
| Conveyor not moving | Jammed drive or overload | Clear jam and check motor circuit |
| Pouch slipping off | Poor alignment or excessive load | Realign pouch and support using guides |
| Belt wear or damage | Friction from overloaded bags | Replace belts, reduce conveyor load |
| Batch coder not printing | Empty ink or misalignment | Refill or adjust coder head |
Industries That Use This Machine
-
Fertilizer Manufacturing Plants
-
Chemical & Cement Packaging Units
-
Seed Processing & Agricultural Input Suppliers
-
Animal Feed & Pet Food Producers
-
Export Houses dealing with 10kg+ pouches
-
Bulk Food Processors (Salt, Sugar, Pulses)
