FR-400 Mini Band Sealer – Compact Horizontal Sealing Machine for Lightweight Pouches | Sonic Industries
Introduction
Introducing the FR-400 Mini Band Sealer by Sonic Industries, a powerful and compact solution tailored for businesses that demand efficiency, portability, and affordability in their pouch sealing operations. Specially designed for lightweight packaging, this model is ideal for small businesses, local manufacturers, Kirana stores, laboratories, retail units, and startups that handle daily sealing of pouches containing dry goods, powders, and consumer products.
The FR-400 Mini Band Sealer offers a horizontal sealing orientation, making it perfect for premade flat and pillow pouches. Despite its minimal size, this sealer maintains industrial sealing quality, delivering clean, consistent, and tamper-proof seals on poly and laminated films.
Key Highlights
Lightweight and Portable
Ideal for Sealing Up to 1kg Pouches
Horizontal Operation for Dry Contents
Temperature and Speed Control
Low Power Consumption
Compatible with Multiple Film Types
Maintenance-Friendly Build
Highly Cost-Effective for Entry-Level Use
Applications
Retail & FMCG Packaging
-
Masalas, snacks, namkeen
-
Dry fruits, biscuits, sweets
-
Cosmetic pouches, facial powders
Pharmaceutical & Laboratory Use
-
Powdered supplements, churna
-
Capsule sachets, sample kits
Food Industry
-
Seeds, pulses, grains
-
Sugar, salt, spices
-
Tea, coffee powder
Hardware & Miscellaneous
-
Screws, nails, small tools
-
Electronics accessories, wires
-
Button pouches, craft supplies
Technical Specifications
| Parameter | Details |
|---|---|
| Model | FR-400 Mini Band Sealer |
| Orientation | Horizontal |
| Max Load per Pouch | Up to 1kg |
| Conveyor Load Capacity | Up to 5kg |
| Sealing Speed | 0–12 meters/min (adjustable) |
| Sealing Width | 6mm – 10mm |
| Temperature Range | 0°C – 300°C (PID Digital Control) |
| Voltage | 220V / 50Hz (Single Phase) |
| Power Consumption | 500W – 650W |
| Machine Dimensions | 800mm x 350mm x 450mm (approx.) |
| Weight | 18–22 kg |
| Body Material | MS (Powder-Coated), SS optional |
| Film Compatibility | PE, BOPP, PET-Poly, Foil, Kraft, Laminates |
| Batch Coding | Optional (Ink Roller or Emboss Coding) |
Product Features
1. Compact Footprint
The FR-400 fits perfectly on a tabletop or counter, making it suitable for shops, kiosks, and portable setups. Ideal for space-constrained environments.
2. Horizontal Band Sealing
The horizontal orientation enables smooth sealing of non-leaking, dry-filled pouches—great for food and retail goods.
3. Adjustable Speed & Heat Settings
Using the integrated control knobs and PID controller, users can fine-tune the speed and temperature for optimal sealing of different pouch materials and thicknesses.
4. Affordable & Efficient
A low-cost investment with low energy usage, perfect for daily sealing volumes ranging from 200 to 1000 pouches.
5. Clean & Consistent Seals
Thanks to its dual heating elements and Teflon sealing bands, the FR-400 ensures uniform seal quality without burn marks or seal damage.
Benefits at a Glance
| Feature | Benefit |
|---|---|
| Lightweight | Easily movable and ideal for small shops |
| Energy-Efficient | Uses minimal electricity during daily operation |
| Quick Heat-Up | Reduces startup time, boosting productivity |
| Durable Build | Rust-resistant powder-coated MS ensures longer lifespan |
| Intuitive Operation | Easy-to-use control panel – no technical knowledge needed |
| Professional Output | Delivers polished and reliable sealing quality for retail sale |
| Customization Available | Optional coding, stand, and SS body available for special needs |

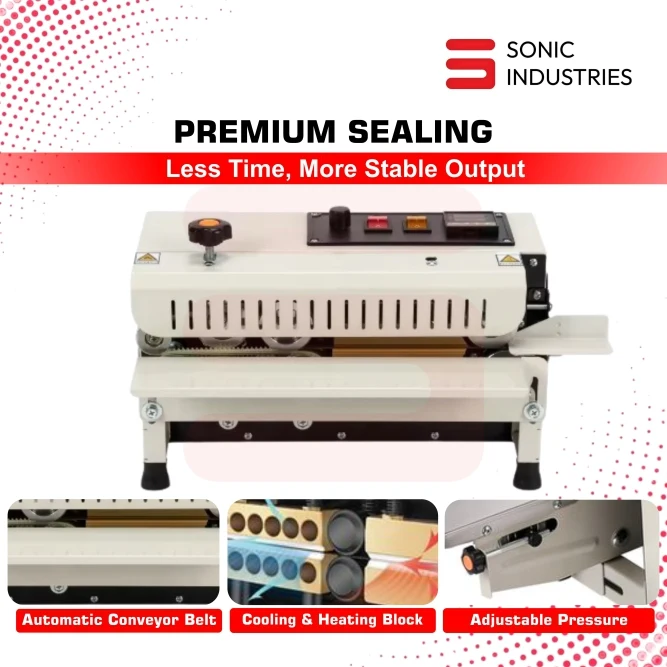

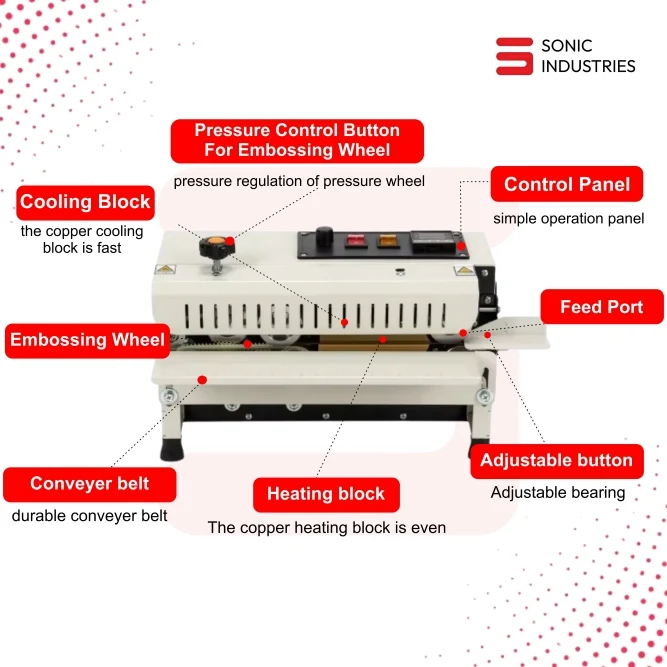

Component Overview
| Component | Function |
|---|---|
| Sealing Unit | Applies heat via Teflon-coated elements to seal pouch films |
| Conveyor Belt | Moves pouches horizontally through the sealing zone |

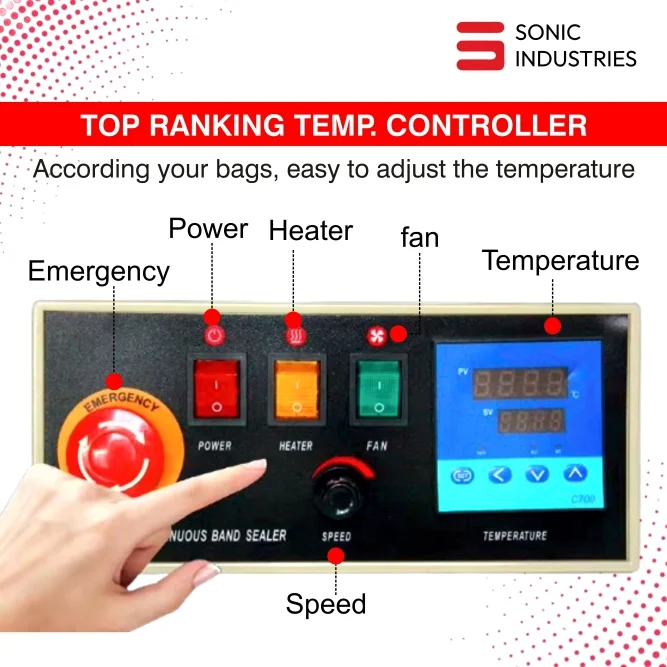

| Control Panel | On/off switch, temp knob, speed control |
| Heating System | PID-regulated heaters ensure stable temperature |
| Cooling Fan | Solidifies the seal and prevents melting of outer pouch surface |
| Optional Coder Bracket | For attaching emboss or ink roller coder |
How to Operate
-
Power On
Plug in the FR-400 and turn on the main switch. Wait for the heating element to reach desired temperature. -
Set Temperature & Speed
Choose appropriate heat settings depending on film type (typically 160–250°C) and desired speed. -
Feed Pouch Horizontally
Place filled pouch mouth on the conveyor; the machine grips and pulls it toward the sealing jaws. -
Sealing in Progress
The pouch passes through the heated bands and is sealed shut. Cooling fan assists in setting the seal. -
Collect Sealed Product
Finished pouches come out perfectly sealed—ready for dispatch, storage, or retail shelf.
Common Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Pouch not sealing | Low temp or wrong film | Increase temperature or use compatible film |
| Burned seal | Temperature too high | Lower temperature and reduce speed |
| Conveyor not moving | Loose belt or motor issue | Check belt tension or reset motor |
| Seal wrinkled or uneven | Film not aligned or pouch overloaded | Feed pouch straight and within weight limit |
| Batch coder not printing (if used) | Ink dry or head misaligned | Replace ink or realign coder head |
