GLF-40 Mini Band Sealer – Compact Pouch Sealing Solution for Lightweight Packaging | Sonic Industries
Introduction
In industries where space is limited and precision is paramount, compact machines that deliver industrial-grade performance are essential. The GLF-40 Mini Band Sealer by Sonic Industries is engineered for businesses and operators who need an efficient, portable, and reliable sealing solution for lightweight and small-to-medium-sized pouches.
Compact in size but powerful in performance, this mini band sealer is ideal for sealing pouches up to 1 kg, making it perfect for grocery stores, small packaging units, startups, laboratories, food stalls, seed producers, and home-based businesses. Whether you’re sealing food packets, pharmaceuticals, cosmetic powders, or retail items, the GLF-40 is the versatile sealing machine that fits neatly on your tabletop and into your production budget.
Product Highlights
1. Mini & Mighty Design
Despite its small footprint, the GLF-40 Mini Band Sealer delivers continuous, consistent sealing for various laminated and poly pouches. Built with precision and powered by a robust motor, it performs flawlessly in environments where space and mobility are key.
2. Suitable for Pouches Up to 1kg
Efficiently seals laminated, foil, plastic, and poly bags used in packaging spices, powders, seeds, bakery items, snacks, pharma powders, cosmetic goods, and more.
3. User-Friendly Interface
With simple temperature and speed controls, even beginners can operate the GLF-40 with minimal training.
4. Continuous Sealing Technology
Ideal for high-output operations that require non-stop sealing throughout the day. The conveyor automatically carries pouches through the sealing jaws for consistent, strong seals.
5. Economical & Efficient
Perfect for small enterprises that need low-cost yet industrial-grade packaging solutions.
Technical Specifications GLF-40 Mini Band Sealer :
| Specification | Details |
|---|---|
| Model | GLF-40 Mini Band Sealer |
| Orientation | Horizontal |
| Maximum Pouch Load | Up to 1kg |
| Conveyor Load Capacity | 3–5 kg (cumulative) |
| Sealing Speed | 0–12 meters/min (adjustable) |
| Sealing Width | 6mm to 10mm |
| Film Compatibility | PE, PP, BOPP, Foil, Laminates, LDPE, HDPE, Kraft |
| Temperature Range | 0–300°C (adjustable digital control) |
| Voltage | 220V AC, 50Hz |
| Power Consumption | 500W – 650W |
| Body Material | MS Powder-Coated (Stainless Steel available on request) |
| Machine Dimensions (L×W×H) | Approx. 800mm x 350mm x 450mm |
| Net Weight | 18–22 kg |
| Batch Coding Option | Optional (Embossing or Ink Roller Coder) |
Best Suited For
1. Food & Grocery Packaging
-
Spices (masalas, herbs)
-
Bakery goods (biscuits, cookies)
-
Pulses, grains, salt, sugar
-
Dry fruits, seeds
2. Pharmaceutical & Cosmetic Products
-
Powdered medicines
-
Herbal powders and churna
-
Cosmetic creams and powders
-
Capsules and health supplements
3. Chemical & Laboratory Packaging
-
Fertilizer samples
-
Dry reagents
-
Testing powders
-
Agricultural bio-products
4. Retail & Consumer Goods
-
Hardware kits, screws, and fasteners
-
Stationery, toys, gift pouches
-
Electronic accessories, cables, SIM kits
Advantages of GLF-40 Mini Band Sealer
| Feature | Benefit |
|---|---|
| Compact Footprint | Saves space, perfect for countertops or desks |
| Light Weight | Easy to carry, move, or store when not in use |
| Quick Startup | Heats up fast and seals within minutes |
| Adjustable Speed & Heat | Allows sealing of different pouch thicknesses |
| Cost-Effective | Affordable solution for small-scale businesses |
| Consistent Sealing Quality | No manual variation; professional-grade packaging finish |
| Coding Ready | Option to print MRP, Expiry, Batch during sealing |
| Maintenance-Friendly | Simple access to belts, heaters, and electronics |

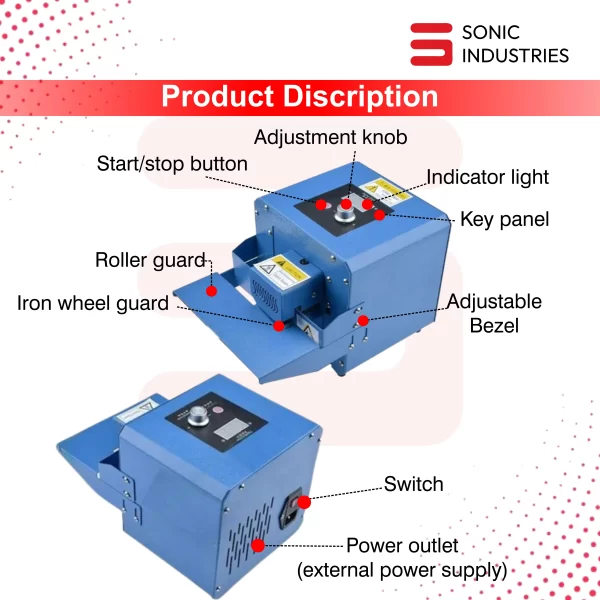

Component Breakdown
| Component | Function |
|---|---|
| Sealing Head | Dual heating elements apply uniform heat for airtight seal |
| Conveyor Belt | Moves pouches smoothly through the sealing zone |
| Control Panel | On/Off switch, temperature controller, and speed regulator |
| Teflon Band | Prevents sticking and ensures clean seal |
| Cooling Fan | Helps the seal set properly by reducing temperature post-seal |
| Optional Coder Mount | Allows mounting of embossing or ink-based batch coders |

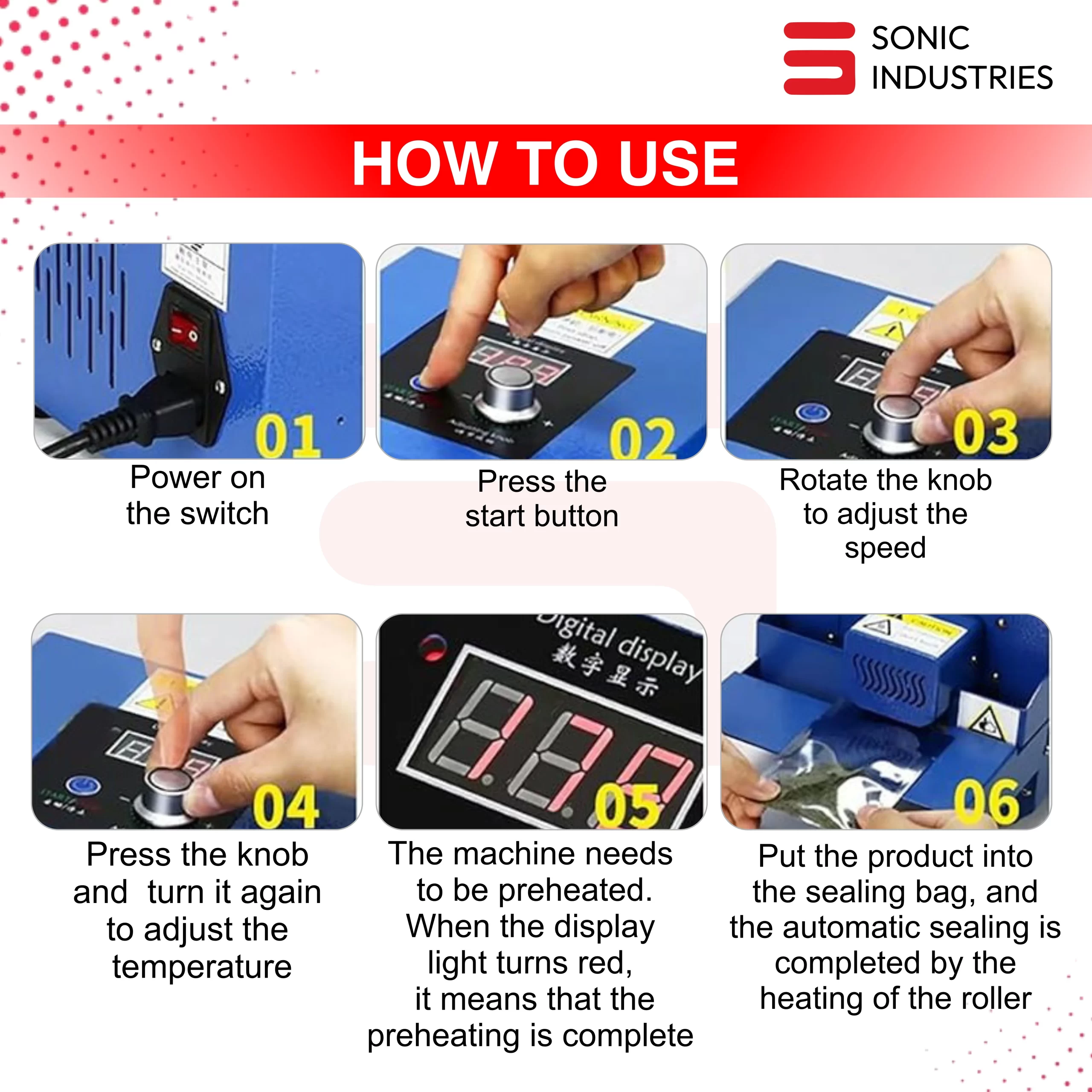

How to Operate
-
Power On
Plug in and switch on the machine. Let the heater reach your desired sealing temperature. -
Set Temperature and Speed
Use the controller to select the right heat and conveyor speed for your film type. -
Feed Pouch on Conveyor
Place the filled pouch horizontally with the mouth facing the seal jaws. -
Sealing in Progress
The pouch moves through heated belts which press and seal the film layers together. -
Collect Sealed Output
The pouch exits sealed, clean, and ready for labeling or shipment.
Troubleshooting Guide
| Issue | Possible Cause | Solution |
|---|---|---|
| Seal not forming | Temperature too low | Increase temperature setting |
| Burnt pouch edge | Excessive temperature | Reduce temperature and slow speed |
| Pouch stuck in belt | Film melted or belt dirty | Clean belts, reduce heat |
| Sealing band not moving | Belt worn out or stuck | Replace or realign belt |
| Uneven sealing | Pouch not fed straight | Align pouch properly on conveyor |
