Introduction

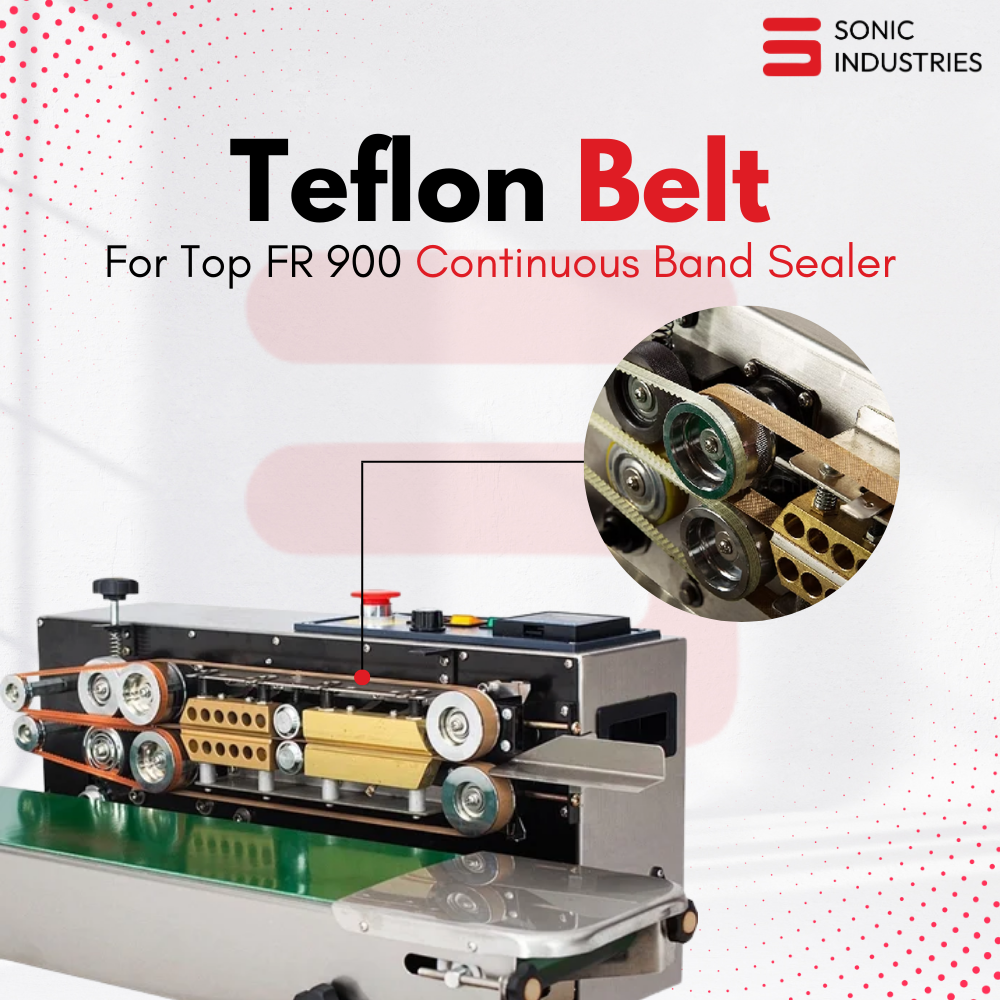

In every continuous band sealer, Teflon Belt there’s one component that quietly works behind the scenes, ensuring pouches move smoothly through the heat sealing and cooling zones — the Teflon conveyor belt.
While heating elements get most of the attention, the belt plays an equally critical role. Without a high-quality belt, even the most advanced sealing machines will struggle with:
-
Uneven seals
-
Wrinkled packaging
-
Burnt pouch edges
-
Frequent downtime due to belt failure

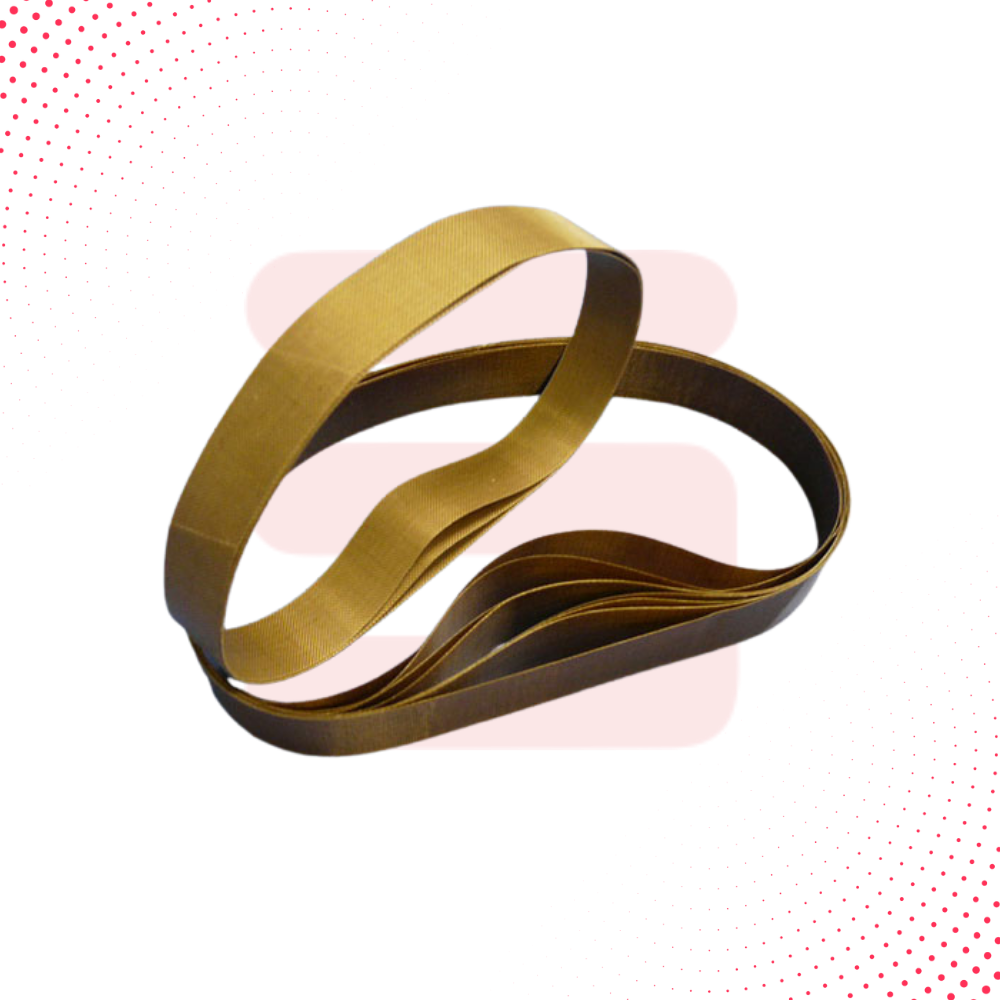

The Sonic Industries Teflon Belt Top Model is engineered for demanding industrial packaging lines that run 24/7, require consistent sealing quality, and can’t afford machine stoppages.
Unlike budget belts, this premium model uses an extra-thick PTFE (polytetrafluoroethylene) coating over reinforced fiberglass, giving it unmatched heat resistance, flexibility, and durability.
The Difference Between Standard and Top Model Teflon Belts
The market is flooded with Teflon belts of varying quality. Many look the same but perform very differently. Here’s why the Sonic Industries Top Model stands apart:
| Feature | Standard Belts | Sonic Industries Top Model |
|---|---|---|
| PTFE Coating Thickness | Thin layer | Extra-thick for durability |
| Heat Resistance | Up to 250°C | Up to 300°C continuous use |
| Fiberglass Quality | Basic | High-tensile, industrial-grade |
| Surface Finish | Slightly rough | Ultra-smooth non-stick |
| Service Life | 2–3 months | 6–12 months with care |
| Price | Low | Higher upfront, lower long-term cost |
This belt is designed for industrial-scale sealing, where cost per seal matters more than just the initial belt price.
Key Features of the Sonic Industries Teflon Belt Top Model
-
Premium PTFE Coating – Provides a smooth, non-stick surface for all pouch types.
-
High-Temperature Tolerance – Safely handles up to 300°C for extended periods.
-
Reinforced Fiberglass Core – Prevents stretching and keeps the belt running true.
-
Wear-Resistant Build – Reduces replacement frequency, cutting maintenance downtime.
-
Custom Sizes – Made to fit your exact band sealer dimensions.
-
Food-Grade Safety – Approved for direct contact with food packaging.

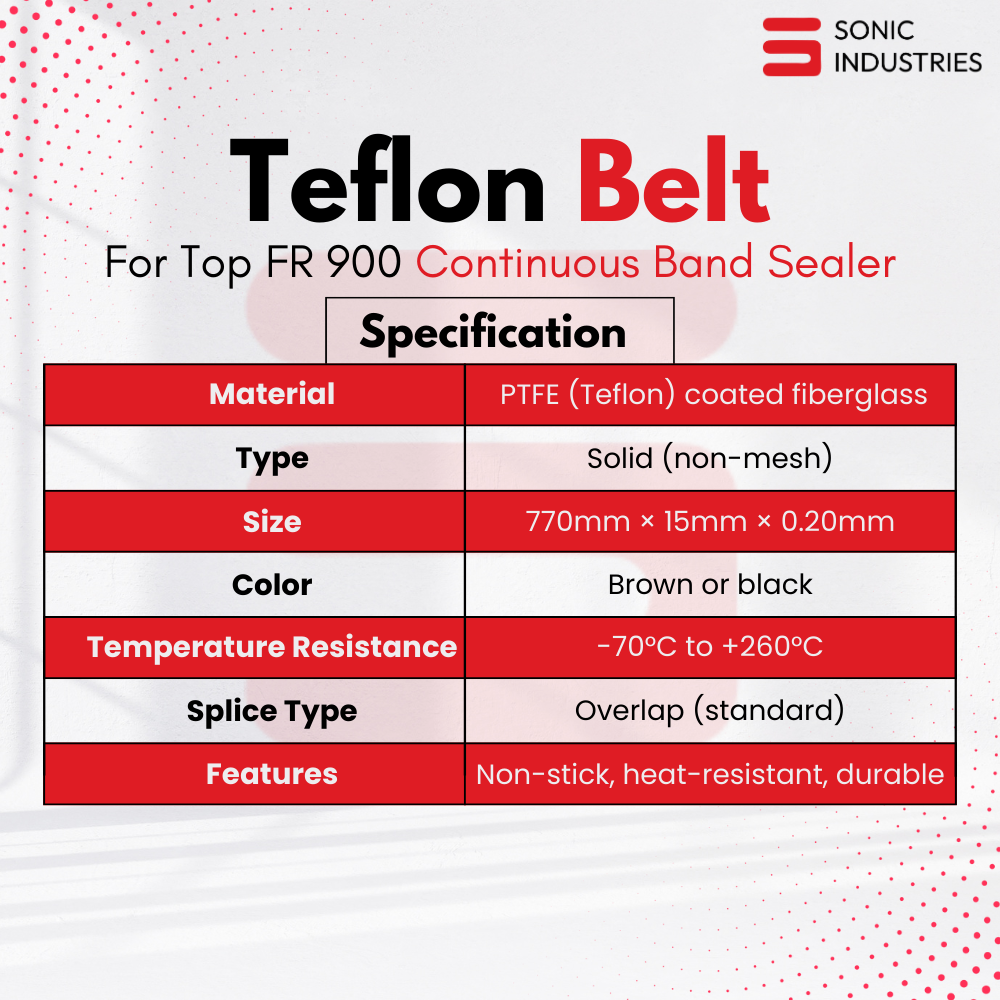

Technical Specifications
| Specification | Details |
|---|---|
| Material | Premium PTFE-coated fiberglass |
| Temperature Range | -70°C to +300°C |
| Belt Width | Custom (matches machine specs) |
| Belt Length | Custom |
| Thickness | 0.35–0.45 mm |
| Color Options | Brown / Black PTFE |
| Joint Type | Overlap / Finger joint |
| Surface Finish | Smooth non-stick premium finish |
Applications – Where This Belt Excels
-
Food Industry – Snacks, coffee, spices, grains, pulses, dairy powders.
-
Pharmaceuticals – Medical powders, capsules, tablets in foil or laminated pouches.
-
Industrial Goods – Fertilizer, seeds, lubricants, adhesives.
-
Retail Packaging – Zipper pouches, stand-up pouches, foil laminated bags.
Benefits of Choosing the Top Model
-
Longer Life Span – Less frequent replacements save both money and time.
-
Superior Seal Quality – Smooth motion prevents wrinkles and ensures airtight seals.
-
High-Speed Capability – Stable even at maximum machine speed.
-
Versatility – Works with nitrogen flush, vacuum sealing, and standard sealing machines.
-
Reduced Downtime – Stays aligned longer, reducing operator intervention.
Maintenance Tips for Maximum Belt Life
-
Clean Regularly – Use a soft cloth; avoid harsh chemicals.
-
Avoid Sharp Tools – Prevent cuts and scratches to the PTFE surface.
-
Monitor Tension – Too much tension shortens belt life; too little causes slippage.
-
Replace Before Failure – Don’t wait until it tears; preventive replacement is cheaper.
Troubleshooting Common Belt Issues
| Problem | Cause | Solution |
|---|---|---|
| Belt Slippage | Low tension | Adjust tension screws |
| Uneven Seals | Belt misalignment | Realign tracking rollers |
| Belt Burning | Excessive heat | Check temperature settings |
| Early Fraying | Misaligned pulleys | Inspect and realign |
| Pouches Sticking | Worn PTFE surface | Replace belt |
Frequently Asked Questions (FAQ)
Q1: Can I use this belt for vertical and horizontal sealers?
Yes, it fits both configurations as long as sizing matches.
Q2: Does the Top Model require special installation?
No, it installs like standard belts, but correct tensioning is key.
Q3: Is this belt compatible with imported FR series sealers?
Yes, custom sizes can be made for imported machines.
Q4: Can it be used for heavy pouches over 5kg?
Yes, the reinforced fiberglass supports heavy loads without stretching.
Q5: Is there a difference in seal quality between black and brown PTFE belts?
No difference in performance — the color is aesthetic.
Q6: Can the belt run at maximum machine speed?
Yes, it’s built for high-speed continuous sealing.
Q7: Is this belt suitable for packaging oily or greasy products?
Yes, PTFE coating resists oil and grease buildup.
Q8: Can I cut it myself to adjust size?
Not recommended; precision cutting and jointing are crucial.
Q9: How do I know when to replace the belt?
Replace if the PTFE coating wears through, frays appear, or tracking issues occur.
Q10: Can I bulk order belts?
Yes, wholesale pricing is available.
