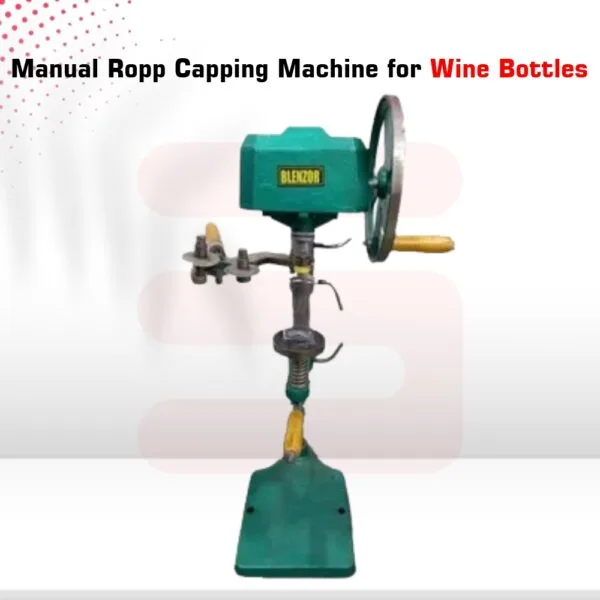

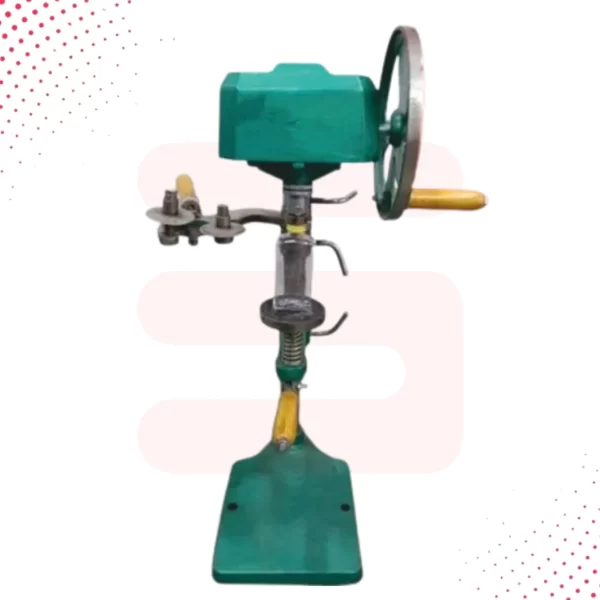

Manual ROPP Capping Machine
Precision Aluminum Cap Sealing for Small-Scale Bottling – No Electricity Required
Product Overview

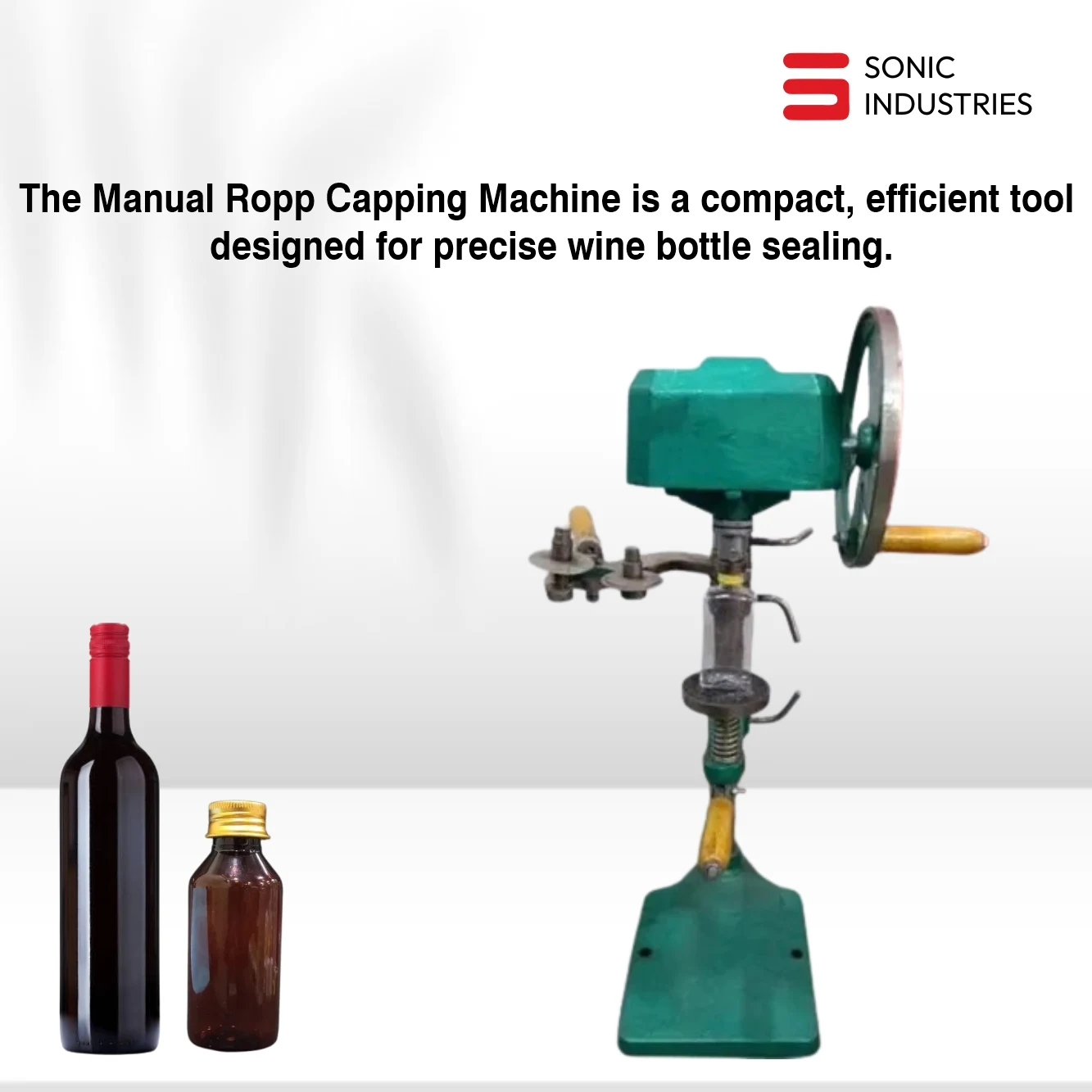

The Manual ROPP (Roll-On Pilfer Proof) Capping Machine from Sonic Industries is a hand-operated solution designed for sealing aluminum ROPP caps onto glass or plastic bottles. It is the go-to solution for small-scale production, startups, laboratories, and field operations that require a cost-effective, electricity-free, and portable capping tool.
This compact yet powerful machine ensures a tamper-evident, leak-proof seal using thread-rolling knurling dies. The machine forms threads directly onto the aluminum cap, pressing it securely against the bottle neck without damaging the bottle or the product.
Whether you’re sealing pharmaceutical syrups, ayurvedic liquids, wine bottles, or essential oils, the Manual ROPP Capping Machine delivers professional-grade sealing with every turn.

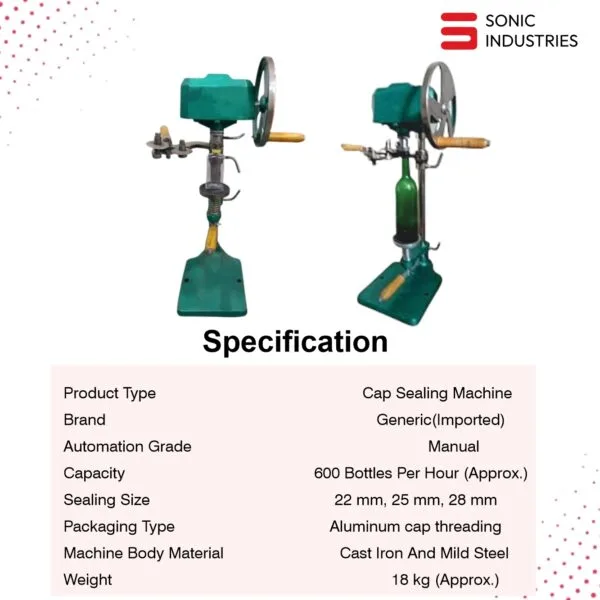

Technical Specifications
| Feature | Specification |
|---|---|
| Model | Manual Ropp Capping Machine |
| Operation Type | Manual Hand-Operated |
| Cap Type | ROPP Aluminum Caps |
| Cap Sizes | 22mm, 25mm, 28mm (interchangeable dies) |
| Bottle Material | Glass, PET, HDPE |
| Bottle Height Supported | 100 mm – 300 mm (adjustable platform) |
| Output Speed | 8–15 bottles per minute (operator dependent) |
| Knurling Type | Threading Rollers (Horizontal + Vertical) |
| Machine Body Material | Cast Iron & Mild Steel with Powder Coating |
| Mounting | Tabletop / Bench-Top |
| Weight | Approx. 18–22 kg |
| Power Requirement | None |
| Warranty | 1 Year (Mechanical Components) |
How It Works
The Manual ROPP Capping Machine works by manually rotating a set of hardened rollers around an aluminum cap placed on a filled bottle. These rollers form threads and knurling into the cap by pressing it against the bottle neck.
Step-by-Step Operation:
-
Place the filled bottle on the base plate.
-
Insert a ROPP cap loosely on top of the bottle.
-
Adjust the height of the roller head to align with the cap.
-
Rotate the handle in a circular motion.
-
The knurling rollers crimp, thread, and seal the cap tightly.
-
Remove the sealed bottle and repeat.
This process delivers a tamper-proof, pilfer-evident seal using mechanical pressure—no electricity or compressor needed.
Key Features
Manual Operation – Zero Electricity
No reliance on power—perfect for fieldwork, remote areas, or startup labs.
High-Precision Threading Dies
Hardened steel dies roll threads and knurls into the ROPP cap with industrial accuracy.
Adjustable for Multiple Cap Sizes
Supports 22 mm, 25 mm, and 28 mm ROPP caps. Change die sets in minutes.

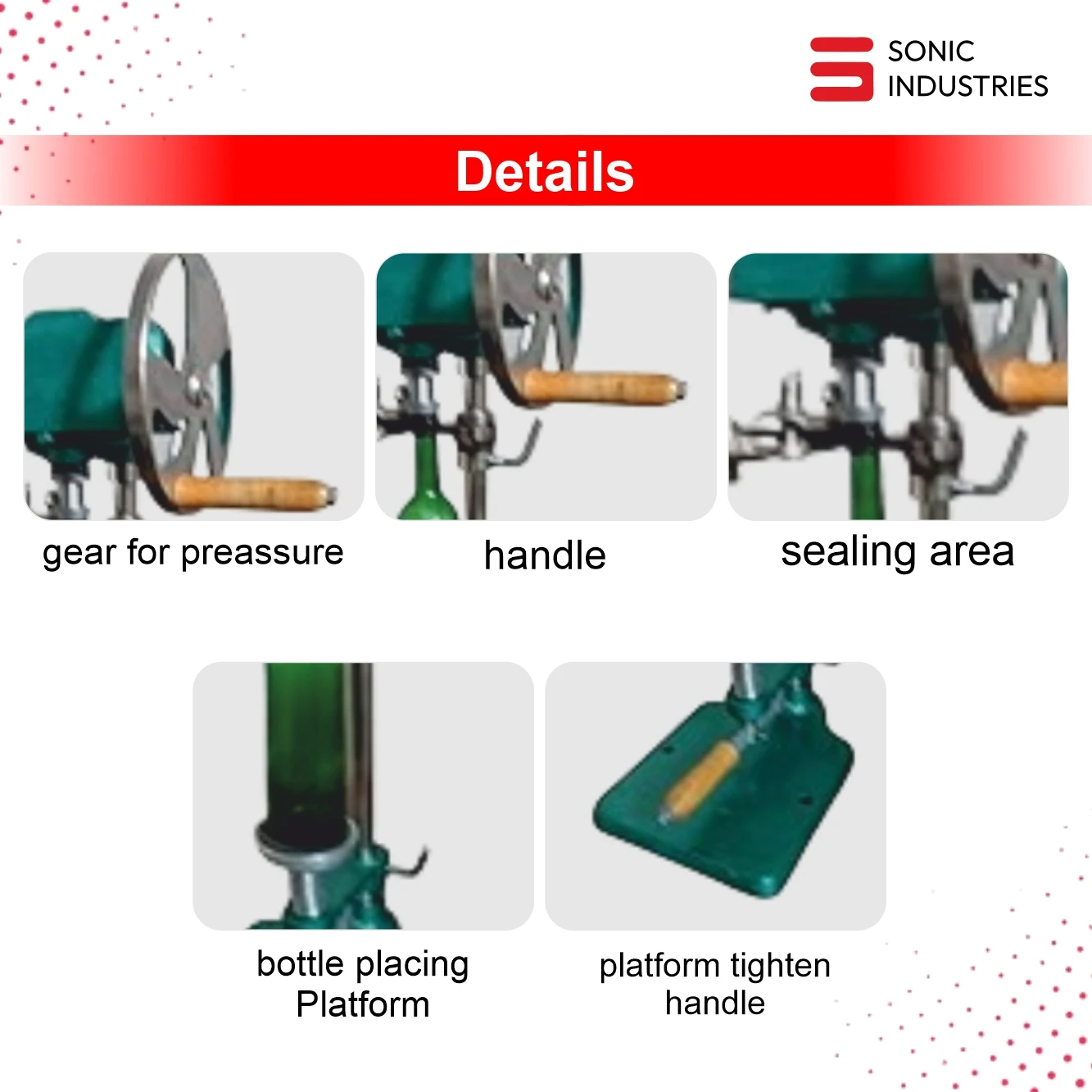

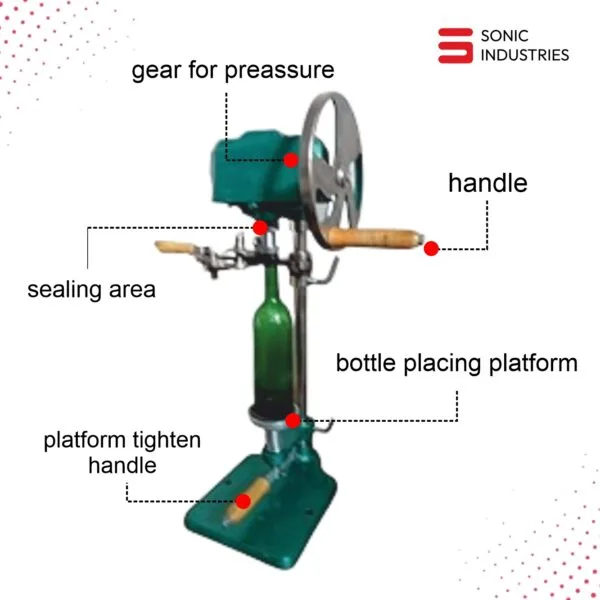

Ergonomic Handle for Smooth Operation
High-leverage crank makes operation easy and minimizes operator fatigue.
Height-Adjustable Bottle Stand
Quickly switch between bottle sizes with the adjustable platform.
Heavy-Duty Cast Iron Build
Built for rugged use in production environments. Powder-coated finish for durability.
Industry Applications
| Industry | Common Uses |
|---|---|
| Pharmaceuticals | Syrups, tonics, dropper bottles |
| Ayurveda & Herbal | Herbal extracts, health tonics, oils |
| Beverage & Winery | Wine bottles, infused water, mixers |
| Cosmetics & Oils | Hair oils, serums, essential oils |
| Laboratories | Sample sealing, R&D bottling |
| Small Businesses | Startups, home packaging, low-volume production |
Benefits
| Feature | Benefit |
|---|---|
| Mechanical Operation | Works without electricity or compressed air |
| Precise Threading | Consistent, professional seal with every use |
| Minimal Maintenance | No motors = no electrical faults or repairs |
| Low-Cost Investment | Affordable for startups and low-volume users |
| Multi-Industry Compatible | Use across food, pharma, herbal, and beverage |
| Fast Changeover | Switch cap sizes or bottle types in under 5 mins |
| Heavy-Duty Design | Built to last with minimum wear and tear |
Customization Options
-
Die Sets for 22mm, 25mm, and 28mm caps
-
Stainless Steel Body Upgrade (for food & pharma)
-
Clamp Mounting for Conveyor Use
-
OEM Branding / Private Labeling
-
Export Packaging Available
What’s Included
-
Manual ROPP Capping Machine
-
1 Die Set (Standard 25mm)
-
Adjustable Base Plate
-
Tool Kit for Maintenance
-
Instruction Manual
-
Optional Dies (on request)
Maintenance & Care
-
Daily: Wipe the machine to remove aluminum dust and oil residue.
-
Weekly: Oil the rotating parts and check for die alignment.
-
Monthly: Inspect the knurling dies for wear; replace if grooves dull.
-
Annual: Tighten bolts and inspect bearings.
Result: A machine that runs reliably for 5+ years with simple, low-cost care.
FAQ – Frequently Asked Questions
Q1: Can it seal PET bottles with aluminum caps?
Yes. It’s compatible with both glass and PET bottles.
Q2: Can it seal plastic screw caps?
No. It is designed only for aluminum ROPP caps.
Q3: Does it require any power source?
No. It’s fully manual and doesn’t need electricity or air.
Q4: How many bottles can it seal per hour?
400–600 bottles, depending on operator speed and bottle size.
Q5: Are dies replaceable?
Yes. Die sets are modular and easy to change.
Q6: Will it damage my bottles or caps?
No. When operated correctly, it delivers a snug, clean seal.
Q7: Do you provide service and parts?
Yes. We supply spare dies, base plates, and provide full support.
