Description
Electric Bottle Capping Machine High-Speed, Reliable & Consistent Bottle Sealing – Designed for Performance
Overview
Sealing bottles accurately and securely is a key step in any packaging line—whether you’re bottling pharmaceutical liquids, beverages, oils, or cosmetics. The Electric Bottle Capping Machine by Sonic Industries is engineered to meet the capping demands of modern production units. Compact, powerful, and easy to operate, this electric capper ensures precision tightening and secure sealing across a variety of cap sizes and bottle types.
Hand-held electric capping machine is mainly used to the screwcap tighten and loosen. Easy to carry, which can be easily used to tighten or loosen the cap. Of its adjustable clutch (readjustment) can effectively avoid the cap damage and reduce the wear and tear of the internal plug once the cap is tightened chuck to stop spinning, show that you can be the next cap operation. Capping work applicable to a variety of high strength bottle caps apply to the the cap direct range of 10-50 mm, a single production capacity of up to 30-90 bottles / min.
Whether you’re operating a medium-scale production unit, a contract packaging plant, or a laboratory, this electric capping machine saves labor, reduces cap inconsistencies, and boosts productivity.
Technical Specifications
| Feature | Details |
|---|---|
| Model | Electric Bottle Capping Machine |
| Operation Type | Electric / Semi-Automatic |
| Power Supply | 220V, 50/60 Hz |
| Motor Type | High-torque Electric Motor (Single Phase) |
| Bottle Type | Plastic / Glass |
| Cap Types Supported | Screw caps, Flip-top, Plastic caps |
| Cap Diameter Range | 10 mm to 50 mm (adjustable chuck) |
| Bottle Height Range | 50 mm to 300 mm (adjustable stand) |
| Capping Speed | 20–40 bottles per minute (operator speed) |
| Torque Control | Yes (Preset torque adjustment) |
| Body Material | plastic3 |
| Net Weight | 1 kg |
| Warranty | 1 Year |
Key Features
Electric-Powered Operation
Eliminates manual effort. The motor-driven capper delivers quick, precise tightening on every bottle.
Adjustable for Multiple Sizes
Handle different bottle heights and cap diameters with quick adjustments—no tools required.
Precision Torque Control
Built-in torque settings ensure caps are tightened to exact standards, preventing leaks or over-tightening.
Versatile Compatibility
Works with a wide variety of cap styles and bottle materials—PET, HDPE, glass, aluminum, etc.
Durable Construction
Made from stainless steel and corrosion-resistant alloys, it’s built for long-term industrial use.
Easy Integration
Can be used standalone or placed inline with filling or labeling machines.
Applications by Industry
| Industry | Application Examples |
|---|---|
| Pharmaceuticals | Syrup bottles, dropper bottles, HDPE containers |
| Beverages | Juice, flavored water, energy drinks, kombucha |
| Cosmetics | Creams, oils, serums, lotions |
| Chemicals | Cleaning liquids, detergents, oils |
| Laboratories | Glass vials, sample bottles, research solutions |
How It Works
-
Place a filled bottle under the capping head.
-
Place the cap loosely on top of the bottle.
-
Lower the capping chuck or spindle onto the cap.
-
Press the switch or foot pedal (depending on model).
-
The machine tightens the cap to the desired torque.
-
The machine stops automatically once the preset torque is reached.
-
Remove the sealed bottle and repeat.
This ensures consistent sealing performance with minimal effort.
Why Choose Sonic Industries’ Electric Bottle Capper?
-
Reliable and robust electric drive
-
Adjustable height and torque control
-
No air compressor required
-
Easy to use, even for first-time operators
-
Reduces human error in capping

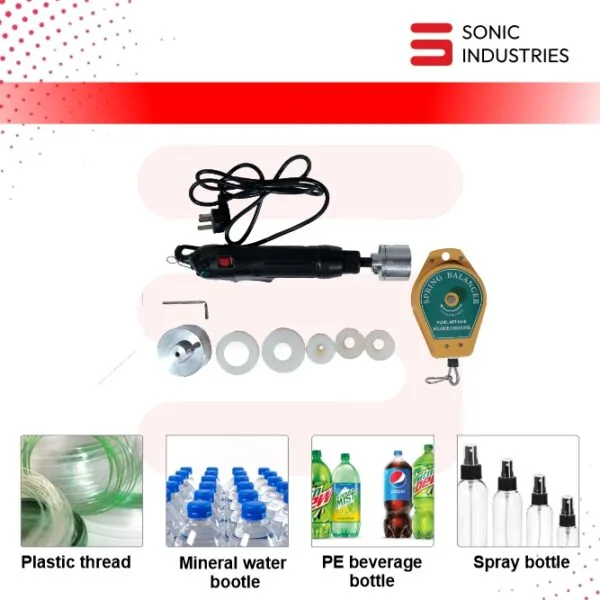

Optional Accessories
-
Additional capping chucks (for unique cap sizes)
-
Footswitch for hands-free operation
-
Custom height stand (for tall bottles)
-
Bottle clamping base for high-speed lines
-
Stainless steel body upgrade (for food/pharma)
