Description

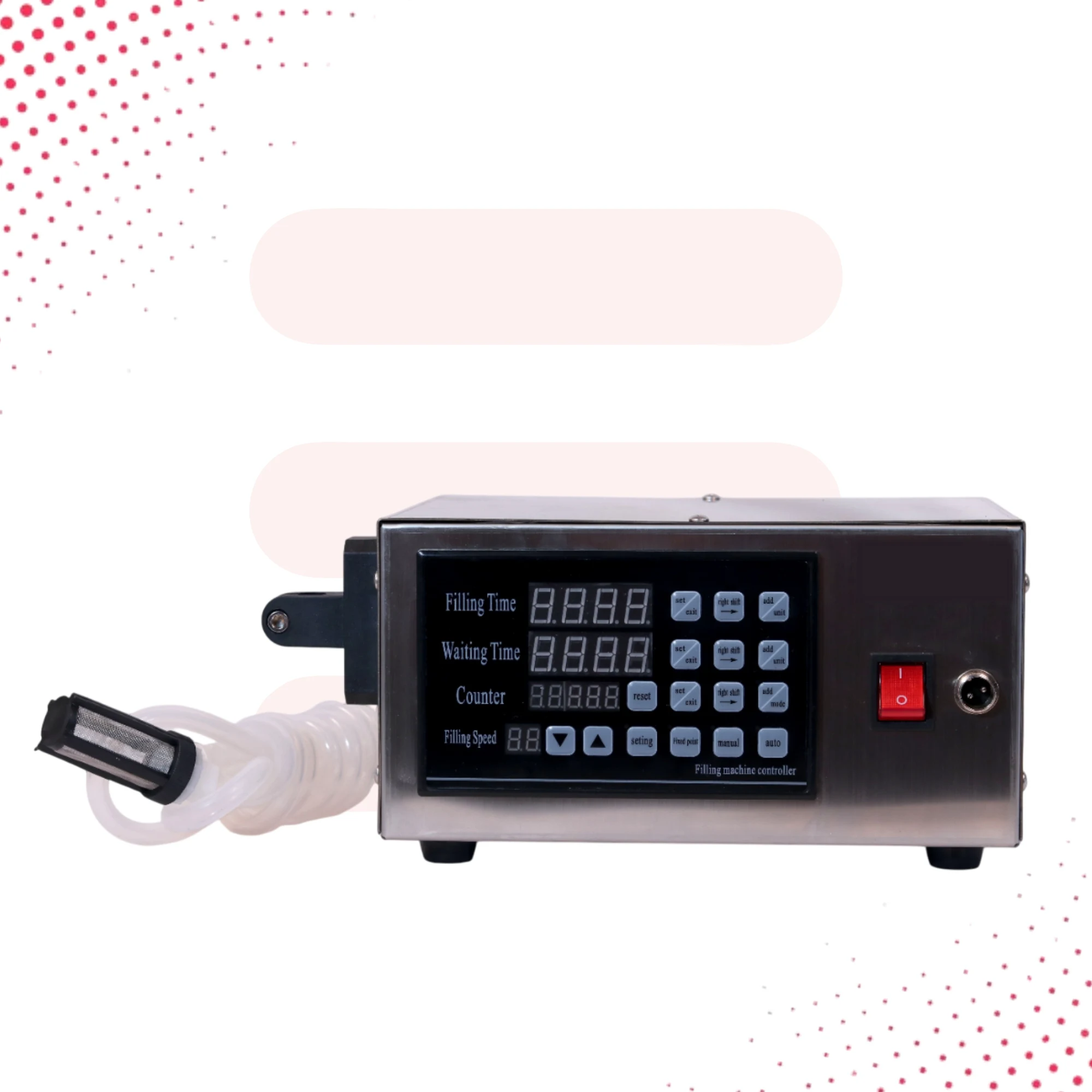

280 Digital Panel Liquid Filling Machine
Compact, Accurate, and Easy-to-Use Digital Liquid Filler for Small Bottle Packaging
The 280 Digital Panel Liquid Filling Machine is a compact, semi-automatic liquid filling system, perfect for low to medium-viscosity liquids. Built with digital control, high-precision pump system, and simple user interface, this machine is ideal for businesses seeking a cost-effective, accurate, and user-friendly filling solution.
Designed for startups, laboratories, cosmetic brands, small manufacturers, and home-based businesses, the 280 Digital Panel Liquid Filling Machine delivers precision, hygiene, and speed — all packed in a compact tabletop unit. Whether you’re filling essential oils, sanitizer, perfumes, distilled water, serums, or herbal extracts, this machine handles it all with ease.
Key Features
Digital Panel with Timer Control
At the heart of the machine is a microcomputer-based digital control panel, enabling you to set filling time, interval, and delay, ensuring precision filling volume control. You can fine-tune the machine based on bottle size, fluid thickness, and speed required.
Suitable for 3ml to 3500ml
This model can fill from as low as 3ml to as high as 3500ml, depending on pump cycle and nozzle configuration. Perfect for trial batches and varied bottle sizes.
Compact Tabletop Design
Its small footprint makes it ideal for lab benches, shop counters, and compact production units. You can operate the machine from virtually any flat surface.
High-Quality Peristaltic or Diaphragm Pump
The machine uses a durable food-grade pump that delivers consistent volume with ±1% accuracy. Suitable for low-viscosity to medium-thickness liquids.
Anti-Drip Stainless Steel Nozzle
A precision nozzle ensures a clean, drip-free filling, reducing product loss and eliminating mess on your work surface.
Automatic & Manual Modes
Choose between manual (foot pedal) and automatic timed operation, depending on your production needs. Auto-mode is ideal for batch runs; manual is great for flexibility and learning.
Easy to Clean and Maintain
The pump and tubing system can be easily flushed and cleaned. Minimal disassembly required. No need for tools.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | 280 Digital Panel Liquid Filling Machine |
| Filling Range | 3ml to 3500ml (cycle-based) |
| Filling Accuracy | ±1% |
| Voltage | 220V / 110V AC (Dual available) |
| Control System | Digital Timer Panel |
| Operation Mode | Manual / Automatic |
| Pump Type | Diaphragm or Peristaltic (custom) |
| Body Material | Stainless Steel & ABS |
| Nozzle Type | SS Anti-Drip |
| Filling Speed | 10–30 bottles/min (depending on volume) |
| Net Weight | Approx. 10–15 Kg |
| Dimensions | 350mm x 300mm x 180mm (approx.) |
Compatible Liquids
The 280 Digital Panel Liquid Filler works best with non-viscous and low-viscosity liquids. It is suitable for:
Pharma & Healthcare
-
Syrups
-
Tinctures
-
Distilled water
-
Herbal tonics
-
Disinfectants
-
Eye drops
Personal Care & Cosmetics
-
Liquid soaps
-
Rose water
-
Toners
-
Perfumes
-
Serums
-
Essential oils
Food & Beverage
-
Flavored water
-
Vinegar
-
Herbal juice
-
Liquid food color
-
Liquid extracts
Industrial & Chemical
-
Cleaners
-
Sanitizer
-
Fertilizer solutions
-
Car perfumes
-
Battery water
Ideal For:
| Business Type | Use Case |
|---|---|
| Home Businesses | Low-cost bottling of oils, perfumes, etc. |
| Startups | Entry-level packaging of handmade products |
| Pharmaceutical Labs | Small-scale test batches and accurate dosing |
| Cosmetic Brands | Facial mists, toners, and serums |
| Chemical Traders | Bottling of chemical-based solutions |
| E-commerce Sellers | Liquid products for online retail |
Benefits of the 280 Digital Panel Liquid Filler
1. Digital Accuracy
With programmable filling time and flow control, every bottle receives precise and repeatable volume.
2. Clean & Hygienic Operation
Nozzle with anti-drip design keeps your workbench mess-free. No product loss during filling.
3. Versatility
From 3ml trial bottles to 3.5L containers, the 280 can handle a wide range of packaging requirements.
4. Easy Cleaning
Designed for tool-free cleaning and flushing. Minimal parts, maximum uptime.
5. Low Maintenance
No complicated mechanics. Just plug in, set, and start.
6. Dual Voltage
Runs on 110V or 220V, ideal for international or export setups.
7. Batch or One-by-One Filling
Switch between manual (foot switch) and automatic timer fill depending on your operator’s preference.
8. Affordable Automation
Gives automation-level accuracy at the price of a manual machine.
Optional Add-ons
| Add-on | Purpose |
|---|---|
| Foot Pedal Switch | Manual trigger for filling |
| SS Stand or Trolley | Ergonomic mounting for bottles |
| Digital Counter | Track output automatically |
| Dual Nozzle Setup | For faster production with 2 bottles |
| UV Cabinet Integration | For sterile or cosmetic filling environments |
Cleaning & Maintenance
Cleaning Process:
-
Flush the tubing with clean water or alcohol after every shift.
-
Run the pump in reverse mode to clear internal residue.
-
Remove and clean the nozzle manually.
-
Wipe the panel with a soft, dry cloth.
Cleaning Time: 5–7 minutes
Recommended Frequency: After each batch or product change
What’s in the Box?
-
280 Digital Panel Liquid Filling Machine
-
One set of tubing
-
One stainless steel filling nozzle
-
Power cable
-
Foot pedal (if included)
-
User manual
-
Setup and cleaning guide
-
Warranty card
