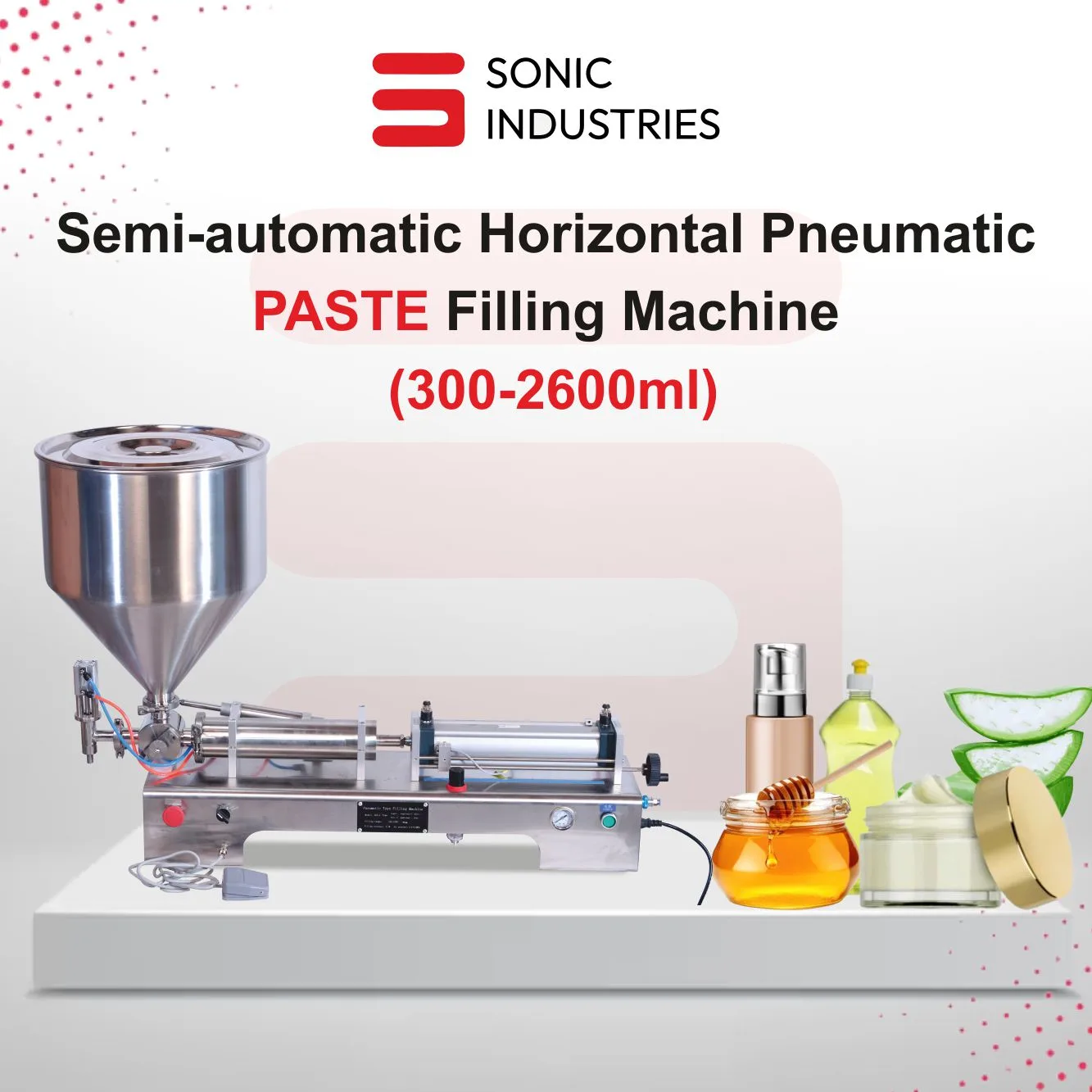

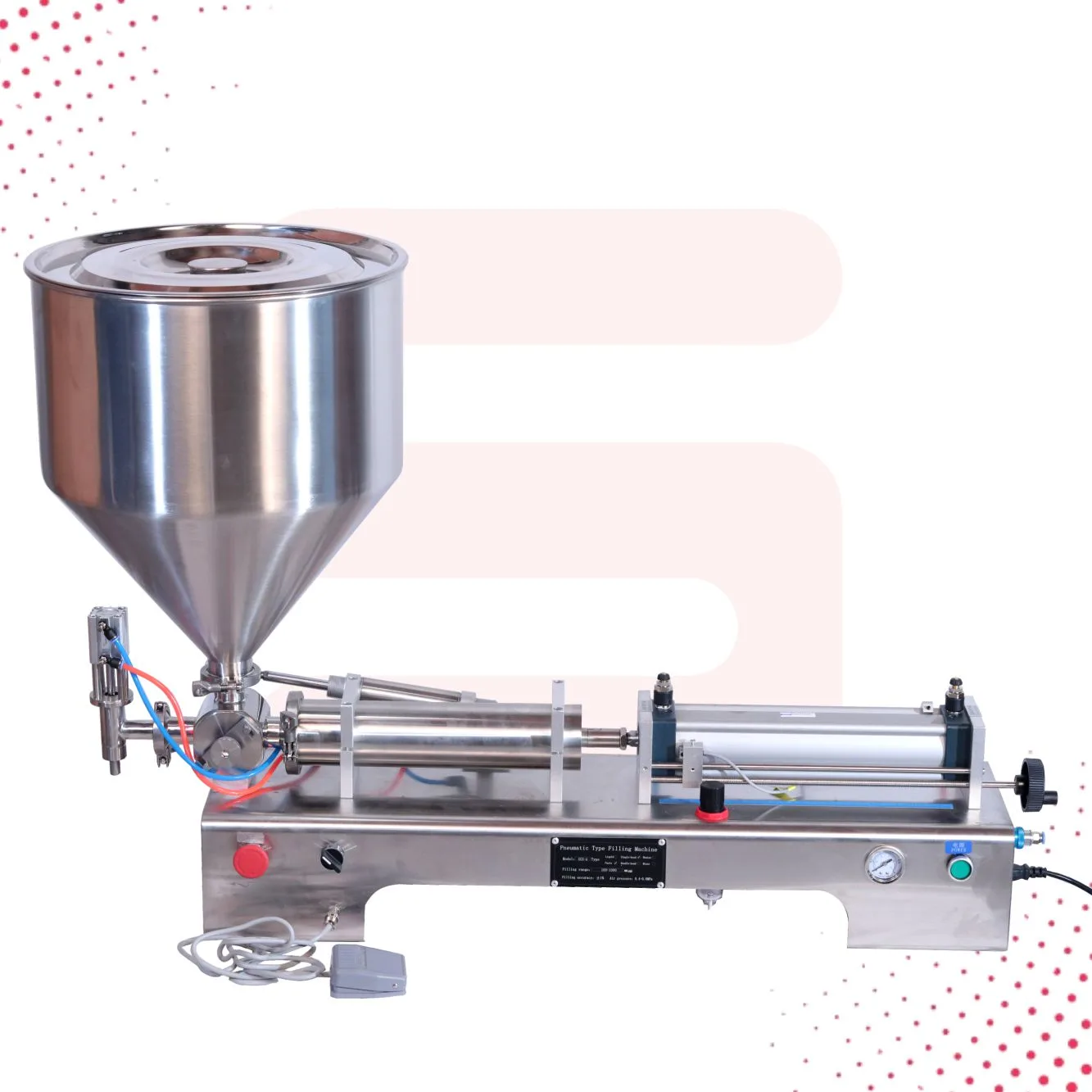

Pneumatic Paste Filler – 300ml to 2600ml
High-Capacity Semi-Automatic Paste Filling Machine for Large Volume Creams, Sauces, and Viscous Products
Overview
Designed for bulk filling with industrial precision, the Pneumatic Paste Filler – 300ml to 2600ml is a powerful and reliable semi-automatic solution for high-volume packaging operations. This heavy-duty filler is built to handle viscous, semi-viscous, and dense materials across multiple industries including food processing, pharmaceuticals, cosmetics, and chemicals.
With a massive filling range of 300ml to 2600ml, this model is ideal for filling large containers such as jars, tubs, pouches, bottles, and buckets. Built from SS304 stainless steel, it guarantees hygiene, corrosion resistance, and long service life, while the air-powered piston system ensures accurate, efficient, and clean filling — with no need for electricity.
Key Features
Large Filling Volume (300ml to 2600ml)
This machine allows precise adjustment for containers ranging from 300ml up to 2.6 litres — perfect for industries that deal in bulk packaging or institutional-sized products.
Pneumatic Drive – Air Powered
The machine runs entirely on compressed air, offering a safe, explosion-proof operation with no electricity involved. It is compatible with standard 1–2HP compressors.
High Accuracy (±1%)
The pneumatic piston-based filling system ensures consistent volume control, reducing waste and delivering standardized product weight every time.

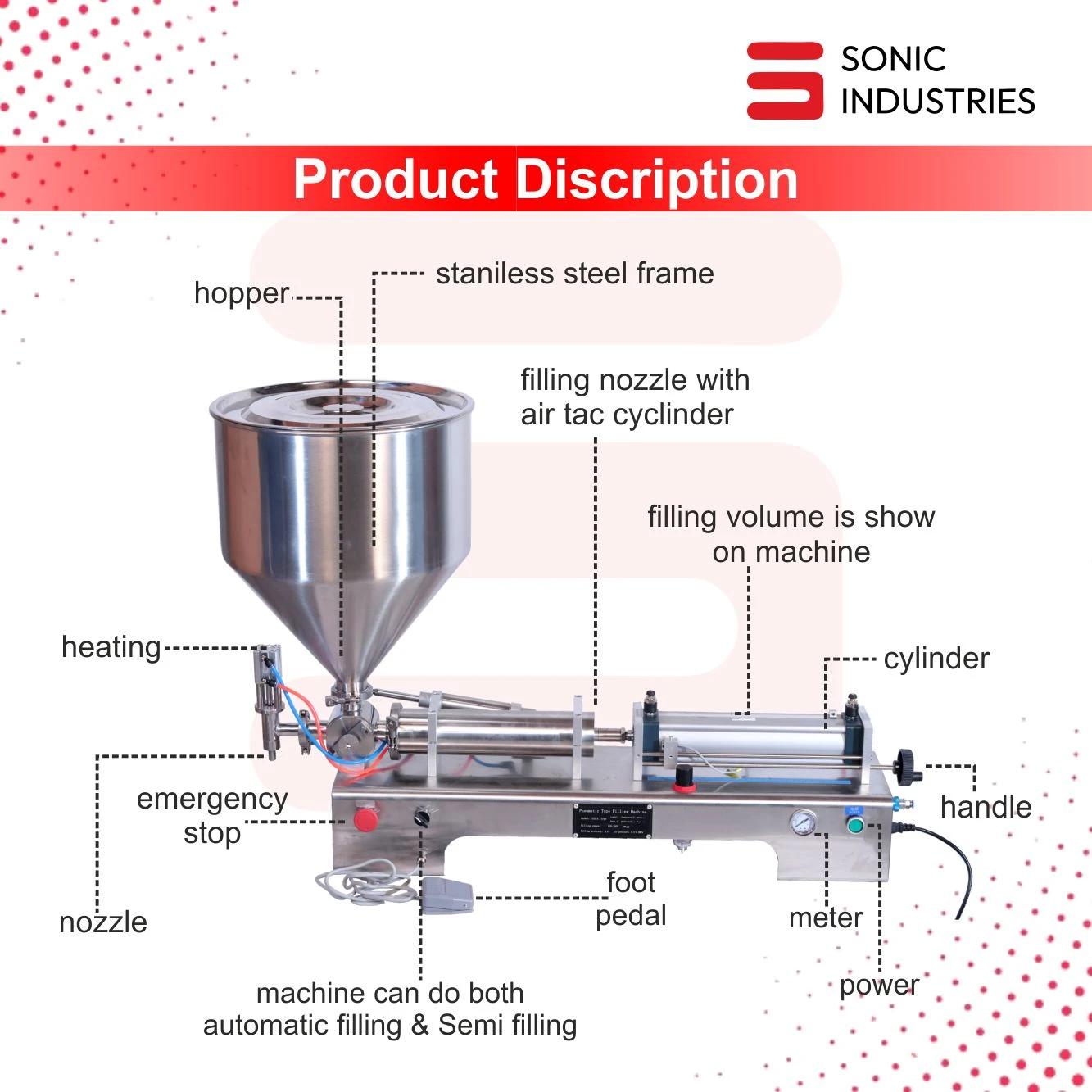

SS304 Contact Parts
All material-contacting components are made of SS304 grade stainless steel for maximum hygiene, rust resistance, and food/pharma-grade compliance. SS316 option is available for corrosive or pharmaceutical applications.
Anti-Drip Nozzle
Equipped with a drip-free nozzle system to ensure clean fills without trailing or leakage — especially important when filling sticky or high-viscosity substances.
Manual Trigger via Foot Pedal
The semi-automatic machine is manually operated by the user through a foot pedal or optional hand button — giving complete control over timing and fill count.
Heavy Duty & Industrial Grade
Reinforced piston and nozzle assembly, thick steel frame, and large-capacity hopper make this machine suitable for continuous duty cycles in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Filling Range | Pneumatic Paste Filler – 300ml to 2600ml |
| Filling Accuracy | ±1% |
| Operation Mode | Pneumatic (requires air compressor) |
| Material of Construction | SS304 (Optional SS316) |
| Air Pressure Required | 0.4 – 0.6 MPa |
| Control Method | Foot Pedal / Push Button |
| Nozzle Type | Stainless Steel Anti-drip Shut-off Nozzle |
| Output Speed | 8 – 15 fills/min (based on product type) |
| Hopper Capacity | 50 – 70 Litres (customizable) |
| Machine Weight | 75 – 95 kg |
| Mounting | Trolley or Stationary Bench Mount |
Ideal for the Following Products
Food Industry
-
Bulk ketchup and sauces
-
Peanut butter and chocolate paste
-
Honey and syrup
-
Mayonnaise and chutney
-
Pickle paste and garlic-ginger paste
Cosmetics & Beauty
-
Body lotion in large bottles
-
Hair masks, scrubs, and body butters
-
Herbal gel in bulk jars
-
Industrial-size face cream packs
Pharmaceuticals & Ayurveda
-
Medicated ointments and gels
-
Herbal pastes, balms, and lehyams
-
Pain relief creams in 1L+ containers
Chemical & Industrial
-
Liquid soap and detergents
-
Grease and lubricants
-
Cleaning pastes
-
Paints and thick coatings
Industry Applications
| Industry | Common Packaging Use Cases |
|---|---|
| Food Processing | Bulk jars, PET containers, large tubs for sauces |
| Cosmetics | Bottles and buckets of gels and creams |
| Pharma & Ayurveda | Herbal and medicated paste containers (1–2.5L) |
| Chemicals | Grease cartridges, liquid cleaning agent bottles |
Customization Options
| Custom Feature | Description |
|---|---|
| Heated Jacket Hopper | For materials like balm, butter, wax that solidify |
| SS316 Contact Parts | For reactive or pharma-grade substances |
| Dual Nozzle Setup | To double productivity by filling 2 containers |
| Extra Large Hopper | For long batch runs without refilling frequently |
| Extended Nozzle | For deep jars or buckets with narrow openings |
| Caster Wheel Base | Add mobility to shift machine across workstations |
Easy Cleaning & Maintenance
-
Tool-Free Disassembly: Hopper, piston, and nozzle can be removed in minutes
-
Flushable Design: Clean water or solution can be flushed through the system
-
Quick Batch Switching: Ideal for companies that fill multiple products
-
Maintenance-Free Operation: No electronics or motors to service
Productivity Benefits
-
Boosts output up to 2.5x compared to manual filling
-
Reduces labor cost by at least 40%
-
Consistent fills reduce over/under-packaging losses
-
Improves hygiene & GMP compliance
-
Enables large pack sizes with no manual fatigue
What’s Included
-
Pneumatic Paste Filler Machine – 300ml to 2600ml
-
50L or 70L SS Hopper with lid
-
Anti-drip nozzle (standard size)
-
Pneumatic pedal system
-
User guide & operation manual
-
Maintenance kit (O-rings, basic tools)
