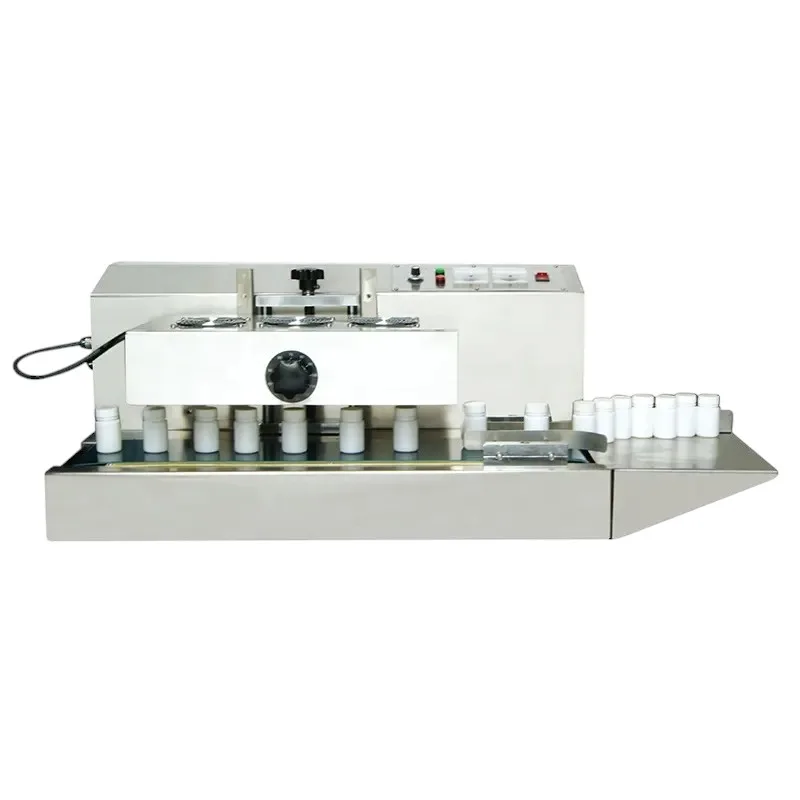

Sonic Industries LX 2000A Automatic Induction Sealing Machine – Mild Steel Body | 20mm to 130mm Cap Sealing | High-Efficiency and Durable

Description

LX 2000A Automatic Induction Sealing Machine – High-Speed Industrial Foil Cap Sealer for Bottles | Sonic Industries

Product Overview

The LX 2000A Automatic Induction Sealing Machine by Sonic Industries is a fully automatic, high-performance electromagnetic induction cap sealing system, engineered for high-speed industrial production lines. Designed to provide continuous, non-contact sealing of aluminum foil liners on bottle mouths, this machine ensures airtight, leak-proof, and tamper-evident seals with exceptional consistency and speed.

Capable of sealing up to 300 bottles per minute, the LX 2000A Automatic Induction Sealing Machine is the perfect solution for pharmaceutical, food, agrochemical, cosmetics, and chemical industries. It integrates seamlessly into existing production lines and features intelligent control systems, high-frequency sealing technology, and built-in safety mechanisms.

For large-scale manufacturing setups seeking a robust, automated sealing solution, the LX 2000A delivers speed, precision, and reliability, setting a new standard for industrial induction sealing.

Key Features

Fully Automatic Continuous Sealing Operation
Sealing Speed: Up to 300 Bottles Per Minute
Cap Size Range: 20mm to 130mm
Built-In Conveyor System (Adjustable Speed)
Digital Touchscreen Control Panel (HMI)
Intelligent Fault Detection System
Advanced Air-Cooled Induction Coil
Adjustable Sealing Power & Timing
Suitable for PET, HDPE, LDPE, PP & Glass Bottles
Heavy-Duty Industrial Frame with SS Body

Technical Specifications

Industrial Applications

Working Principle

The LX 2000A operates on the principle of electromagnetic induction heating:

1. Bottle Movement on Conveyor:
   Bottles with screw caps (pre-fitted with foil liners) move along the conveyor belt.

2. Induction Head Activation:
   As bottles pass under the induction head, the electromagnetic field activates.

3. Foil Heating & Sealing:
   The field generates eddy currents in the aluminum foil, melting the polymer layer and bonding it to the bottle rim.

4. Seal Formation:
   The foil cools and adheres permanently, forming a leak-proof, tamper-evident barrier.

5. Continuous Flow:
   The machine works non-stop, enabling automated, high-speed sealing with minimal operator intervention.

Performance Advantages

1. High-Speed Sealing Efficiency
    Designed for demanding production environments, it can process up to 18,000 bottles per hour, depending on configuration.

2. Leak-Proof, Tamper-Evident Seal
     Seals prevent product spillage, contamination, and tampering—ensuring customer trust and compliance with industry standards.

3. Advanced Air Cooling System
    Built-in cooling fans prevent overheating during continuous operations—eliminating the need for water-based cooling systems.

4. User-Friendly Digital Interface
     HMI touchscreen allows users to set and monitor temperature, conveyor speed, and error alerts in real-time.

5. Enhanced Safety Features
     Auto shutoff, emergency stop, overheat protection, and buzzer alerts ensure operator safety.

User Controls & Interface

The LX 2000A features a digital HMI (Human Machine Interface) control panel:

•  Adjustable Power Level (0–100%)

•  Sealing Time Configuration

•  Conveyor Speed Tuning

•  Error Code Display

•  Alarm Alerts: Overload, Coil Displacement, Power Failure

•  Emergency Stop Switch

Installation & Operation

Installation Requirements:

• Level working platform

• Power socket (220V single phase, 3 kW load capacity)

• Dust-free, dry environment

• Operator workstation with ventilation

Operating Steps:

1. Connect machine to power and switch on.

2. Adjust conveyor speed to match production line.

3. Set power and timing on control panel.

4. Place bottles on conveyor with correct liner caps.

5. Monitor operation through digital screen.

6. Check sealing samples for accuracy periodically.

Recommended Foil Liners

 Aluminum foil seal with polymer film (PET/PE/PP compatible)
 Wad-type liners with tamper-evident pull-tab
 Printed liners for branding purposes (optional)

Troubleshooting Guide
