Sonic Industries 500C Heavy Duty Induction Sealing Machine (35mm to 135mm)

Description

Introduction

       In today’s competitive packaging industry, seal integrity is not just about keeping a product fresh — it’s about protecting your brand. For large containers holding high-value liquids, powders, or chemicals, a tamper-proof, leak-free seal is essential to meet quality standards, ensure customer safety, and maintain product reputation.

       The Sonic Industries 500C Heavy Duty Induction Sealing Machine is purpose-built for large-cap applications — handling diameters from 35mm to 135mm — delivering consistent, high-speed sealing without compromising on quality. Designed for continuous industrial use, the 500C is trusted by manufacturers worldwide in edible oil bottling plants, agrochemical factories, pharmaceutical companies, and industrial chemical production facilities.

---

What Is the Sonic 500C?

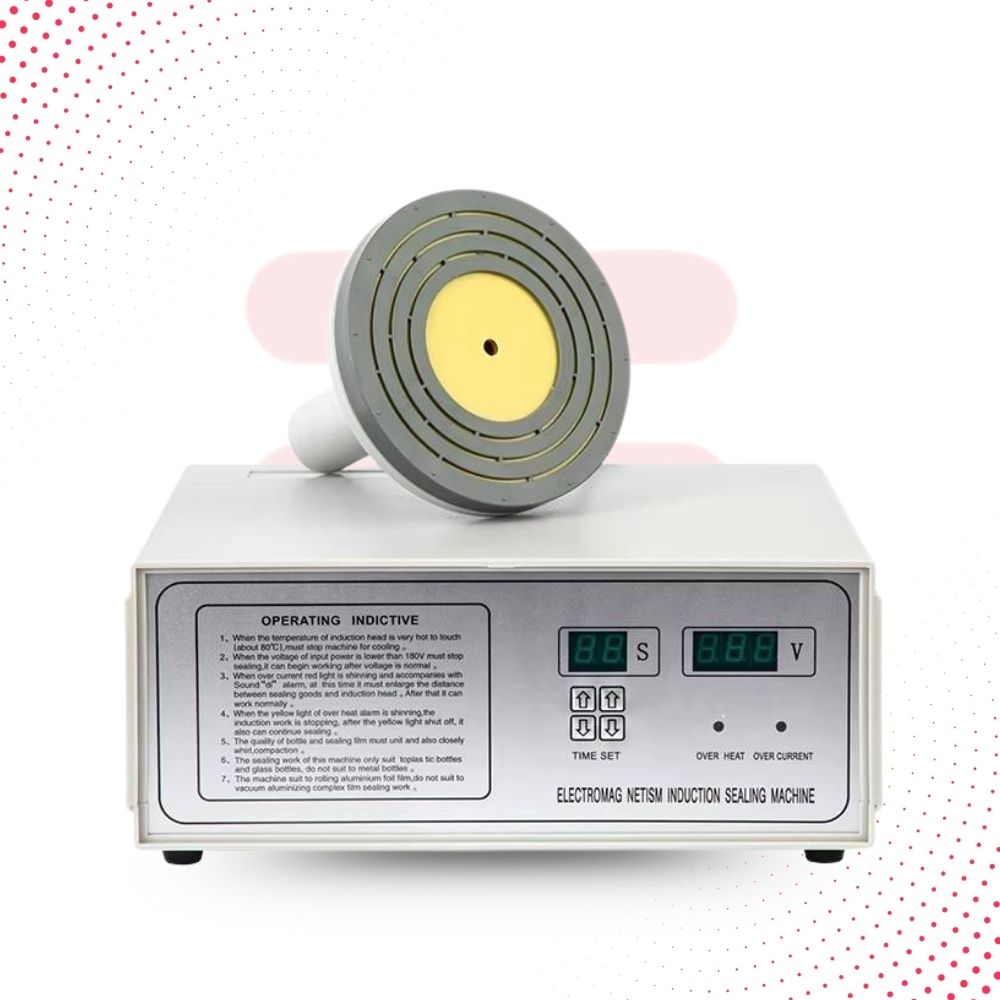

        The Sonic 500C is a high-power, air-cooled induction sealing machine engineered to create airtight, tamper-evident seals on plastic and glass containers. Unlike traditional heat sealing methods, it uses non-contact electromagnetic induction technology to heat an aluminum foil liner inside the cap, bonding it securely to the container’s rim without touching the product.

---

Key Features

• Cap Range: 35mm to 135mm

• Heavy-Duty Construction: MS powder-coated body for industrial durability

• Advanced Coil Design: Optimized for large sealing surfaces

• Digital Control Panel: Adjustable power settings for different materials

• Air-Cooled Efficiency: No water-cooling required, reducing maintenance

• Fast Sealing Speed: Up to 50 bottles per minute depending on container size

• Multi-Material Compatibility: PET, HDPE, PP, and glass containers

• Safety Systems: Overheat protection, overvoltage protection, emergency stop

• Portable Yet Powerful: Compact footprint with industrial-grade performance

---

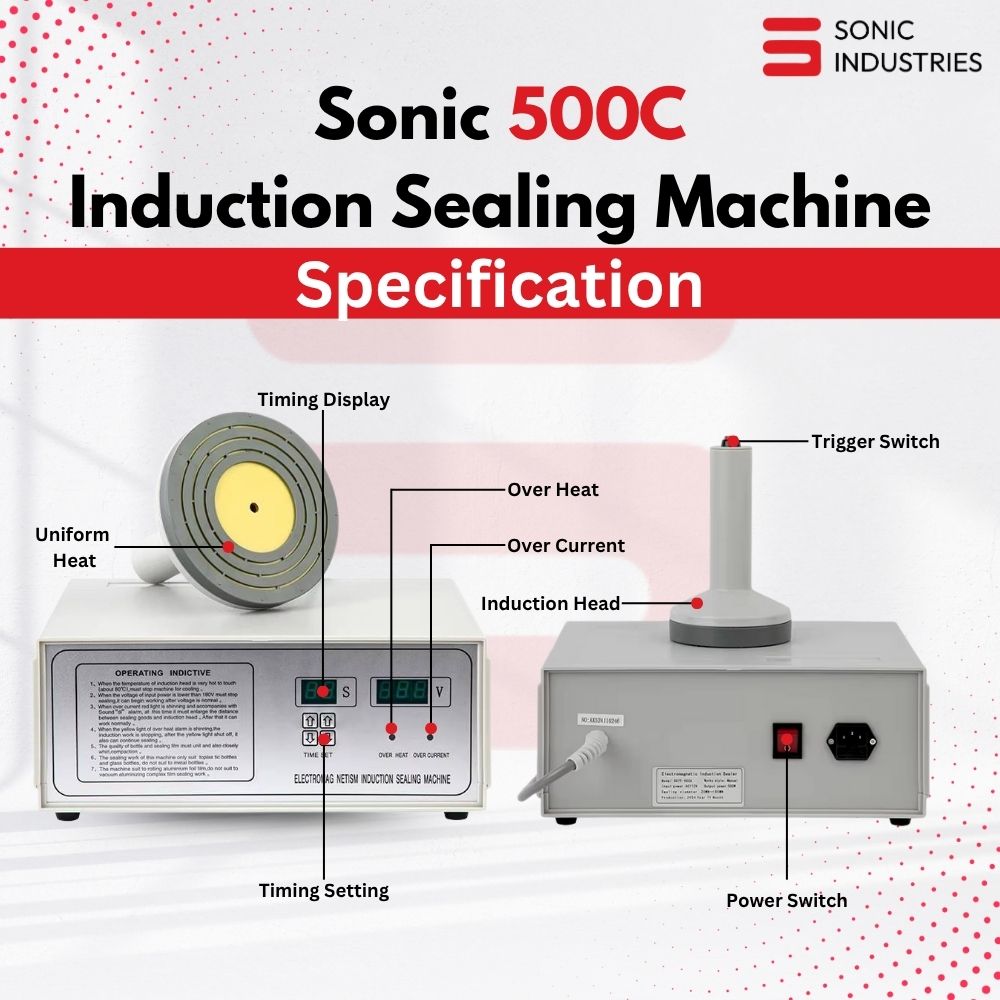

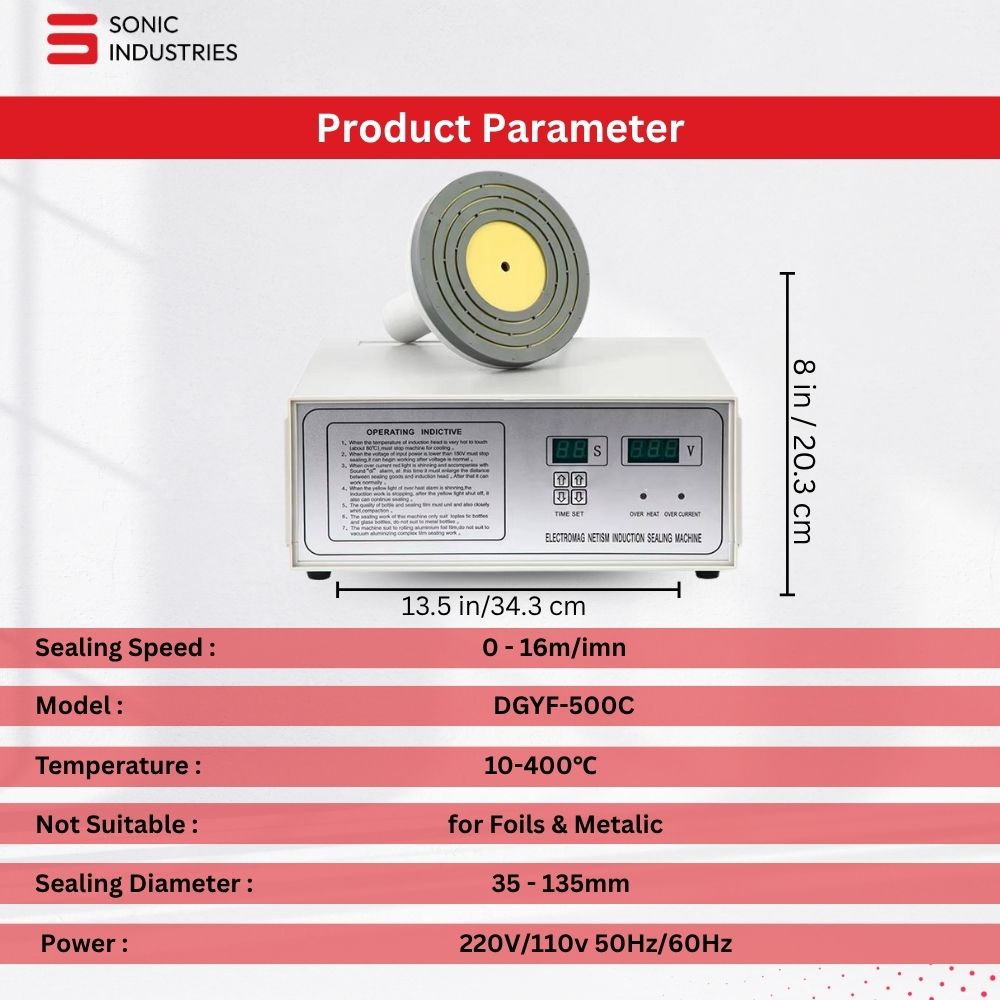

Technical Specifications

500C Heavy Duty Induction Sealing Machine

---

How Induction Sealing Works

Induction sealing uses a copper induction coil to generate an electromagnetic field. When a capped container with a foil liner passes under the coil:

1. The aluminum foil absorbs the energy.

2. Heat is generated in the foil.

3. The polymer layer melts.

4. The polymer bonds to the container’s lip.

5. The cap remains tightly sealed, creating a hermetic, tamper-proof closure.

Because the process is non-contact, it is safe for heat-sensitive products and maintains the original product quality.

---

Applications

Food & Beverage:

• 5L edible oil bottles

• Large sauce and syrup containers

Pharmaceuticals & Nutraceuticals:

• Protein powder tubs

• Vitamin jars

Agrochemicals:

• Fertilizer bottles

• Pesticide containers

Industrial Chemicals:

• Lubricant cans

• Solvent containers

---

Benefits

• Tamper Evidence: Protects against unauthorized opening.

• Leak Prevention: Ideal for export and transport.

• Extended Shelf Life: Airtight sealing prevents contamination.

• Brand Protection: Enhances consumer trust.

• High Efficiency: Supports continuous production.

---

Build Quality & Design

The MS powder-coated body resists corrosion and wear. The coil housing is precision-engineered to ensure uniform heat distribution across large caps. All components are industrial-grade, ensuring long operational life with minimal downtime.

---

Operation Guide

1. Set Power Level based on liner type and container material.

2. Place Container on conveyor or work surface under sealing head.

3. Activate Machine — coil energizes and seals liner.

4. Inspect Seal for uniform bonding.

---

Compliance & Safety

The Sonic 500C complies with global packaging safety standards and is equipped with:

• Overheat Protection

• Overvoltage Protection

• Emergency Stop

• Error Alerts

---

Competitive Advantages

• Larger sealing range than standard models

• Digital precision control

• Low maintenance cost

• Suitable for multi-industry use

---

 What’s in the Box

• Sonic Industries 500C Induction Sealing Machine

• Power cable

• Instruction manual

• Spare fuses

• Liner test kit

---

14. FAQ

Q1: What is the maximum cap size the Sonic 500C can seal?
        135mm in diameter.

Q2: Can it seal glass jars?
        Yes, with compatible liners.

Q3: Does it require water cooling?
        No, it uses an efficient air-cooling system.

Q4: What industries use the 500C?
         Food, pharma, agrochemical, cosmetics, and industrial chemicals.

Q5: How fast can it seal?
        Up to 50 containers per minute.

Q6: Can I adjust sealing power?
        Yes, via the digital control panel.

Q7: Is it portable?
        Yes, compact but heavy-duty.
