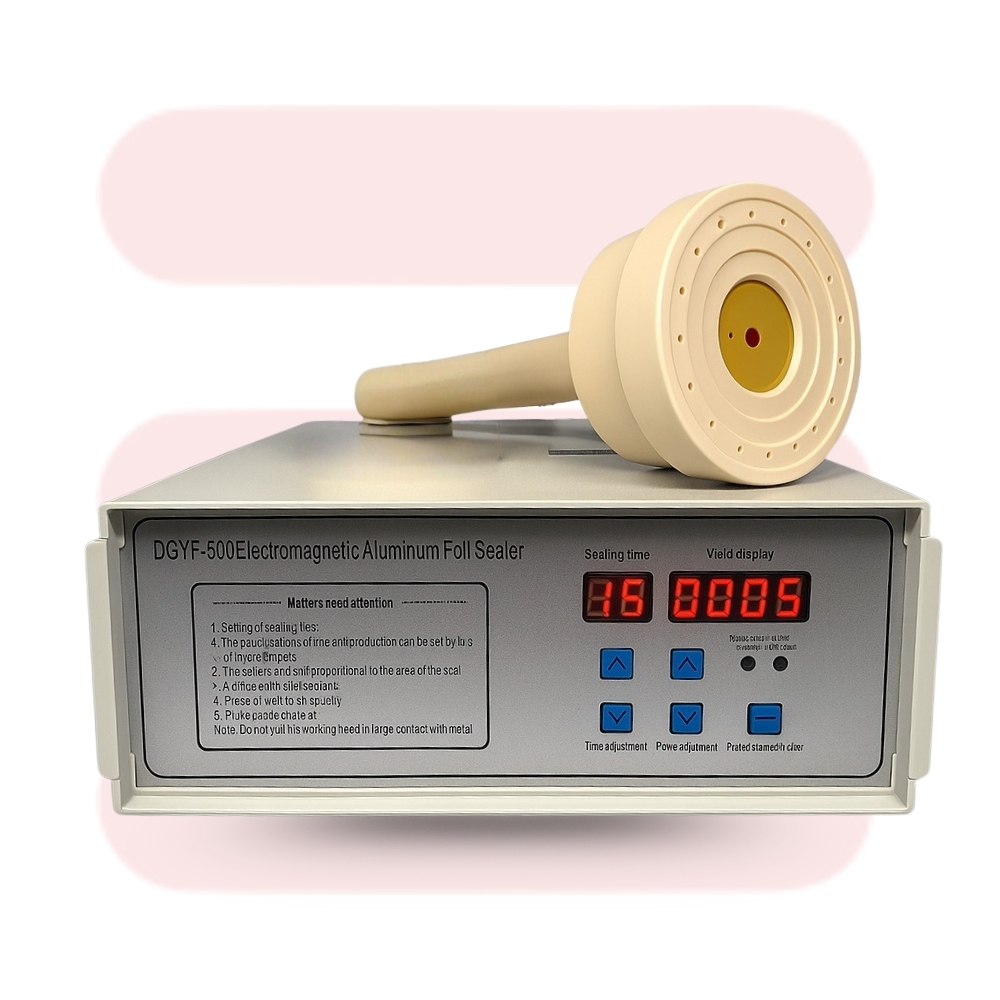

Sonic Industries 600A Induction Sealing Machine (20mm to 100mm Cap Diameter)

Description

Introduction

         In the world of industrial packaging, precision sealing is not just a finishing step — it’s a brand’s first promise to the customer. Whether you’re bottling mineral water, packing nutritional supplements, or filling household chemicals, an improperly sealed product can mean loss of freshness, contamination risks, and brand damage.

        The Sonic Industries 600A Induction Sealing Machine eliminates these risks by providing airtight, tamper-evident, and leak-proof seals for medium-sized caps (20–100mm). Built for high-volume production lines, the 600A combines cutting-edge electromagnetic induction technology with a rugged, air-cooled design to ensure consistent performance shift after shift.

---

What is the Sonic Industries 600A?

The Sonic 600A is a medium-cap range, heavy-duty induction sealing machine engineered for businesses that need:

• Speed without compromising seal quality

• Flexibility to handle multiple container materials

• Durability for 24/7 industrial use

By using contactless electromagnetic heating, the 600A bonds a foil liner inside the cap to the container lip. This method:

• Preserves product freshness

• Prevents leaks during shipping

• Offers visible tamper evidence to end users

It’s especially valuable for manufacturers in food & beverage, pharmaceuticals, cosmetics, and chemical industries, where quality control and compliance are non-negotiable.

---

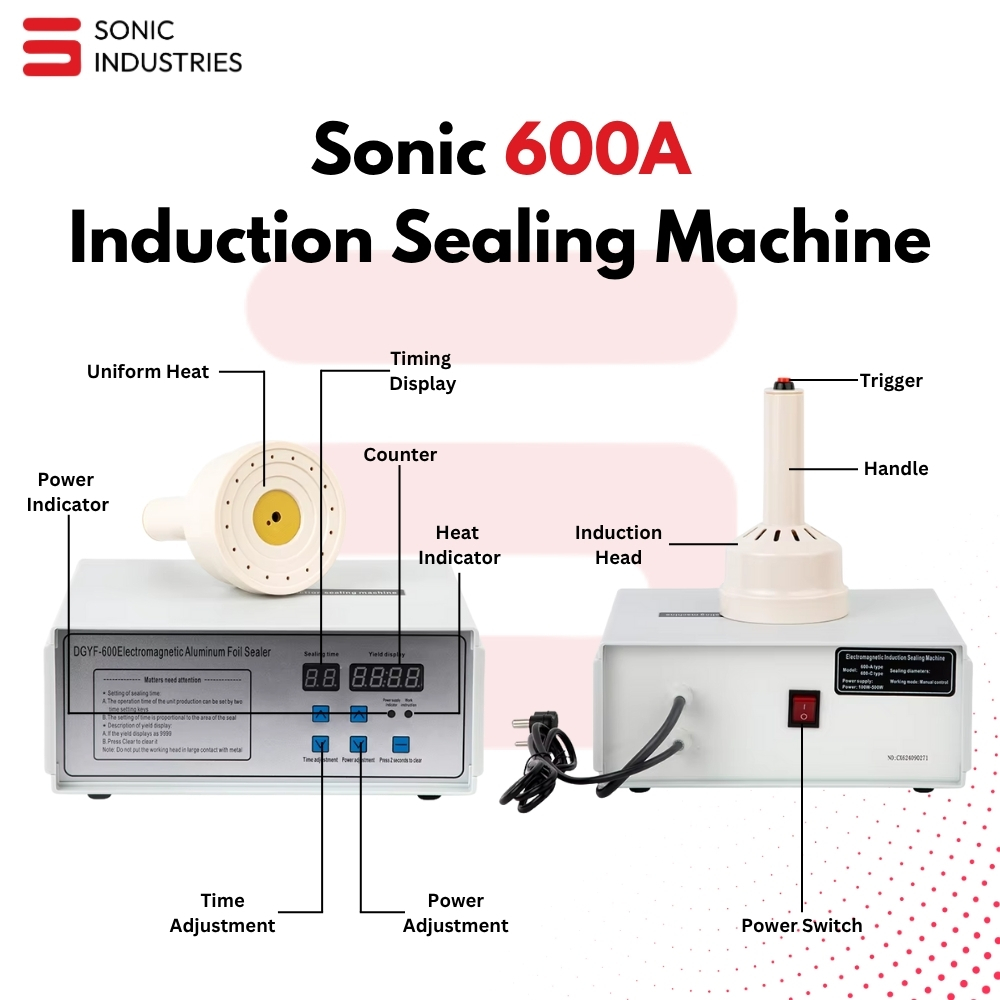

Key Features – Designed for Industrial Demands

• Cap Diameter Range: 20–100mm

• Heavy-Duty Build: Mild steel body with powder coating for corrosion resistance

• Air-Cooled Technology: Eliminates the need for complex water-cooling setups

• Digital Power Control: Adjust sealing intensity for different liners and materials

• Multi-Material Compatibility: PET, HDPE, PP, glass containers

• Safety First: Overheat protection, overvoltage safeguards, and emergency stop button

• Compact Footprint: Fits seamlessly into existing production lines

---

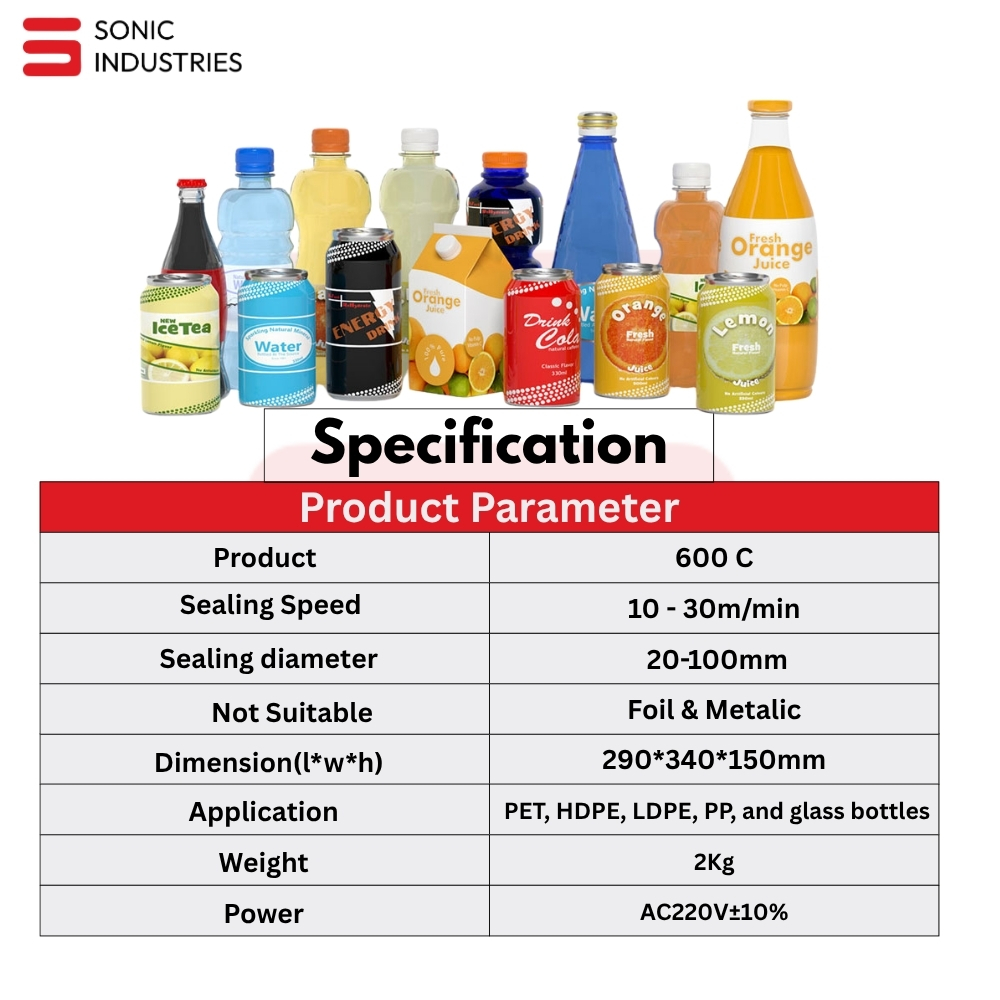

Technical Specifications

---

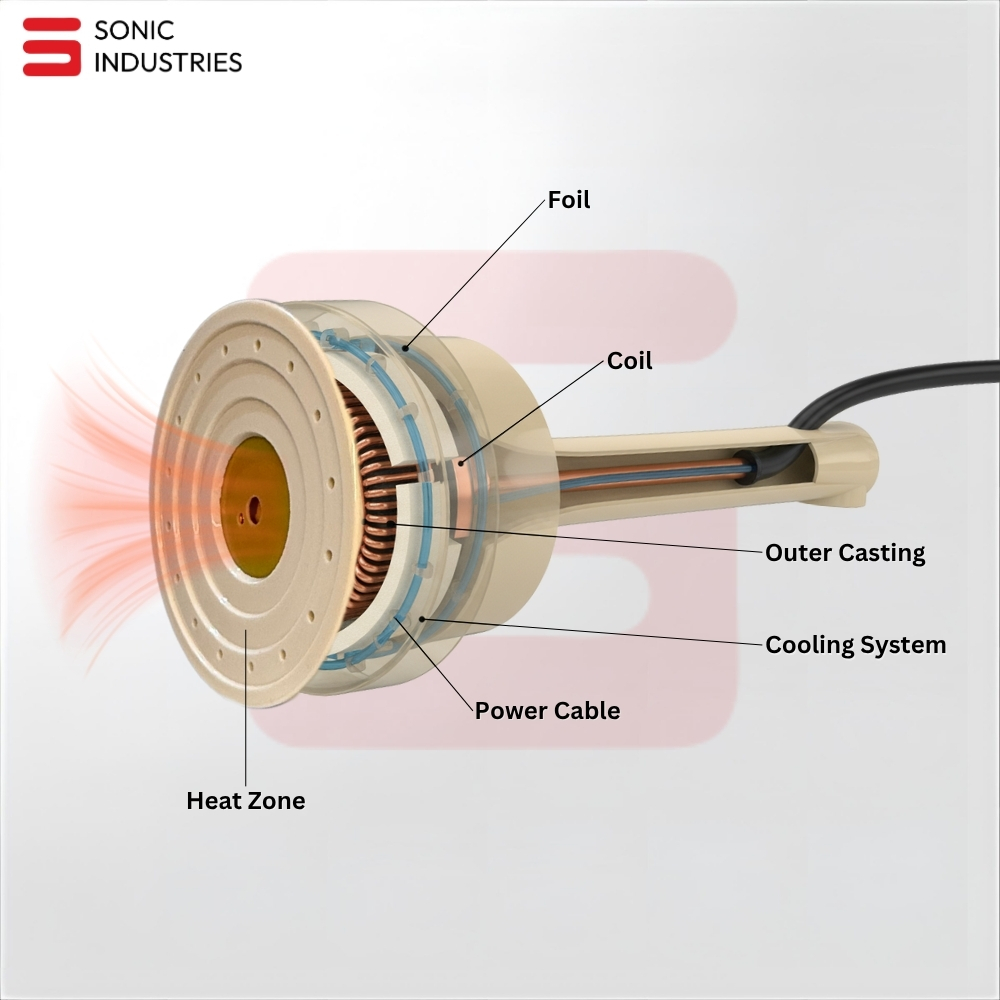

How Induction Sealing Works (Educational for Buyers)

Induction sealing is a non-contact process that uses an electromagnetic field to heat an aluminum foil layer inside a cap. Here’s the process:

1. Electromagnetic Induction – The sealing head generates a magnetic field.

2. Foil Heating – The aluminum foil liner heats rapidly.

3. Polymer Layer Melting – The polymer coating bonds to the container’s rim.

4. Seal Formation – Creates an airtight, tamper-evident seal.

Advantages of this method:

• No adhesives or external heat sources needed

• Works with filled containers without damaging contents

• Safe for heat-sensitive products

---

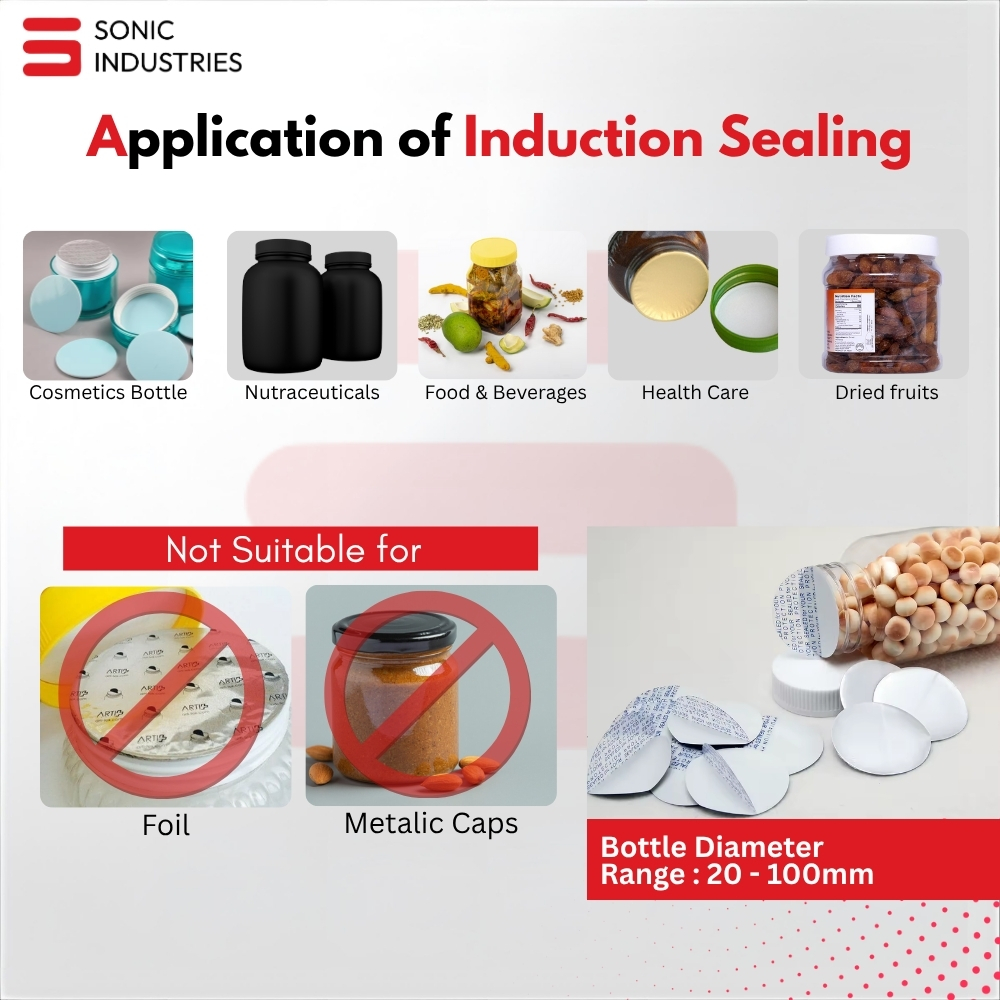

Applications – Industries That Benefit

Food & Beverage

• Bottled water

• Juices & milk

• Edible oils

Pharmaceuticals

• Medicine bottles

• Vitamin jars

• Herbal supplements

Cosmetics

• Creams & lotions

• Shampoos & conditioners

Chemicals

• Cleaning agents

• Agrochemicals

---

Benefits – Why Choose the Sonic 600A

• 100% Tamper Evidence for consumer safety

• Leak Prevention during transport and storage

• Extended Shelf Life by preventing oxygen/moisture ingress

• Fast Return on Investment through reduced product loss

• Energy Efficiency with air cooling and optimized electronics

---

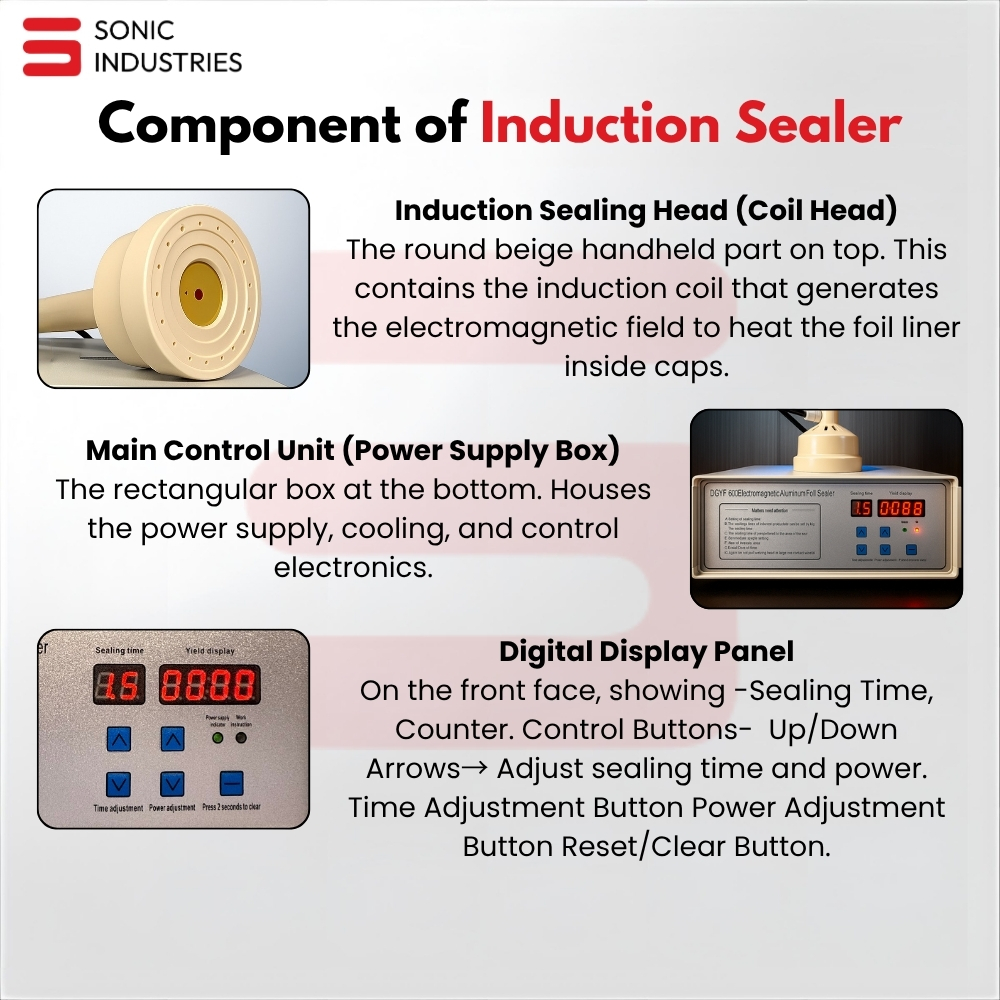

Build Quality & Durability

Every Sonic 600A is manufactured with industrial-grade components, including:

• Powder-coated MS frame for corrosion protection

• High-efficiency induction coil for uniform heating

• Heavy-duty electronics for long operational life

This ensures the machine can withstand continuous high-speed operation in demanding factory environments.

---

Step-by-Step Operation

1. Power On the unit

2. Set Power Level based on cap size & material

3. Align Container under the sealing head

4. Activate Seal cycle

5. Check Seal Quality before packaging

---

Maintenance

• Daily: Wipe machine exterior clean

• Weekly: Inspect power connections

• Monthly: Check cooling fan operation

• Yearly: Full calibration service

---

What’s in the Box

• Sonic Industries 600A Sealing Unit

• Power Cord

• User Manual

• Sample Induction Liners

• Spare Fuse Kit

---

FAQ

Q1: What cap size does the 600A support?
        20–100mm.

Q2: Can it seal glass jars?
         Yes, with suitable liners.

Q3: Is it portable?
        Yes, but built for industrial use.

Q4: How fast can it seal?
        Up to 70 containers per minute.

Q5: Does it require water cooling?
        No, it uses efficient air cooling.
