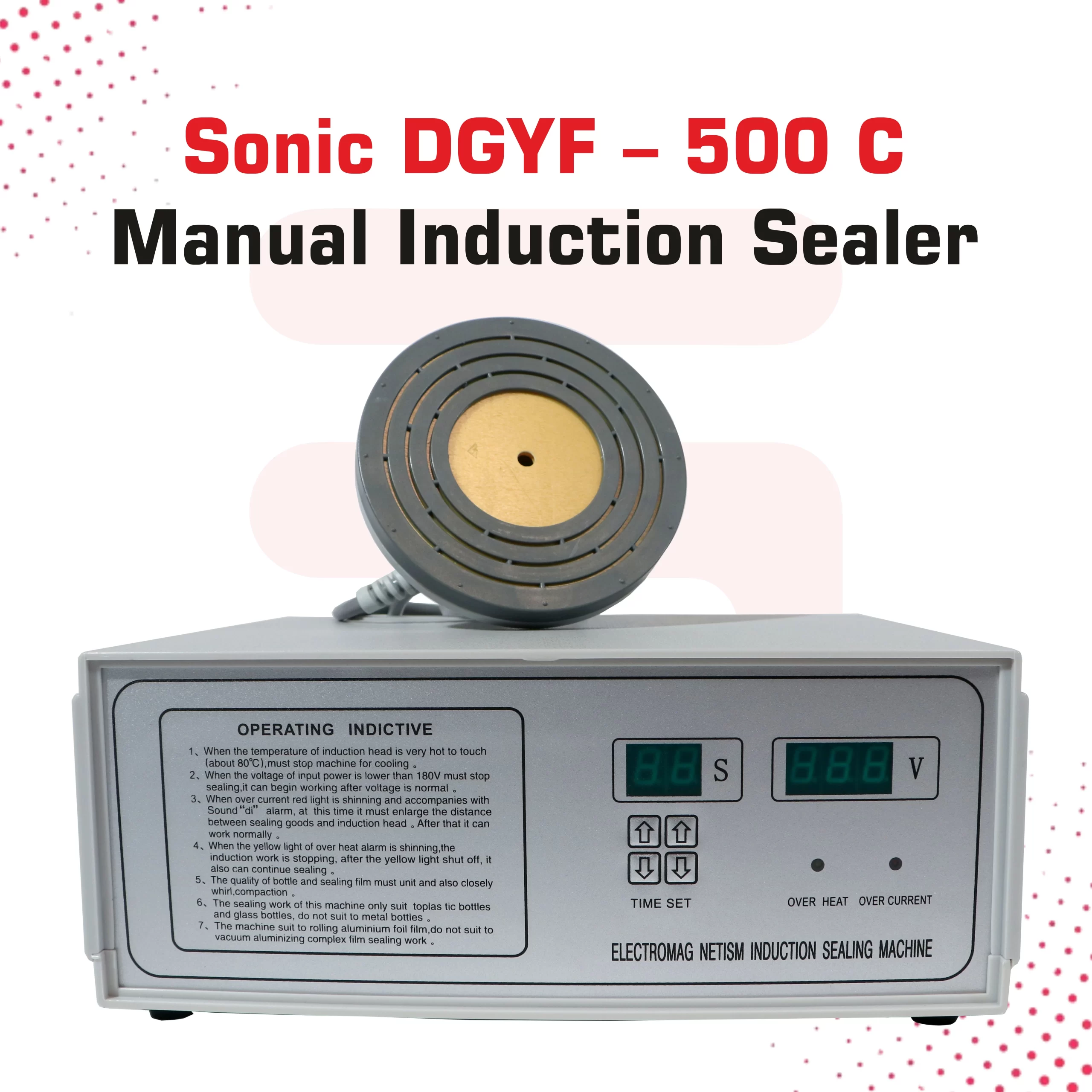

Heavy Duty Induction Sealing Machine 500C – Industrial-Grade Foil Sealer for High-Speed Bottle Packaging | Sonic Industries
Product Summary

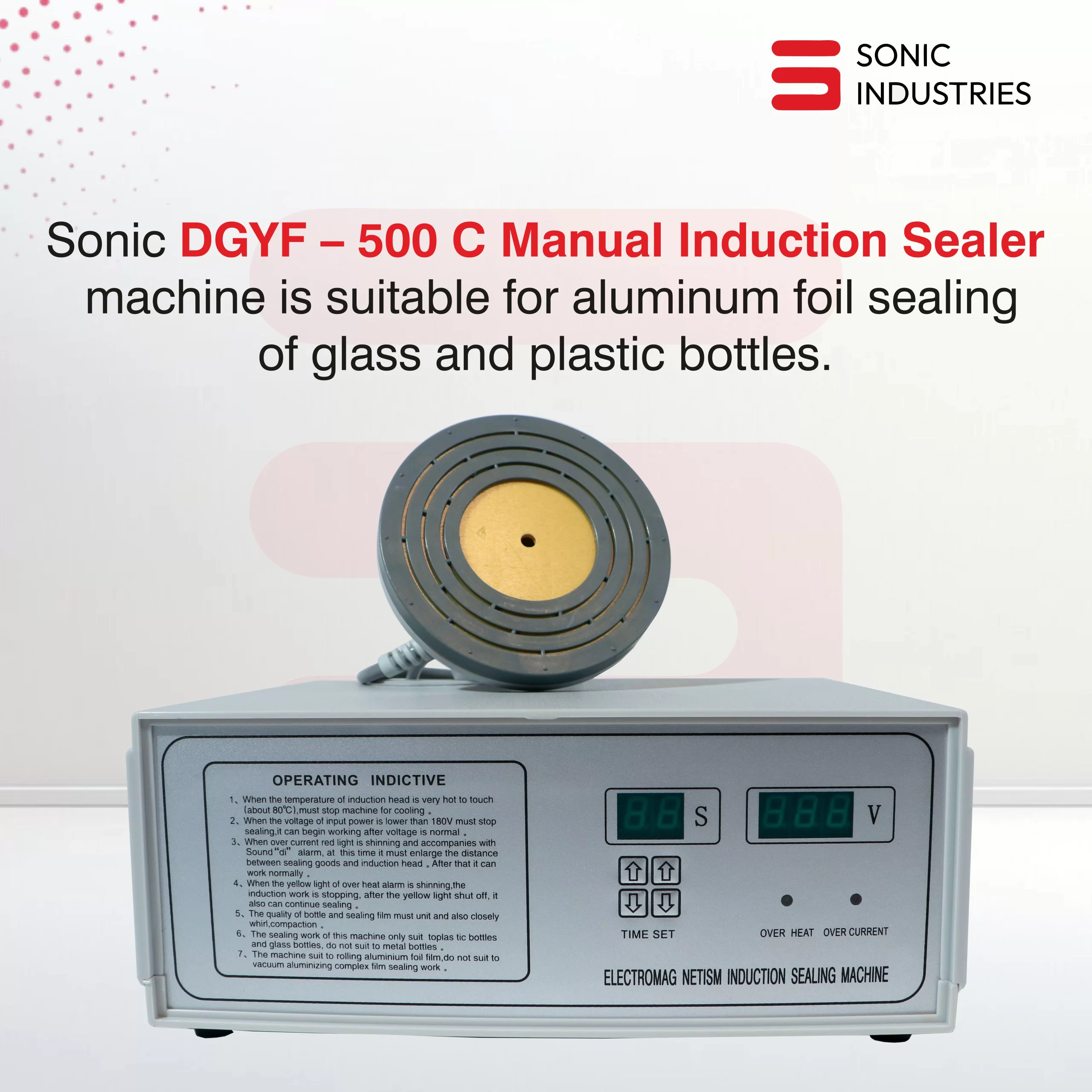

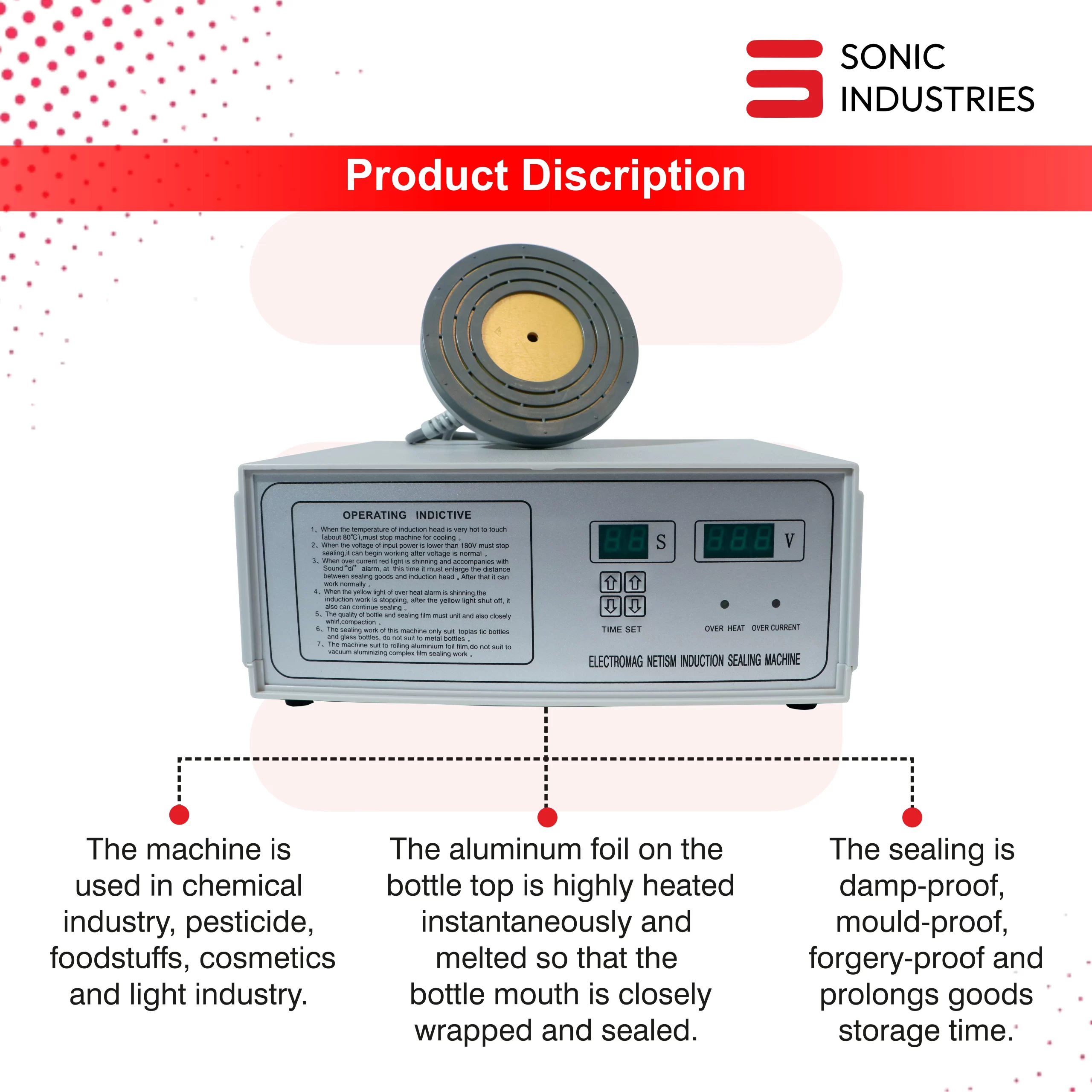

The Heavy Duty Induction Sealing Machine 500C by Sonic Industries is a high-performance, industrial-grade electromagnetic induction foil sealing machine designed for continuous, high-volume packaging operations. Equipped with a powerful sealing system, durable construction, and precision digital controls, the Heavy Duty Induction Sealing Machine 500C is built to meet the needs of medium to large-scale manufacturers in sectors such as pharmaceuticals, food and beverages, cosmetics, agrochemicals, and chemicals.
Capable of sealing bottle caps ranging from 20mm to 130mm, the 500C ensures tamper-evident, leak-proof, and hygienic aluminum foil seals on PET, HDPE, LDPE, PP, and glass containers. Whether you’re sealing syrup bottles, edible oil jars, or pesticide containers, this machine delivers consistent results at scale.
With advanced features such as smart LCD interface, built-in air-cooling system, and real-time error diagnostics, the Sonic 500C is engineered for reliability, speed, and ease of use in demanding industrial environments.
Top Features at a Glance
Seals cap diameters from 20mm to 130mm
Heavy-duty construction with MS/SS options
High sealing speed: up to 60 bottles/minute
Digital control panel with timer, power settings & diagnostics
Induction head with air-cooled coil – long operation without overheating
Compatible with PET, HDPE, LDPE, PP, and glass bottles
Leak-proof and tamper-evident sealing for export and domestic use
Suitable for round, square, or rectangular bottles
Built-in overheat, overload, and short-circuit protection
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Sonic 500C Heavy Duty Induction Sealer |
| Sealing Technology | Electromagnetic Induction Heating |
| Cap Diameter Range | 20mm – 130mm |
| Bottle Material | PET, HDPE, LDPE, PP, Glass |
| Power Output | 1000W – 1300W |
| Voltage Requirement | 220V AC, 50Hz, Single Phase |
| Sealing Speed | 30 – 60 bottles/min (depending on cap size & material) |
| Timer Range | 0.1 to 9.9 seconds |
| Control Interface | LCD Digital Display |
| Operation Type | Semi-Automatic (with handheld wand or stand-mounted coil) |
| Sealing Head Type | Air-cooled induction coil |
| Cooling System | Built-in dual-fan cooling |
| Machine Body | Powder-Coated Mild Steel / Optional Stainless Steel Upgrade |
| Dimensions (L×W×H) | Approx. 400mm × 350mm × 200mm |
| Machine Weight | Approx. 12–15 kg |
| Protection Mechanisms | Overheat, Overload, Short Circuit, Auto Shutdown |
Applications Across Industries
| Industry | Product Examples |
|---|---|
| Pharmaceuticals | Tonics, syrups, supplements, sanitizers |
| Food & Beverages | Spices, ghee, pickles, oils, juices, sauces |
| Cosmetics & Ayurveda | Hair oils, creams, herbal gels, churna jars |
| Agrochemical & Chemicals | Fertilizers, pesticides, solvents, cleaning liquids |
| Nutraceuticals | Protein powders, oils, tablets, energy drinks |
| Veterinary & Animal Care | Liquid meds, shampoos, vitamin bottles |
| FMCG & Homecare | Shampoos, cleaning agents, detergents, perfumes |
What Makes the Sonic 500C Stand Out?
1. Built for Industrial Use
The machine is made from high-quality components, ensuring stable performance over long operational cycles in busy factories.
2. Powerful Sealing Performance
Its 1300W output ensures rapid sealing of bottles with wide caps, thick liners, or dense materials.
3. Professional, Secure Packaging
Helps brands achieve tamper-proof and leak-proof sealing for both domestic and international distribution.
4. Precise Control
With digital timer, adjustable power settings, and visual indicators, operators can fine-tune for each product line.
5. Cool Operation, Even in Hot Environments
The air-cooled sealing coil allows extended usage without overheating, ensuring smooth production flow.
Sealing Process – Step by Step
-
Prepare the Product
Fill the bottle and screw the cap tightly with the induction foil liner inside. -
Place the Bottle
Position the bottle directly under or beside the induction head depending on configuration. -
Adjust Settings
Set the desired sealing time and power using the digital interface. -
Initiate Sealing
Trigger the seal using a button or optional foot switch. Hold the coil for the preset time. -
Check the Seal
After sealing, allow the bottle to cool for a few seconds. Check the foil for tightness.
Recommended Sealing Times (Guide)
| Cap Size | Bottle Type | Sealing Time (Approx.) |
|---|---|---|
| 20mm–35mm | Small bottles (e.g., eye drops, tonics) | 0.5s – 1.2s |
| 40mm–60mm | Medium bottles (e.g., oils, syrups) | 1.2s – 2.5s |
| 70mm–100mm | Large jars (e.g., churna, ghee) | 2.5s – 3.5s |
| 110mm–130mm | Wide mouth containers (e.g., bulk packs) | 3.5s – 4.5s |

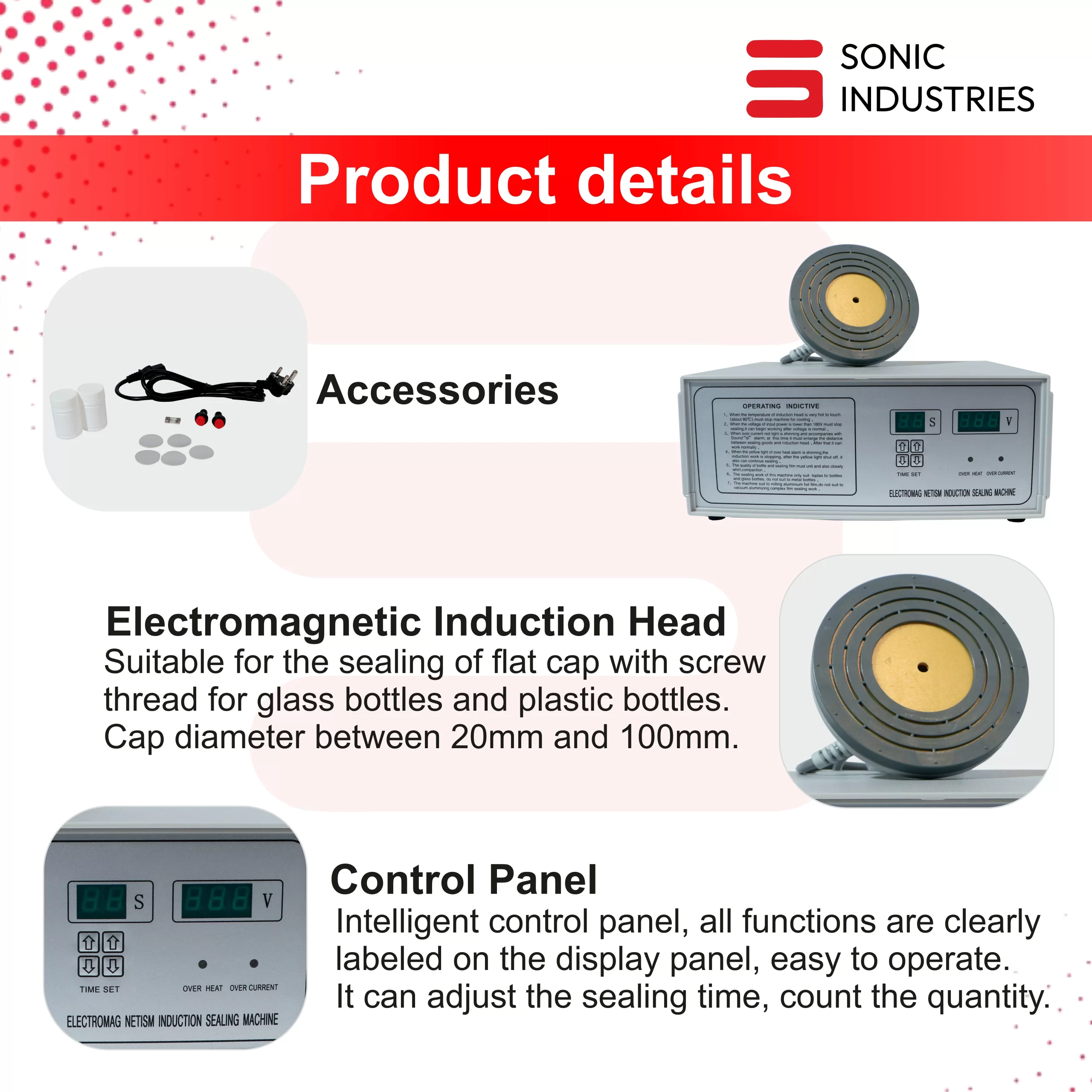

Digital Control Panel Features
-
LCD Screen with Timer and Power Settings
-
Adjustable Sealing Duration (0.1 – 9.9 sec)
-
Power Level Selection (1 – 10)
-
Fault Indication: Overload, Coil Error, Overheat
-
Seal Counter (optional)
-
Error Code Display for Quick Troubleshooting
Compatible Bottle Materials
PET Bottles
HDPE Containers
LDPE Bottles
PP Plastic Bottles
Glass Bottles (with plastic screw caps)
Wide-Mouth Plastic Jars
Square or Custom Molded Containers
Foil Sealing Requirements
-
Cap must include a heat-sealable aluminum foil liner
-
Foil must have compatible polymer layer based on bottle material
-
Bottles must be screw-capped and dry on the rim
-
Bottle neck must be flat and even for effective seal
Common Troubleshooting
| Problem | Cause | Solution |
|---|---|---|
| Weak or incomplete seal | Insufficient power or short duration | Increase time or power level |
| Burnt foil | Excessive heating | Reduce timer or power |
| No power to coil | Coil disconnected | Reconnect coil plug properly |
| Overheating error | Blocked air vents or fan failure | Clean vents or replace fan |
| Beeping continuously | Internal error / overload | Switch off, let it cool, reset |
Optional Add-Ons
-
Foot Switch Pedal for Auto Trigger
-
Bottle Holding Fixture or Conveyor Stand
-
Voltage Stabilizer (for fluctuating electricity)
-
Spare Induction Head
-
Stainless Steel Body Upgrade
-
Custom Cap Support Plates
Use Cases
Export-quality packaging for food/pharma
Industrial manufacturers with continuous sealing needs
Agrochemical plants sealing chemical containers
Herbal and Ayurvedic firms with oil/syrup products
E-commerce sellers needing spill-proof packaging
OEM bottlers working on multiple product lines
