Manual Foil Sealing Machine – Reliable & Affordable Cap Foil Sealer for PET, HDPE & Glass Bottles | Sonic Industries
Product Overview

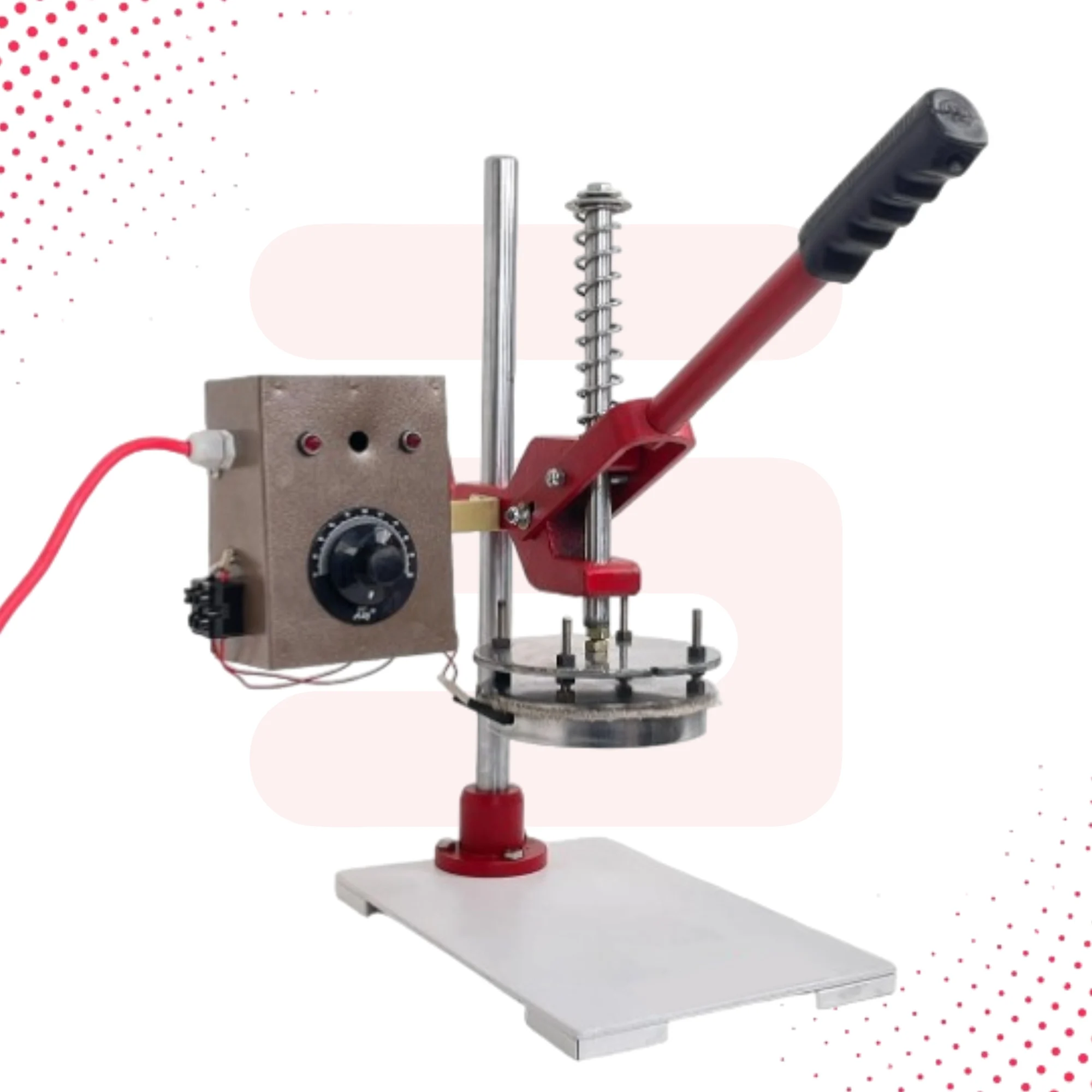

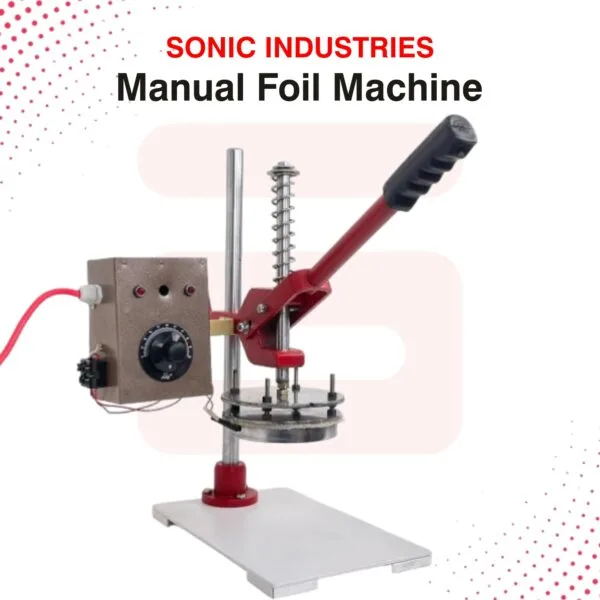

The Manual Foil Sealing Machine by Sonic Industries is a compact, easy-to-use, and economical solution for sealing aluminum foil lids onto plastic, PET, HDPE, and glass bottles. This tabletop machine is ideal for startups, home-based units, small manufacturing setups, and labs that require reliable leak-proof and tamper-evident packaging for liquid, semi-liquid, and powdered products.
Operating without electricity, the manual foil sealer is designed to apply heat and pressure manually, sealing foil caps using a pre-cut aluminum foil liner or wad. It delivers high-quality, air-tight seals with minimal investment and is best suited for batch production, trial runs, R&D, and low-volume packaging operations.
Built with a sturdy mechanical frame and ergonomic lever system, this machine ensures uniform heat distribution and firm adhesion, making it an ideal choice for food, pharma, ayurvedic, and cosmetic packaging.
Key Features Manual Foil Sealing Machine :
Manual Operation – No Power Required
Suitable for Plastic, PET, Glass Bottles
Seals with Pre-Cut or Wad-Type Foil Liners
Leak-Proof, Tamper-Evident Sealing
Compact, Tabletop, and Portable Design
Simple Lever-Action Heat Seal Application
Ideal for Small-Scale Production and Sampling
Low Maintenance – Durable Mechanical Construction
Technical Specifications
| Parameter | Details |
|---|---|
| Model | Manual Foil Sealing Machine |
| Operation Type | Hand-Operated with Manual Lever |
| Power Source | No electricity required |
| Sealing Diameter | 20mm – 100mm (customizable) |
| Sealing Method | Manual pressure with heat-conductive die |
| Construction Material | MS/SS structure with powder coating or SS finish |
| Machine Dimensions (L×W×H) | Approx. 350mm × 200mm × 600mm |
| Machine Weight | Approx. 10–12kg |
| Heating Mechanism | External heat source or built-in heater (optional upgrade) |
| Production Speed | 6–12 bottles per minute (operator dependent) |
| Compatible Foils | Aluminum foil liners with heat-seal polymer coating |
| Bottle Compatibility | HDPE, PET, PP, Glass bottles |
| Seal Type | Wad-style foil seal (inserted under cap) or die-punched foil |
Applications Across Industries
| Industry | Application Examples |
|---|---|
| Food & Beverage | Honey jars, spice bottles, pickles, sauces, juice bottles |
| Pharmaceuticals | Syrups, tonics, herbal decoctions, tablets, powders |
| Cosmetics & Ayurvedic | Oils, balms, creams, face packs, herbal remedies |
| Chemical & Agro Products | Lubricants, oils, fertilizers, insecticides |
| Pet & Veterinary Care | Supplements, powders, oils, syrups |
| Home & DIY Brands | Small-scale cosmetic and culinary product lines |
Why Choose a Manual Foil Sealing Machine?
Cost-Effective Packaging Solution
Perfect for Startups & Pilot Batches
Portable and Lightweight
No Electricity = No Downtime
Great for Off-Grid or Mobile Packaging Units
Minimal Maintenance
Immediate Return on Investment
How It Works – Step by Step
-
Bottle Preparation:
Fill the container and place the foil liner (wad or pre-cut seal) on the bottle mouth. -
Machine Setup:
Place the bottle under the heating die or pressure plate. -
Manual Pressure Application:
Pull down the lever or press the sealing arm to apply uniform pressure and heat on the foil. -
Seal Formation:
The foil liner adheres to the container mouth under applied heat and pressure, creating a tamper-evident and airtight seal. -
Cooling and Collection:
Allow the bottle to cool for a few seconds and remove it for further packaging.
Types of Manual Foil Sealers by Sonic
| Model | Application |
|---|---|
| Basic Manual Sealer | Low-cost solution for 100–500 bottles/day |
| Manual with Heater Plate | For consistent heat and better seal |
| Dual-Head Manual Sealer | Two sizes or two bottles at once |
| Portable Travel Sealer | Field trials, mobile pharma vans |
Benefits of Sonic Manual Foil Sealer
1. Tamper-Evident Packaging
Gives visible assurance to customers that the bottle has not been opened before purchase.
2. Leak-Proof Transportation
Prevents product spillage during transit, especially useful for exports.
3. Eco-Friendly & Energy Saving
Does not consume power, ideal for environmentally conscious operations.
4. Low Maintenance & No Skill Required
Anyone can operate it with basic training. No technical background needed.
5. Ready for Batch & Small-Scale Runs
Ideal for testing new products or seasonal/small-batch items.
Sealing Materials Compatible
-
Aluminum Foil Seals with Heat-Seal Coating
-
One-Piece Wads (foil + liner)
-
Two-Piece Seals (foil + pulp backing)
-
Induction Sealing Liners (for manual pressure use)
-
Printed or Branded Aluminum Foils
Troubleshooting Guide
| Issue | Cause | Solution |
|---|---|---|
| Foil not sealing | Low heat or pressure | Increase sealing pressure or time |
| Seal uneven | Misalignment of bottle and die | Reposition bottle |
| Foil sticks to die | Excess heat or dirty die | Clean die or lower heat |
| Seal peels off easily | Poor foil or wrong liner | Use high-quality foil with correct coating |
| Seal time varies | Operator inconsistency | Train for uniform pressure and timing |
Comparison: Manual vs Induction Sealer
| Feature | Manual Foil Sealer | 600A Induction Sealer |
|---|---|---|
| Power Requirement | None | 220V AC |
| Cap Diameter Supported | 20mm–100mm | 20mm–100mm |
| Production Speed | 6–12 BPM (manual) | 30–50 BPM |
| Best for | Small batches, low-cost ops | Medium-to-large-scale production |
| Automation Level | Manual | Semi-Automatic |
| Initial Investment | Low | Medium |
Ideal For
-
Startups and new product launches
-
Herbal brands packing oils, powders, syrups
-
Small-batch food or pharma manufacturing units
-
R&D departments and quality testing labs
-
Remote or mobile units (no electricity zones)
-
Homemade products: jams, oils, health drinks
Customizations Available
-
Different die sizes (20mm, 25mm, 30mm… up to 100mm)
-
Multi-size sealer head
-
MS or Stainless Steel body
-
Heater plate upgrade
-
Branding stickers or customized nameplates
-
Portable trolley attachment
