Online TIJ Printer

High-Speed Thermal Inkjet Batch Coding System for MRP, Expiry Date, Barcode & QR Code Printing

---

 Introduction

In modern production and packaging environments, speed, traceability, compliance, and flexibility are non-negotiable. Manufacturers across industries—food, pharmaceuticals, FMCG, cosmetics, and chemicals—need reliable, efficient, and high-resolution printing systems that can integrate directly onto their production lines.

The Online TIJ Printer (Thermal Inkjet Printer) is an advanced inline coding solution engineered to deliver sharp, permanent, and fast batch coding on a wide range of packaging materials. Using HP 45A cartridge-based technology, this compact printer offers zero-maintenance, high-speed, and contactless printing, suitable for both startup units and large-scale manufacturing operations.

It is designed to print on cartons, labels, pouches, bottles, sachets, blister packs, foil wrappers, and other packaging surfaces—producing legible and smudge-proof prints of batch numbers, manufacturing dates, expiry dates, MRP, QR codes, barcodes, serial numbers, and logos.

---

 Technical Specifications

---

 What’s Included

•  TIJ Print Head (12.7mm)

•  Ink Cartridge (Solvent or Water-Based)

•  Photocell Product Sensor

•  5” or 7” Touchscreen Controller

•  Mounting Brackets

•  Power Adapter, Cables & Manual

•  Installation & Operation Videos

•  Optional: Encoder, SS Body, Dual Print Head

---

 Key Features & Functional Highlights

True Inline Batch Coding System

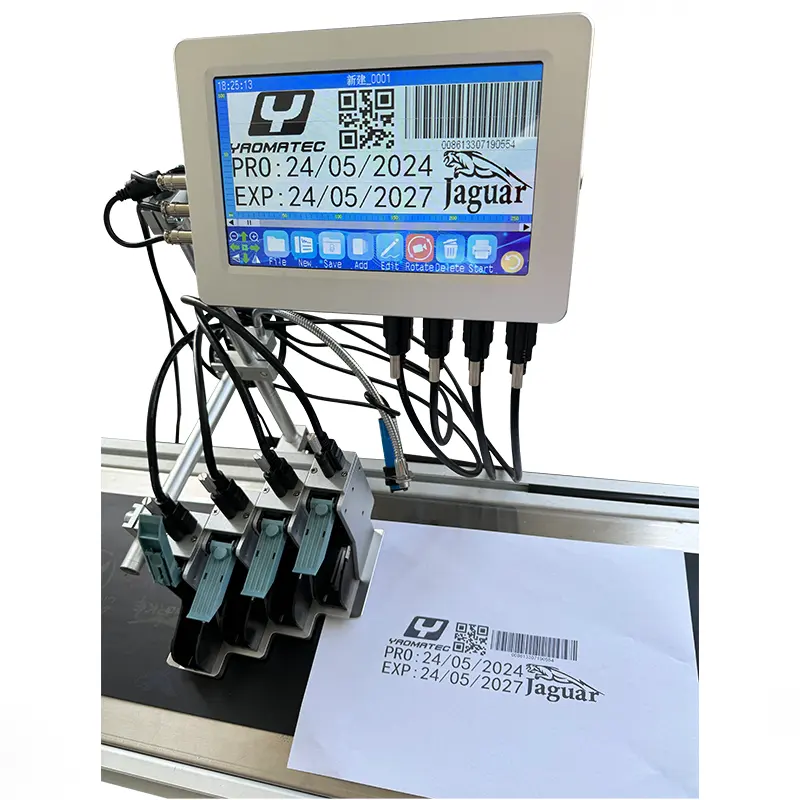

The Online TIJ Printer mounts directly onto conveyors or packaging lines, printing in real-time as products pass underneath or beside the print head.

High-Speed Performance (Up to 60 m/min)

With real-time sensing and instant ink-drying, this system handles fast-moving production lines, including bottle fillers, pouch sealers, label applicators, or carton tapers.

Maintenance-Free Design

TIJ printers do not require solvents, filters, or pressure pumps. The printhead is built into each cartridge, meaning no downtime for cleaning or calibration.

Precision Printing on Any Surface

Compatible with porous (paper, cartons) and non-porous (laminates, PET, foil, plastic, HDPE) substrates, offering sharp prints every time.

Touchscreen Layout Editor

Create and edit print content such as:

•  Batch Numbers

•  MFG / EXP Dates

•  MRP / Price

•  QR Codes / Barcodes

•  Shift Codes / Serial Numbers

•  Custom Logos and Brand Names

No external software is needed.

Dynamic Data Printing

Supports:

• Auto Date & Time Updates

• Incremental/Decremental Serial Numbers

• Shift-Based Printing (A, B, C, etc.)

• GS1 Barcode/QR Encoding

---

 Print Capabilities

---

 Applications by Industry

---

 Advantages Over Other Coding Methods

---

 Installation & Integration

5-Step Setup:

1. Mount the printer on the conveyor using adjustable brackets.

2. Insert the ink cartridge (water-based for porous or solvent-based for non-porous).

3. Plug in the product sensor to detect the item’s position.

4. Connect the power supply to the controller.

5. Use the touchscreen to design and select the print layout.

---

 Ink Options

Colors Available: Black, Red, Blue, Green, Yellow, White (depending on ink type)

---

 Safety & Environment

• Non-pressurized, safe-to-use ink system

• No volatile solvents or exhausts

• Emergency stop switch (for integrated systems)

• Silent operation suitable for clean rooms

• Cartridges are recyclable and spill-proof

---

 Product Summary Table

---

 Who Should Use This Printer?

•  SMEs and MSMEs looking for affordable inline printing

•  Manufacturers with fast-moving conveyor lines

•  Exporters needing QR/Barcode compliance

•  Contract packers printing multi-brand SKUs

•  Food and pharma companies with clean-room operations

•  Retail and logistics providers requiring batch traceability

---
