Sonic Industries 7-Inch Printer with 12-Inch Conveyor – High-Quality Printing & Efficient Material Handling

Description

Sonic Industries 7-Inch Printer with 12-Inch Conveyor

India’s Most Powerful High-Coverage Batch Coding & Packaging Solution

In a packaging world where speed, compliance, clarity, and automation are critical, a standard printer just won’t cut it. Introducing the Sonic Industries 7-Inch Printer with 12-Inch Conveyor—a high-performance batch coding system designed for large-area printing, multi-lane pouch lines, and outer carton coding with unmatched precision.

Built on world-class TIJ 2.5 technology, this machine offers 7 inches of printing height in a single pass, delivering crisp logos, MRP, expiry, batch, QR codes, and barcodes on wide-format packages. The system is coupled with a heavy-duty 12-inch conveyor, perfect for stabilizing large pouches, jars, tins, and cartons for accurate printing at high speeds.

Whether you’re a high-volume manufacturer, contract packer, or exporter, this combo gives you the power of industrial coding with the simplicity of plug-and-play design.

 What Makes the 7-Inch Printer + 12-Inch Conveyor Unique?

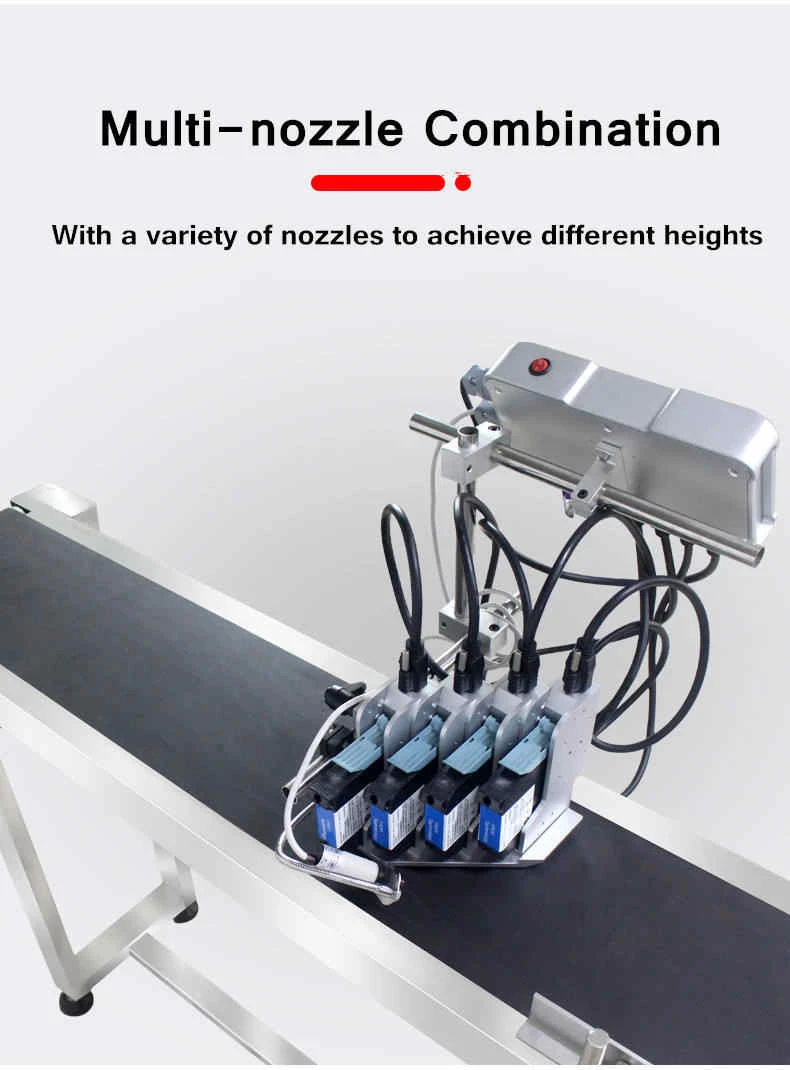

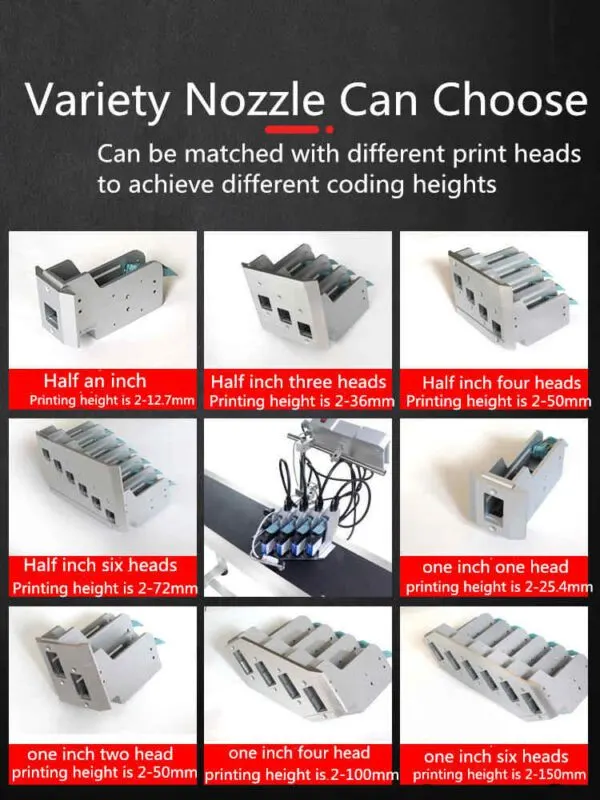

The 7-Inch Printer with 12-Inch Conveyor  from Sonic Industries features dual or triple TIJ heads aligned seamlessly to produce continuous print coverage up to 177.8mm (7 inches). This allows it to print:

• Entire rows of pouches simultaneously (multi-lane lines)

• Large brand logos or promotional messages

• MRP, Expiry, Barcode, QR, License No., and warnings in one go

• Full-side printing on outer cartons or master boxes

The 12-inch conveyor is wider than standard setups, designed for:

• Heavy or oversized products (paint tins, cartons, 5-liter jars)

• Multi-lane pouch feeding

• Multi-product coding in one pass

---

Technical Specifications

---

 Compatible Products and Surfaces 7-Inch Printer with 12-Inch Conveyor :

 Packaging Types:

• Multi-lane horizontal FFS pouches

• Large laminated stand-up pouches

• Corrugated cartons & mono cartons

• Tin containers & metal drums

• HDPE / PET bottles & jars

• Foil packs & shrink sleeves

• Plastic buckets & bulk containers

 Surface Compatibility:

• LDPE, BOPP, PET

• Paper, kraft, cardboard

• Glass, metal, aluminum

• Wood, shrink film

• UV-coated or matte finish packaging

 Application by Industry 7-Inch Printer with 12-Inch Conveyor :

 Food & Beverage

• Print multi-lane MRP/Expiry on masala, snacks, dry fruits

• High-speed coding on 1kg+ pouches or family packs

• Export cartons with barcodes & certifications

 Pharmaceutical & Healthcare

• Strip packaging for tablets

• Master cartons with traceability info

• Batch printing on white medical jars, caps & bottles

 Cosmetics & Personal Care

• Multiple SKU bottle coding in one pass

• Lot and Expiry on laminated tube packs

• Branded QR code on outer boxes

 Chemicals, Paints & Lubricants

• 20-liter HDPE cans, buckets & tins

• Industrial-grade carton printing

• Barcode tracking for warehouse & shipping

---

 Benefits of Sonic’s 7-Inch Printer with 12-Inch Conveyor

Ultra-Wide Printing: Eliminate multiple heads or separate passes. One pass = Full Print.

High-Speed Line Support: Ideal for 60–100 packs per minute lines.

Compact All-in-One System: Unlike CIJ, this unit requires no compressed air, no messy ink tanks, and no expensive maintenance contracts.

Low Ink Cost per Print: One cartridge prints up to 50,000 to 100,000 items, depending on coverage.

User-Friendly Interface: Train your team in under 30 minutes.

India-Optimized Build: Handles dust, voltage variation, and long operational hours with ease.

---

 Use Cases

1. Multi-Line Horizontal Pouch Packing
   Print on 3–4 pouches at once before sealing.

2. E-commerce Exporters
   Print scan-ready QR and barcodes directly on dispatch cartons.

3. Chemical Export Companies
   Include multilingual warnings, MRP, and batch data on metal or plastic drums.

4. Brand Owners
   Apply logos and anti-duplicate QR for traceability and authenticity.

---

 What’s Included

•  Sonic 7-Inch TIJ Printer

•  12-Inch Conveyor System (1m)

•  7-Inch Smart Controller

•  Mounting Frame + Adjustable Sensor

•  1 x Solvent Cartridge (Black)

•  Quick Start User Guide + Online Training Video

•  USB Stick for Logo/Data Upload

•  Power Supply with On/Off Control

---

 Optional Accessories

• Color cartridges (Red, Blue, Green, White)

• Stand with caster wheels

• Extra sensors for alternate detection

• Label applicator or vision system integration

• UV ink & curing system

• External encoder for auto speed sync

---

 Frequently Asked Questions (FAQs)

Q1: Can this print on large boxes or sacks?
         Yes. It’s designed for wide-format packaging like sacks, outer boxes, large tins, and more.

Q2: Can it run continuously in 3 shifts?
          Absolutely. This printer and conveyor are industrial-grade, made for long hours.

Q3: Is it difficult to change data like date or batch?
          Not at all. The date auto-updates. You can pre-schedule multiple templates.

Q4: How many lines can I print?
          You can print 5–6 lines or more, depending on font size and layout.

Q5: What is the minimum pouch size supported?
         The conveyor supports items as small as 50mm and as large as 400mm+ in width.
