Description
In the rapidly evolving landscape of manufacturing and packaging, efficiency, precision, and hygiene are the pillars of operational success. The Automatic Auger Powder Packing Machine is a cutting-edge packaging solution specifically designed for handling fine, semi-fine, and non-free-flowing powders. From spices and flours to pharmaceutical powders and cosmetic formulations, this machine is engineered to deliver high-speed, high-accuracy pouch filling with minimal human intervention.
Auger-based filling technology ensures that even the most challenging powders are dispensed uniformly and precisely into flexible packaging formats. This makes the Automatic Auger Powder Packing Machine a must-have in modern production facilities where consistency and product integrity are essential.

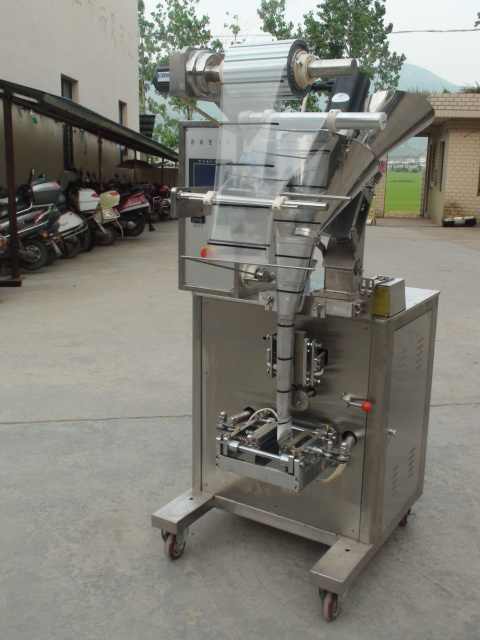

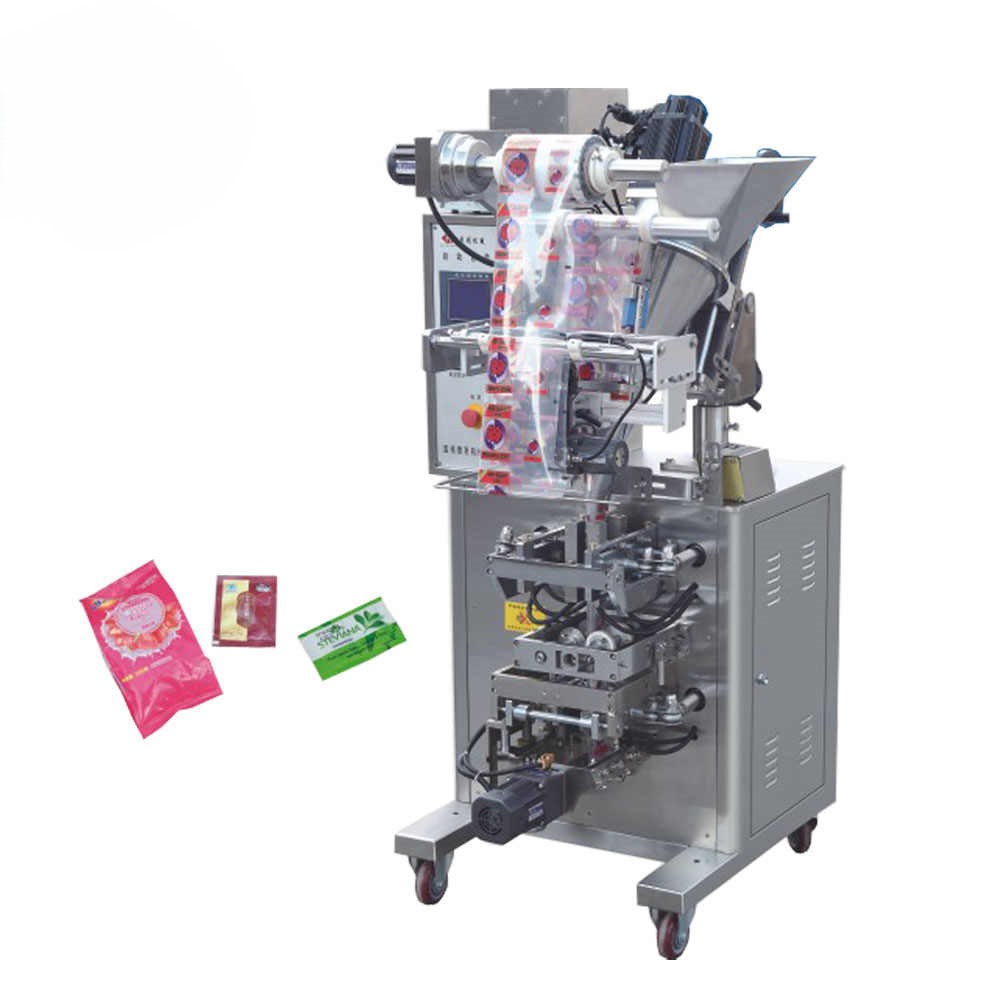

What is an Auger Powder Packing Machine?
An Auger Powder Packing Machine integrates an auger screw filling system with a vertical form fill seal (VFFS) unit. The auger screw, driven by a high-torque servo motor, is precisely calibrated to rotate and dispense an exact volume of powder per cycle. The vertical packing system automatically forms pouches from roll film, fills them with powder, and seals them—all in one seamless process.
This machine is perfect for applications requiring accurate fills, dust-free operations, and hygienic design. It is widely used in food processing, pharmaceuticals, chemicals, and cosmetic manufacturing.
Core Features
1. Servo Motor Driven Auger Filler
A high-precision servo motor controls the auger screw, allowing the system to deliver consistent fills every time. This eliminates product wastage due to overfilling or spillage.

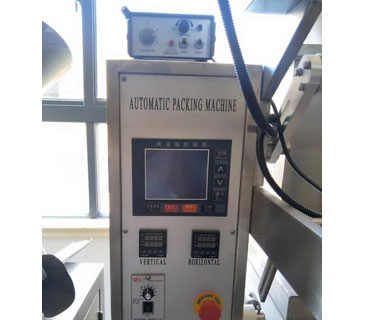

2. PLC Control with Touchscreen Interface
The machine features a smart, programmable logic controller (PLC) system with a vibrant HMI touchscreen display. Users can adjust pouch length, fill weight, temperature, and speed settings easily. Recipes for different products can be stored and recalled instantly.
3. Film Roll Feeding and Pouch Forming
The VFFS system creates pouches from laminated roll film. It can produce various pouch types like center seal, three-side seal, pillow pouches, and gusseted pouches, depending on the configuration.
4. High-Grade Stainless Steel Construction
To meet food and pharmaceutical hygiene standards, the machine is made from SS304 or optional SS316. The body is corrosion-resistant, durable, and easy to clean.
5. Auger Screw Configurations
Custom auger designs allow the machine to handle a wide range of powder densities, flow properties, and filling volumes. Screws can be changed easily for different powders or package sizes.
6. Dust Control and Clean Operation
Optional dust extraction systems ensure clean air around the machine, especially important for fine powders like talcum or spice blends.
Technical Specifications
- Filling Range 10g to 1kg (customizable)
- Packing Speed 20 to 50 pouches per minute
- Accuracy ±1 to 2%
- Film Roll Width Up to 420 mm
- Pouch Width 50 to 200 mm
- Pouch Length 60 to 300 mm
- Power Supply 220V/440V, 50/60Hz, 3 Phase
- Power Consumption 2 to 4 kW
- Air Pressure Required 6 to 8 CFM at 6 bar (if pneumatic system)
- Machine Frame SS304 / SS316 stainless steel
- Control System PLC with HMI touchscreen
- Optional Attachments Screw elevator, dust extractor, printer
